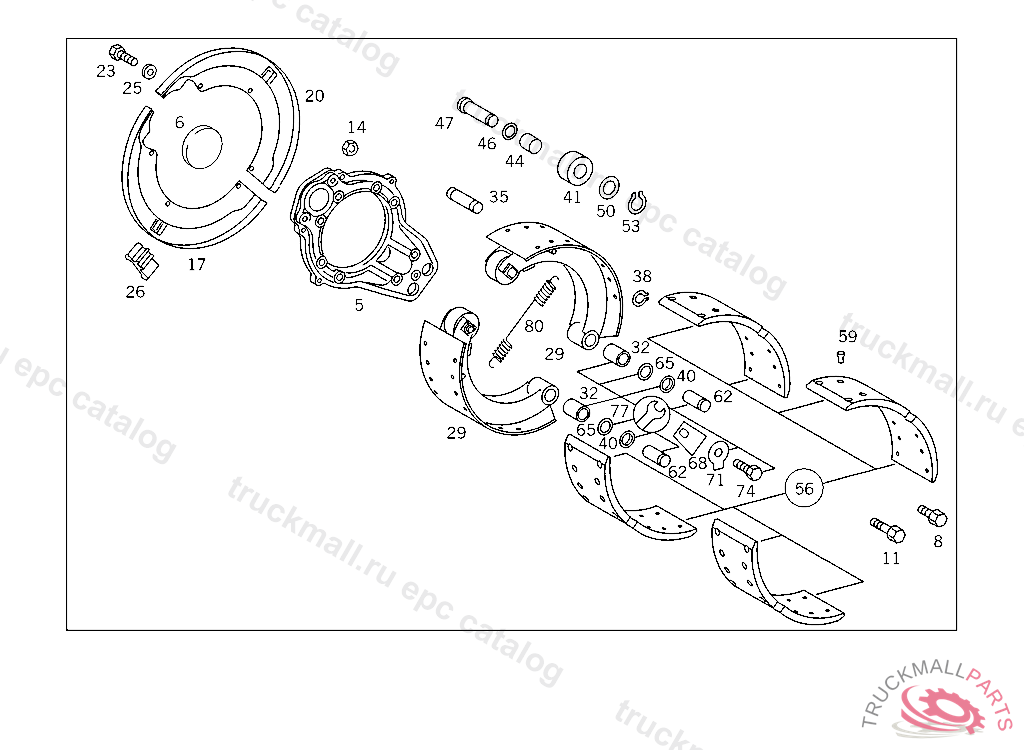

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR),739692
8
SCREW BEARING BRACKET TO BRAKE ANCHOR
11
SCREW REAR WHEEL BRAKE TO REAR AXLE
14
NUT BEARING BRACKET TO BRAKE ANCHOR
14
NUT WITH COLLAR
17
PROTECTIVE PLATE LEFT FRONT AND RIGHT REAR
20
PROTECTIVE PLATE LEFT REAR AND RIGHT FRONT
23
SCREW , Replaced By: N304017010042
26
PLUG PROTECTIVE PLATE
26
PLUG
29
BRAKE SHOE CAST VERSION
32
BUSHING BRAKE SHOE BEARING
32
BUSHING ,669845
32
BUSHING ,669845
35
PIN RELEASE SPRING
38
LOCK RING
41
ROLLER , Replaced By: A3014200039, +002A0039971548
44
BUSHING BRAKE SHOE ROLLER
44
BUSHINGTO 301 420 00 39
47
PIN BRAKE SHOE ROLLER
50
FITTED WASHER BRAKE SHOE ROLLER
50
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000988017100
53
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
56
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
56
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
56
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
59
RIVET
59
RIVET
59
RIVET
62
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
65
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
68
LOCK BRAKE SHOE TO BRAKE ANCHOR
74
SCREW , Replaced By: N910106010018
77
REPAIR KIT BRAKE SHOE ROLLER
80
SPRING (RELEASE SPRING)
