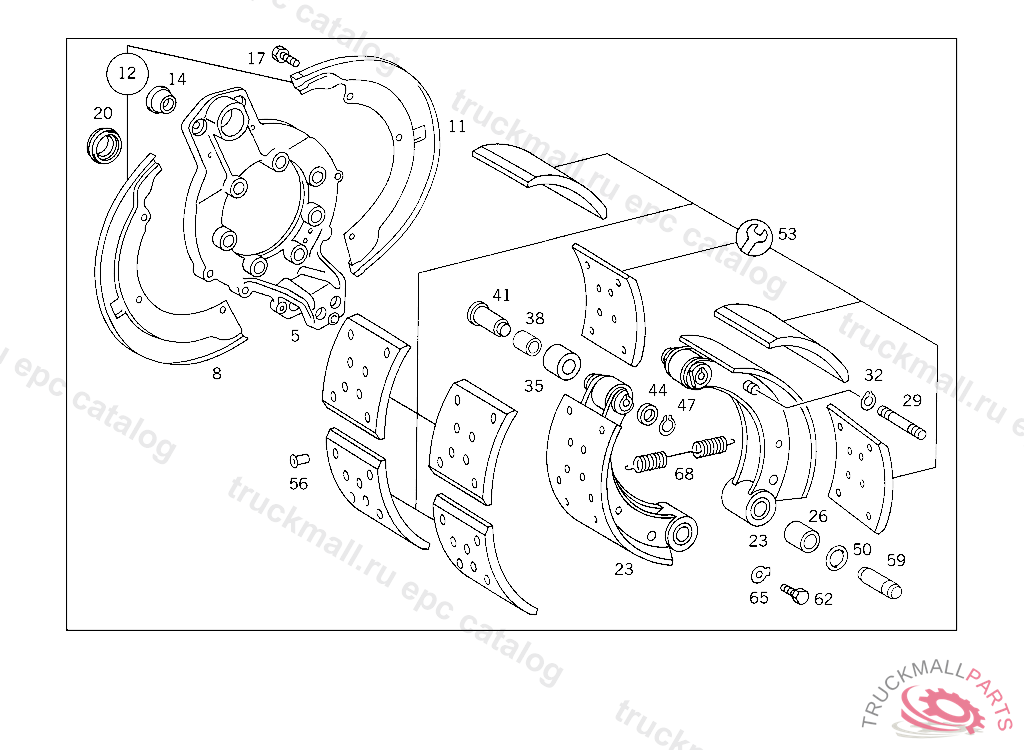

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
8
PROTECTIVE PLATE , Replaced By: A6954200044
11
PROTECTIVE PLATE , Replaced By: A6954200044
12
PROTECTIVE PLATE PARTS KIT
14
PLUG
17
SCREW BRAKE SHOE TO BRAKE ANCHOR PLATE TO 302 420 11 16
20
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
23
BRAKE SHOE LESS LINING, ONLY REPLACEABLE BY PAIRS
23
BRAKE SHOE
26
BUSHING ,669845
26
BUSHING BRAKE SHOE BEARING
26
BUSHING ,669845
29
PIN RELEASE SPRING
32
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
35
ROLLER , Replaced By: A3014200039, +002A0039971548
38
BUSHING
38
BUSHING
41
PIN , Replaced By: A3074200339
44
FITTED WASHER BRAKE SHOE ROLLER
47
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
50
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
53
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 16.7 MMX160 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
53
BRAKE LINING , Replaced By: A6954230610
53
BRAKE LINING , Replaced By: A6954230710
53
BRAKE LINING , Replaced By: A6954230810
53
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
56
RIVET BRAKE LINING 15 MM
56
RIVET , Replaced By: A3079900197
59
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
62
SCREW COLD START SYSTEM TO BRACKET
65
LOCK BRAKE SHOE TO BRAKE ANCHOR
68
SPRING (RELEASE SPRING)
