Поз.
Артикул
Описание
5

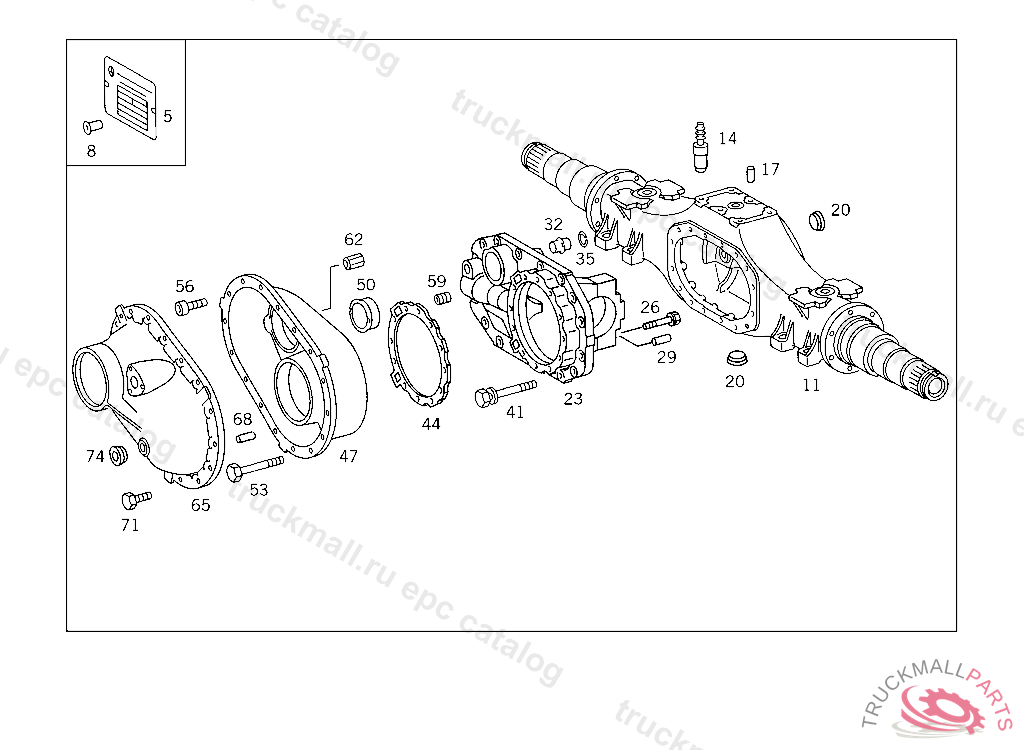

UNIT IDENTIFICATION PLATE , MAN AXLE
8
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
11
AXLE CASING CAST VERSION
14
FITTING AXLE BREATHING
14
FITTING BLEEDING
20
SCREW PLUG BELL HOUSING
20
SCREW PLUG , Replaced By: A0009972632
23
AXLE HOUSING DIFFERENTIAL GEAR BEARING, MAN AXLE
26
SCREW BEARING COVER TO AXLE HOUSING
29
CYLINDRICAL PIN , Replaced By: N000007008101
29
CYLINDRICAL PIN
32
PIN AXLE HOUSING
35
SNAP RING
41
SCREW REAR AXLE HOUSING TO AXLE CASING M12 X 35
41
SCREW BRACKET TO BRACKET
41
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
44
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
44
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
44
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
44
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
47
HOUSING (PINION HOUSING)
50
SEAL HOLDER PINION HOUSING TO AXLE HOUSING
53
SCREW PINION HOUSING TO AXLE HOUSING
56
SCREW IMPELLER TO COVER
56
SCREW , Replaced By: N000912010223
59
THREADED INSERT
62
PIN PINION HOUSING TO AXLE HOUSING
65
COVER THROUGH DRIVE
68
CYLINDRICAL PIN FOR REPAIR PURPOSES ONLY, 101-103,110-116,119,121,122 UP TO IDENT NO. 4 477510 FROM IDENT NO. SEE MICROFICHE 750.5 130 UP TO IDENT NO. 4 758189 FROM IDENT NO. SEE MICROFICHE 750.2
71
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
74
SCREW PLUG BELL HOUSING
999
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
999
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
999
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
