Mercedes N304017006018 - Болт

LS 8 765.882

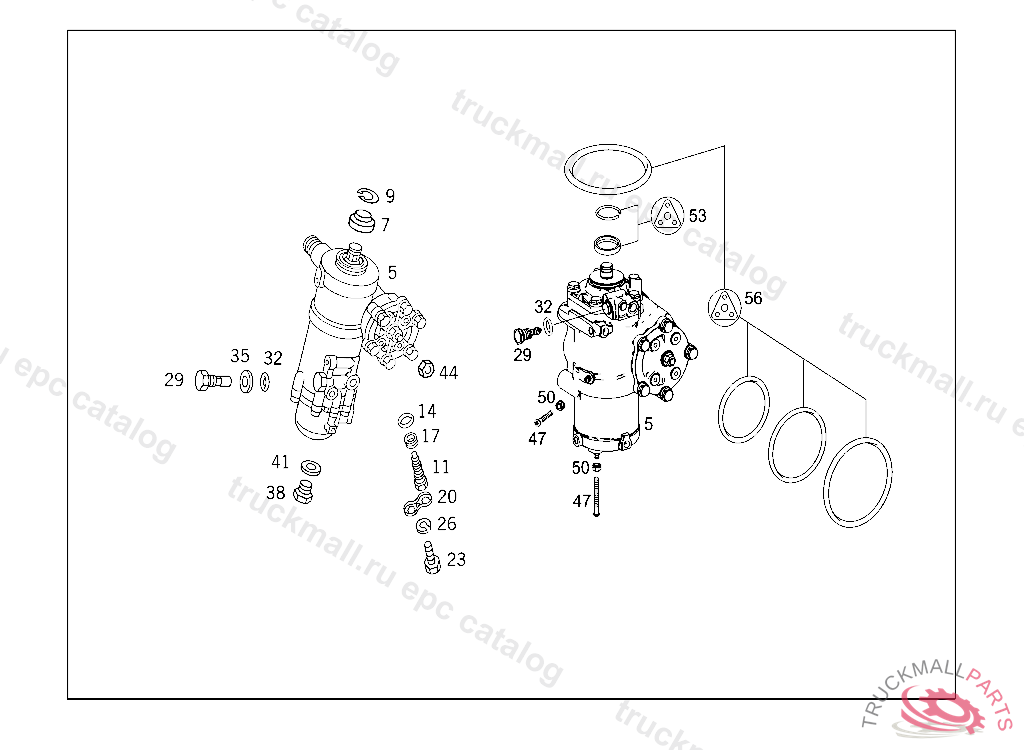

46 MERCEDES-BENZ POWER STEERING - 100 POWER STEERING

Поз.
Артикул
Описание
5
A6464600900
STEERING BOX ASSEMBLYLS 8
7
A0169972147
SEAL RING STEERING NUT BEARING,4 282006 385.322,323,325,328332,333,335,338372,373,375,377383,385,387390,391,392,395,397,399523,525,528
7
A0149976947
SEAL RING STEERING NUT BEARING
9
A0009949241
LOCK REVERSE IDLER SHAFT
11
A3164600284
VALVE LIMITATION
14
A0019975748
SEAL RING FRONT
17
A3164660260
SEAL RING REAR
20
A3874660073
LOCK VALVE IN STEERING BOX
23
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
29
A9704601184
VALVE PRESSURE LIMIT 130 BAR, M 18X1,5
29
A6164601584
VALVE PRESSURE LIMIT 130BAR, NOT CONTAINED IN PACK. CONTENTS OF: A6464602100
32
A6169970545
SEAL RING PRESSURE LIMIT
35
N007603022102
SEAL RING LINE CONNECTION
38
N007604010102
SCREW PLUG 4/2-WAY VALVE
38
N007604010108
SCREW PLUG AIR DEHYDRATOR
41
N007603010110
SEAL RING PNEUMATIC VALVE
44
N074361014204
NUT COVER TO STEERING BOX
