Mercedes
VAN
214, 208CDI, 211CDI, 213CDI, 216CDI
902.662 FROM IDENT-NR. R337627, 5337627, A901274
31 FRAME/TRAILER COUPLING
380 SIDE AND CROSS MEMBERS,AT REAR

Mercedes A9023100118 - ЛОНЖЕРОН

214, 208CDI, 211CDI, 213CDI, 216CDI 902.662 FROM IDENT-NR. R337627, 5337627, A901274

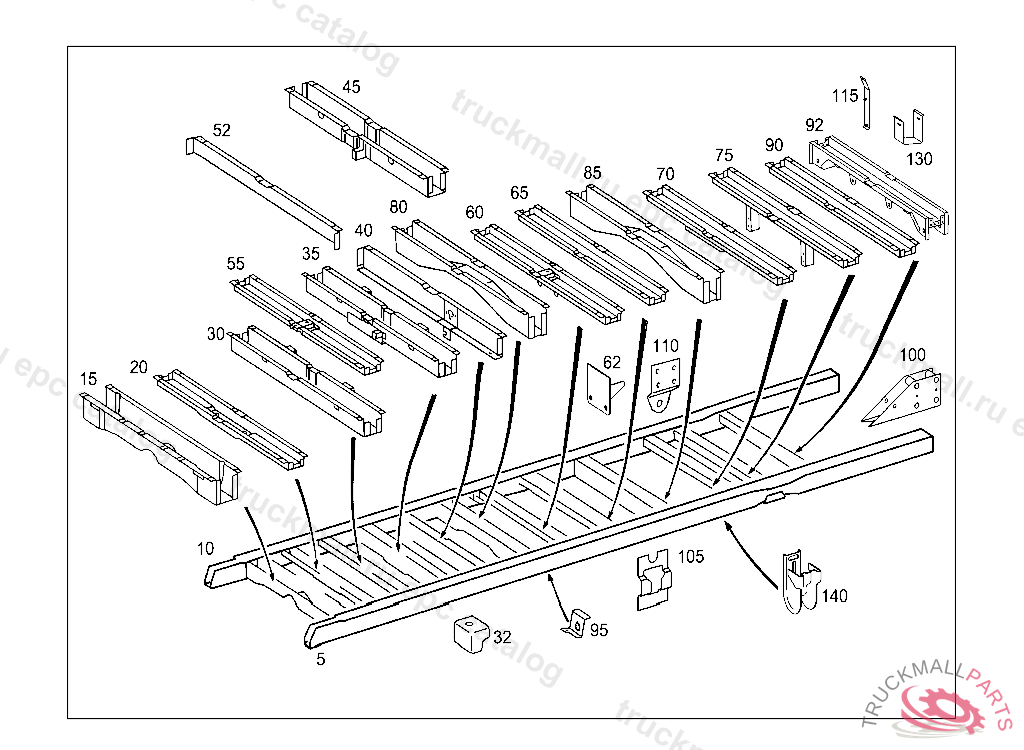

31 FRAME/TRAILER COUPLING - 380 SIDE AND CROSS MEMBERS,AT REAR

Поз.
Артикул
Описание
5
A9023100118
SIDE MEMBER LEFT, WHEELBASE 3550
5
A9013100318
SIDE MEMBER LEFT, WHEELBASE: 3550
10
A9023100119
SIDE MEMBER
10
A9013100219
SIDE MEMBER RIGHT, WHEELBASE: 3550
15
A6903107737
CROSS MEMBERNO.3
15
A9023100137
CROSS MEMBER"3"
15
A6903100837
CROSS MEMBER"3", TO BE PROCURED FROM MBA ONLY
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
20
A9013101737
CROSS MEMBER"3A"
30
A9043100436
CROSS MEMBER"4"
30
A9013100636
CROSS MEMBERNO.4.1
30
A9013100536
CROSS MEMBER WITH SEAT MOUNTING "4.2"
35
A6903101137
CROSS MEMBER WITH SEAT MOUNTING "4.3", TO BE PROCURED FROM MBA ONLY
35
A9013100336
CROSS MEMBERNO.4.3
35
A6903107036
CROSS MEMBERNO.4.3
35
A9013100036
CROSS MEMBER"4.5"
40
A9013100337
CROSS MEMBER
45
A9013120325
CROSS MEMBER5A, NO LONGER AVAILABLE
52
A9013120325
CROSS MEMBER5A, NO LONGER AVAILABLE
55
A9013100737
CROSS MEMBERNO.6A.1
62
A6904700181
BRACKET AT CROSS MEMBER "6.3", TO BE PROCURED FROM MBA ONLY
70
A9013100537
CROSS MEMBER
75
A9013102037
CROSS MEMBERNO.6A.5
80
A9013101537
CROSS MEMBER"6.7"
85
A9023100337
CROSS MEMBER"6.5.2"
90
A9013120021
CROSS MEMBERNO.7
92
A6903101737
CROSS MEMBER IN FRONT OF CROSS MEMBER NO.: "7", 20040331 TO BE PROCURED FROM MBA ONLY
92
A6903200275
SUPPORT IN FRONT OF CROSS MEMBER NO.: "7", 20040331 TO BE PROCURED FROM MBA ONLY
95
A9014280840
BRACKET BRAKE HOSE TO FRAME
100
A9013100057
PLATE FRAME TRUSSING
105
A9014750740
BRACKET
110
A9043260147
SHACKLE
115
A9016302636
BRACKET
130
A9013122240
BRACKET
140
A9015800159
CLAMP JACK, TO BE ADAPTED DURING ASSEMBLY
