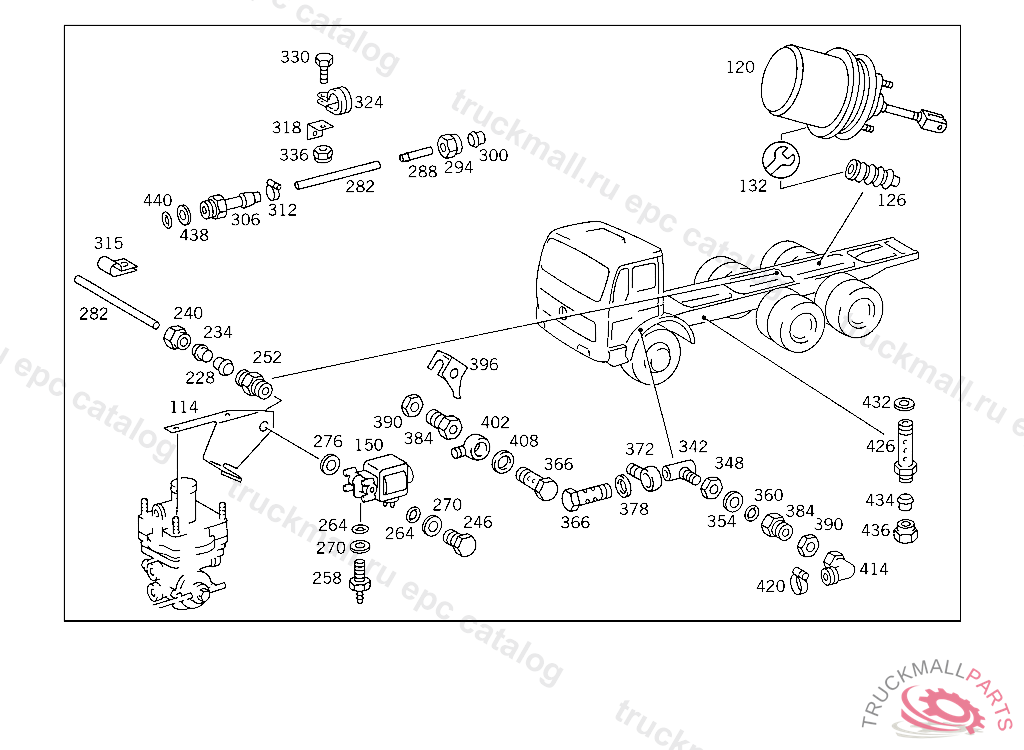

Поз.
Артикул
Описание
114
BRACKET HOSDE TO FRAME
120
WHEEL BRAKE CYLINDER
126
CUPWABCO
126
CUP , Replaced By: A0004215286
132
REPAIR KIT DIAPHRAGM PART TO 007 420 65 18, 012 420 00 18, WABCO
150
VALVE P.T.O.
228
BUSHING COMPRESSED-AIR-LINE PLUG-CONNECTION
234
GLAND LINE CONNECTION
240
UNION NUT LINE CONNECTION
246
SCREW PLUGROCKINGER,TYP 59 U150
246
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
252
FITTING LINE CONNECTION, Replaced By: N000000006446
252
FITTING LINE CONNECTION
258
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
264
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
270
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
270
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
276
WASHER
282
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
288
FITTING DIAPHRAGM CYLINDER,CONNECTION:
294
UNION NUT LINE CONNECTION
294
UNION NUT LINE CONNECTION, Replaced By: N000000006239
300
GLAND , Replaced By: A0019901967
300
SEAL CONE LINE CONNECTION
306
FITTING DIAPHRAGM CYLINDER,CONNECTION:
312
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
315
CLAMP BRAKE HOSE
315
CLAMP BRAKE HOSE
318
BRACKET BRACKET TO CROSS MEMBER
318
BRACKET , Replaced By: A3974290140
318
BRACKET , Replaced By: A6205243040
324
CLAMP BRAKE HOSE BRACKET
330
SCREW PUMP TO BRACKET
330
SCREW , Replaced By: N304017006016
336
NUT , Replaced By: N913004006001
336
NUT PUMP TO BRACKET
342
T-FITTING , Replaced By: A6559900070, +002A0009905168, +002N007603022403
342
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
348
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
354
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
354
THRUST RING CHECK VALVE TO AIR RESERVOIR
360
O-RING CHECK VALVE TO AIR RESERVOIR
366
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
372
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
372
BANJO UNION , Replaced By: N915052009009
378
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
384
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
390
NUT BRACKET TO SIDE MEMBER
396
LOCK BRAKE HOSE TO ANGLE
402
BANJO UNION , Replaced By: N915052009009
402
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
408
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
414
ELBOW FITTING DELIVERY LINE TO PUMP
420
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
426
HOLLOW SCREW FITTING AT P.T.O.SHIFTING CYLINDER
426
HOLLOW SCREW , Replaced By: N915040008100
432
SEAL RING SCREW PLUG
434
GLAND LINE CONNECTION
436
UNION NUT
438
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
440
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
PLUG
999
SLEEVE LINE CONNECTION
