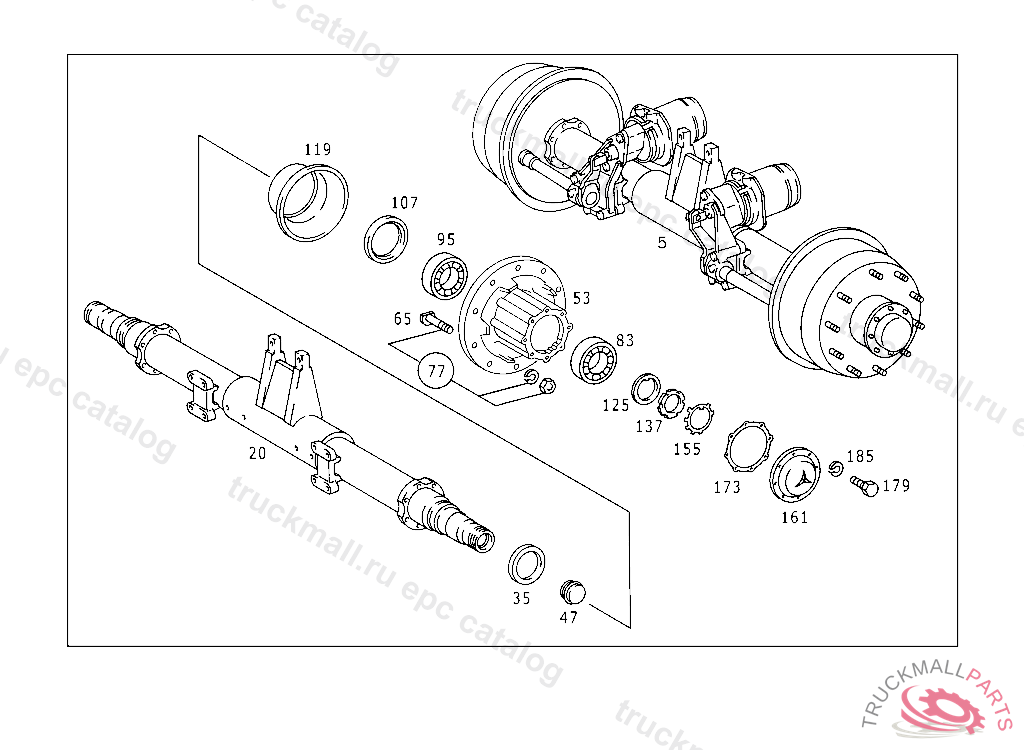

Поз.
Артикул
Описание
5
TRAILING AXLE WITH BRAKES
20
AXLE BEAM
35
THRUST RING
35
THRUST RING AXLE TUBE TO AXLE HOUSING
47
PLUG LEFT AND RIGHT AXLE TUBES
53
WHEEL HUB , Replaced By: A3453560101
53
WHEEL HUB , Replaced By: A3853560101
53
WHEEL HUB , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
65
WHEEL MOUNTING BOLT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
65
WHEEL MOUNTING BOLT , Replaced By: A3814010571
77
PIN , Replaced By: A3644000074
77
PIN (PARTS KIT),WHEEL MOUNTING, WHEEL OPENING: 27 MM
77
PIN (PARTS KIT),WHEEL MOUNTING, WHEEL OPENING: 30 MM
83
TAPERED ROLLER BEARING
83
TAPERED ROLLER BEARING OUTSIDE
83
TAPERED ROLLER BEARING , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
83
TAPERED ROLLER BEARING OUTSIDE
83
TAPERED ROLLER BEARING OUTSIDE
95
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
95
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
95
TAPERED ROLLER BEARING
95
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
107
SEAL RING
107
SEAL RING , Replaced By: A0109978147
107
SEAL RING , MUST NO LONGER BE INSTALLED
119
OIL COLLECTOR
119
OIL COLLECTOR WHEEL HUB
125
SPACER WASHER WHEEL HUB TO REAR AXLE TUBE
137
GROOVED NUT HUB TO REAR AXLE TUBE
137
NUT , Replaced By: A3853560026
155
LOCK PLATE WHEEL HUB TO REAR AXLE TUBE
161
HUB CAP FRONT WHEEL HUB
173
GASKET , Replaced By: A9433340080
179
SCREW CLAMP TO BRACKET AND TO PIPE
185
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
DOWEL PIN
999
UNIT IDENTIFICATION PLATE
