Поз.
Артикул
Описание

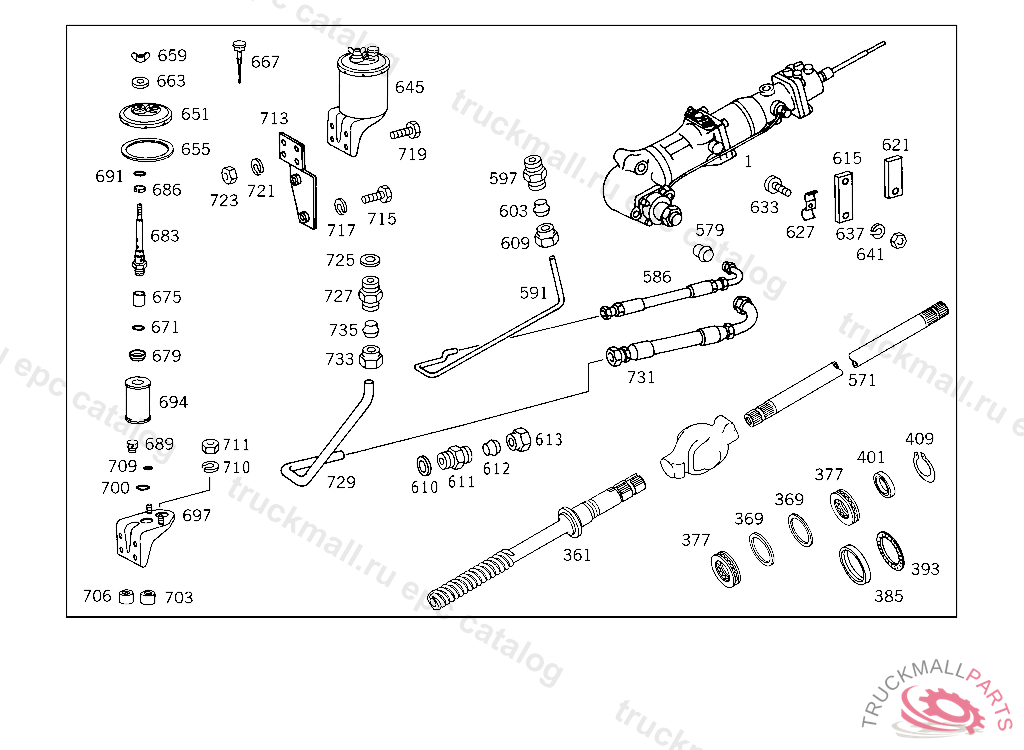

1
STEERING BOX ASSEMBLY LESS PITMAN ARM
361
STEERING WORM
361
STEERING WORM
369
WASHER
377
THRUST BALL BEARING
385
BALL RACE
393
NEEDLE BEARING
401
SEAL RING , Replaced By: A0049976146
401
SEAL RING30X40X7 MM
401
SEAL RING WITH DUST LIP 30X40X7 MM
409
LOCK RING , Replaced By: A0009949241
409
LOCK REVERSE IDLER SHAFT
571
STEERING SHAFT
571
STEERING SHAFT BOTTOM
571
STEERING SHAFT
571
STEERING SHAFT BOTTOM
579
SEAL CONE
586
OIL LINE FROM PUMP TO STEERING
591
LINE , Replaced By: A0004290901
591
LINE , Replaced By: A0004290901
591
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
591
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
597
SCREW-IN FITTING DELIVERY LINE TO STEERING
603
CUTTING RING. GLAND LINE CONNECTION
609
UNION NUT OIL LINE
609
NUT. UNION NUT LINE CONNECTION
610
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
610
SEAL RING VALVE TO VALVE,K 025179
611
SCREW-IN FITTING RETURN LINE TO STEERING
612
GLAND LINE CONNECTION
613
UNION NUT LINE CONNECTION
615
CLAMPING PIECE
621
CLAMPING PIECE
627
CLAMP
633
SCREW SHIFT CASE TO SLOTTED GATE
637
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
641
NUT BALL PIVOT TO LEVER
645
TANK , Replaced By: A0004662002
645
TANK OIL TANK,12068000, 344.030,031,032,03312009117, 345.001,002,003,300
651
COVER , Replaced By: A0004661305
651
COVER , Replaced By: A0004664405
655
SEAL RINGTO 000 466 38 02
659
NUTTO 000 466 38 02
663
WASHER , 034 UP TO CHASSIS A 004589
663
WASHER , 034 UP TO CHASSIS A 004589
667
OIL DIPSTICK
671
SEALING CORD11,5X3 MM
671
SEALING CORD11,5X3 MM
675
SPRING , Replaced By: A0009870643
675
RUBBER SLEEVETO 000 466 38 02
675
RUBBER SLEEVETO 000 466 38 02
679
CENTERING RINGTO 000 466 38 02
683
FILTER CARRIERTO 000 466 03 02
683
LINETO 000 466 20 02
686
SPACER TUBETO 000 466 38 02
689
FITTING , Replaced By: A0004660571
689
FITTING , 993034
691
WASHER , Replaced By: A9402680552
691
SPACER WASHERTO 000 466 38 02
694
FILTER
694
FILTER
697
BRACKET , Replaced By: A0004660640
697
BRACKET
700
SEALING CORD , Replaced By: A0059970848
700
SEAL RING , Replaced By: A0059970848
700
SEAL RINGTO 000 466 38 02
700
SEAL RINGTO 000 466 38 02
703
FITTING ,12068000, 344.030,031,032,03312009117, 345.001,002,003,300
706
CONNECTOR ,12068000, 344.030,031,032,03312009117, 345.001,002,003,300
709
SEAL RING , Replaced By: A0099970145
709
SEAL RING
710
LOCK WASHER
711
NUT
713
BRACKET
713
BRACKET
715
SCREW RUBBER MOUNTING TO ENGINE SUPPORT M 16X1.5X60
717
LOCK WASHER
719
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
721
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
723
NUT BRACKET TO SUPPORT AND TO END PIECE
725
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
727
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
729
LINE , Replaced By: A3224604524
729
LINE
729
LINE
731
LINE
731
LINE
733
UNION NUT LINE CONNECTION, Replaced By: N000000006243
735
GLAND
999
WIRE
999
CYLINDRICAL PIN
999
SPACER RING
999
FILTER ELEMENT , Replaced By: A0000901451
999
BRACKET
999
BRACKET , Replaced By: A3524700281
999
SCREW
999
SHIM
999
BRACKET LEAK RETURN LINE TO RETURN LINE, 10 UP TO CHASSIS 631933, EXCEPT FOR 500001-599999, 20 UP TO CHASSIS 671516
999
LINE
999
LINE FROM FUEL FILTER TO INJECTION PUMP
999
LINE , Replaced By: A3404702685
999
GASKET FROM TANK TO FEED PUMP,PART II
999
FILTER SUPPORT
999
REINFORCEMENT
999
LINE FROM OIL TANK TO PUMP
999
LINE FROM STEERING GEAR TO OIL TANK 15 MM
999
LINE15 MM
999
STEERING BOX ASSEMBLY LESS PITMAN ARM
999
SPRING
999
PLUG
999
LOCK1.2 MM
999
LOCK1.1 MM
999
DOWEL PIN
999
DOWEL PIN , Replaced By: A0009911061
999
HOLLOW SCREW
999
FUEL FILTER , Replaced By: A0014772901
999
PIN
999
NUT
999
LINE , FROM STEERING 27219
999
SEAL RINGTO 000 466 03 02
999
REINFORCEMENT , Replaced By: A0004660095
999
INSULATING PART
999
SPACER WASHER0.30 MM
999
SPACER WASHER0.15 MM
999
SPACER WASHER0.12 MM
999
SPACER WASHER0.10 MM
999
CONTACT SUPPORT
999
BALL RACE
999
RING
999
PISTON OVERSIZE 0.1 MM, ONLY FOR EXPORT PURPOSE,AS PER SERVICE-INFORMATION 30/32 OF NOV.1965
999
WASHER
999
PIN
999
PISTON
999
PIN , Replaced By: A0004620474
999
PIN
999
SPACER TUBE
999
ROLLER
999
BEARING RING
999
UNIVERSAL JOINT YOKE
999
SPACER WASHER3,1 MM
999
SPACER WASHER2.9 MM
999
SPACER WASHER2.7 MM
999
SPACER WASHER *** 2.5 MM
999
BOX UPPER PART
999
BOX , Replaced By: A0004612901, +001A0004669665
999
BOX
999
COVER WITH NEEDLE BEARING
999
WEB
999
VALVE *** 11.33 MM, 335.002-004/013 UP TO CHASSIS 006235,335.103/104/113 UP TO CHASSIS 002744,336.UP TO CHASSIS 600307,339.UP TO CHASSIS 600070
999
WEB
999
SPACER TUBE
999
WEB , Replaced By: A0004610295
999
SCREW
999
STEERING WORM
999
STEERING WORM
999
FLANGE
999
STEERG. WORM SECTOR SHAFT
999
VALVE (OVERFLOW VALVE)
