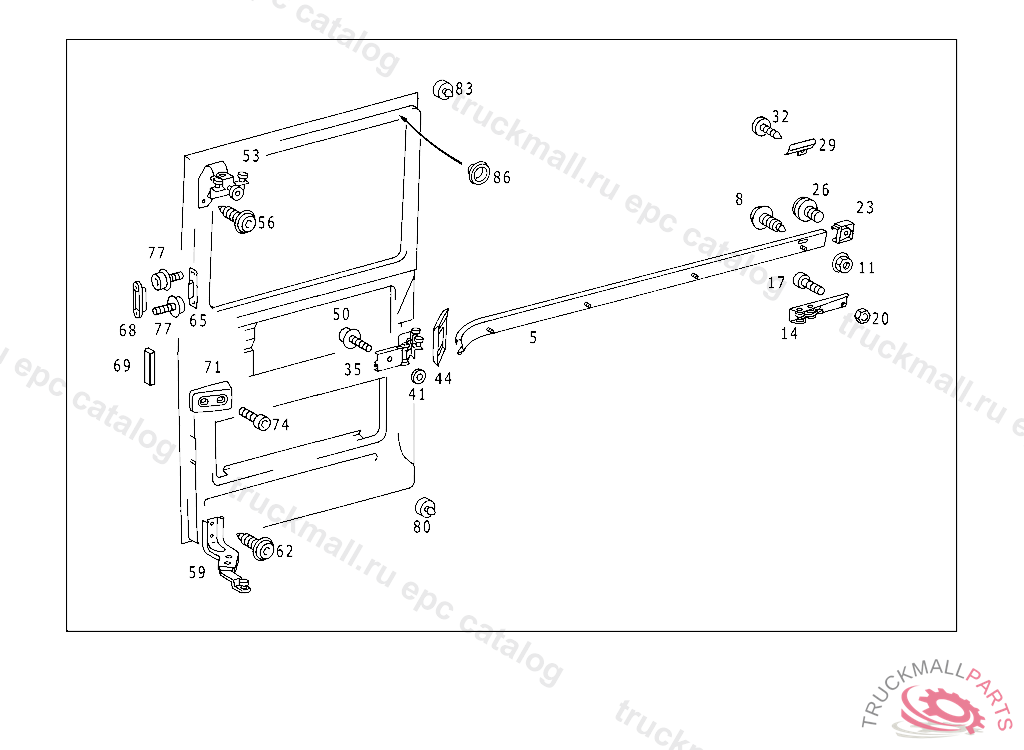

Поз.
Артикул
Описание
5
RAIL LEFT,P 718449
5
RAIL LEFT,P 718450
5
RAIL RIGHT, TO BE ADAPTED DURING ASSEMBLY
5
RAIL , Replaced By: A9017600627
8
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0009849729
8
SCREW , Replaced By: N000000002202
8
SCREW BRACKET TO SUPPORT M 6X15
8
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
11
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
11
NUT , Replaced By: N913023006001
11
NUT , Replaced By: N910112006001
14
CATCH , Replaced By: A9017600188
14
CATCH , Replaced By: A9017600088
14
CATCH RIGHT
17
SCREW BRACKET TO BRACKET
20
NUT
23
CAP RIGHT
23
CAP LEFT
26
HEXALOBULAR BOLT. SCREW
29
DOOR CHECK LEFT TOP,P 633291
29
DOOR CHECK RIGHT TOP,P 633291
32
SHEET METAL SCREW
35
DOOR SLIDE MECHANISM LEFT
35
DOOR SLIDE MECHANISM RIGHT
35
DOOR SLIDE MECHANISM , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9017601147
35
DOOR SLIDE MECHANISM , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9017601247
35
DOOR SLIDE MECHANISM , Replaced By: A9017600047
35
DOOR SLIDE MECHANISM , Replaced By: A9017601347
41
WASHER , Replaced By: N007349010007
41
WASHER STRUT TO CROSS MEMBER
44
SEAL DOOR SLIDE MECHANISM TO DOOR
50
SCREW DOOR SLIDE MECHANISM TO DOOR
53
DOOR SLIDE MECHANISM LEFT TOP
53
DOOR SLIDE MECHANISM RIGHT TOP
53
DOOR SLIDE MECHANISM , Replaced By: A9017600947
53
DOOR SLIDE MECHANISM , Replaced By: A9017601047
56
SCREW DOOR SLIDE MECHANISM TO DOOR
59
BRACKET LEFT BOTTOM
59
BRACKET RIGHT BOTTOM
62
HEXALOBULAR BOLT MOUNTING PARTS M8X16
62
SCREW , Replaced By: N000000002575
65
DETENT TOP AND BOTTOM,LEFT AND RIGHT
68
SLIDE
68
SLIDE , Replaced By: A9017660161
69
BUFFER
71
TRAVEL LIMITER
71
STOP , Replaced By: A6907600029
74
SCREW BRACKET MOUNTING
77
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
77
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0009849729
77
SCREW , Replaced By: N000000002202
77
SCREW BRACKET TO SUPPORT M 6X15
80
RUBBER BUFFER
80
RUBBER BUFFER AT C-PILLAR,BOTTOM
83
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1119871540
86
EXPANSION PLUG
86
LOCKING CAP , Replaced By: A0009873844
