Поз.
Артикул
Описание

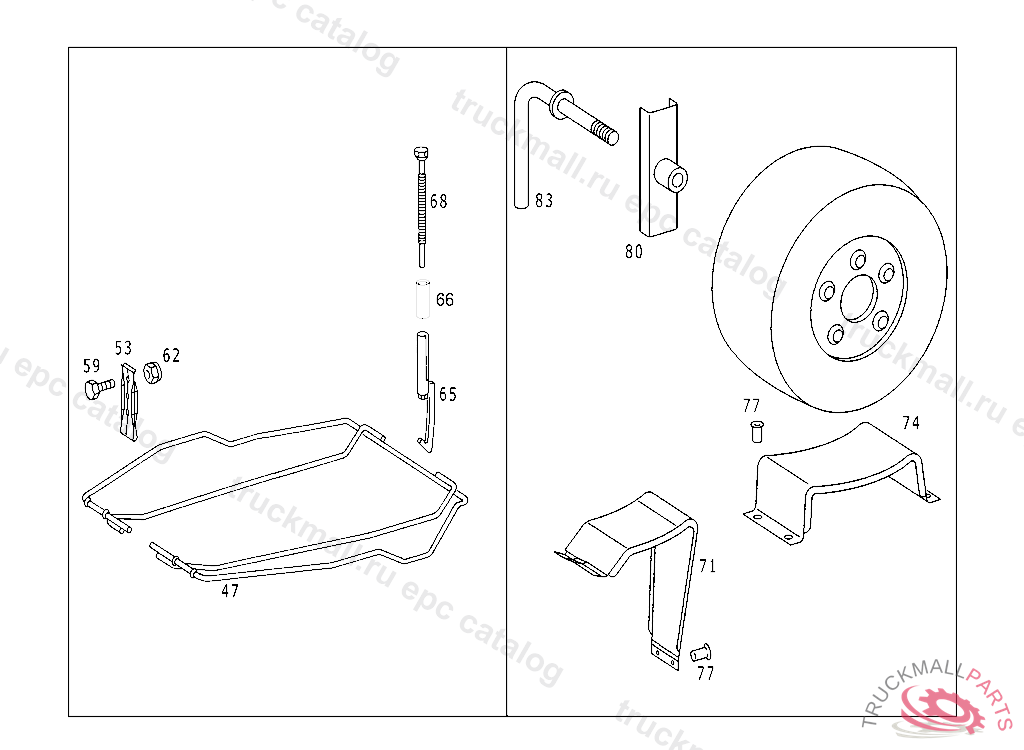

47
MOUNTING BOW SPARE WHEEL CARRIER TO CROSS MEMBER
53
SHACKLE CARRIER TO BRACKET
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
SCREW BRACKET TO CHARGING AIR INTERCOOLER
62
NUT BRACKET TO SIDE MEMBER
65
CLAMPING SCREW SPARE WHEEL CARRIER TO CROSS MEMBER 4025 MM, P 691610 R 000001
65
CLAMPING SCREW
65
SPACER TUBE SPARE WHEEL CARRIER TO CROSS MEMBER
65
CLAMPING SCREW SPARE WHEEL CARRIER TO CROSS MEMBER,P 691609
66
SPACER TUBE SPARE WHEEL CARRIER TO CROSS MEMBER,P 691609
68
SCREW SPARE WHEEL CARRIER TO CROSS MEMBER,P 691609
68
SCREW SPARE WHEEL CARRIER TO CROSS MEMBER
68
SCREW , Replaced By: A9014030571
68
SCREW SPARE WHEEL CARRIER TO CROSS MEMBER 4025 MM, P 691610 R 000001
71
TAKE-UP DEVICE
74
PART NAME MISSING. TAKE-UP DEVICE
77
BLIND RIVET. RIVET
77
RIVET FUEL TANK MOUNTING 4,8X10,29
77
RIVET , Replaced By: N910002004214
80
BRACKET SPARE WHEEL
83
HOOK BOLT. SCREW SPARE WHEEL
