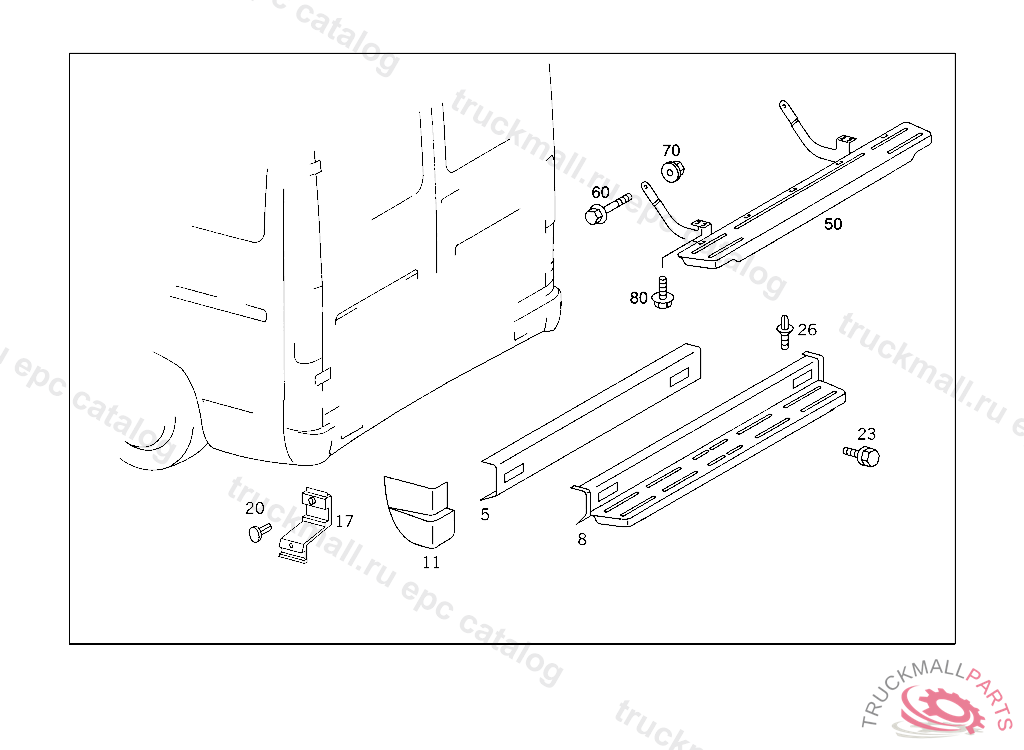

Поз.
Артикул
Описание
5
REAR BUMPER FACE BAR BUMPER,CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
5
REAR BUMPER FACE BAR. REAR BUMPER
8
REAR BUMPER FACE BAR WITH STEP, CENTRE REAR
11
REAR BUMPER FACE BAR. REAR BUMPER RIGHT, TO BE PAINTED PRIOR TO INSTALLATION
11
REAR BUMPER FACE BAR LEFT
11
REAR BUMPER FACE BAR. REAR BUMPER LEFT, TO BE PAINTED PRIOR TO INSTALLATION
11
REAR BUMPER FACE BAR. REAR BUMPER RIGHT
17
BRACKET LEFT
17
BRACKET RIGHT
20
GUIDE
23
SCREW
26
RIVET FASTENING FOR LINING
50
RUNNING BOARD WHEELBASE: 3000MM
60
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
70
NUT BRACKET TO SIDE MEMBER M12X1.5
80
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
