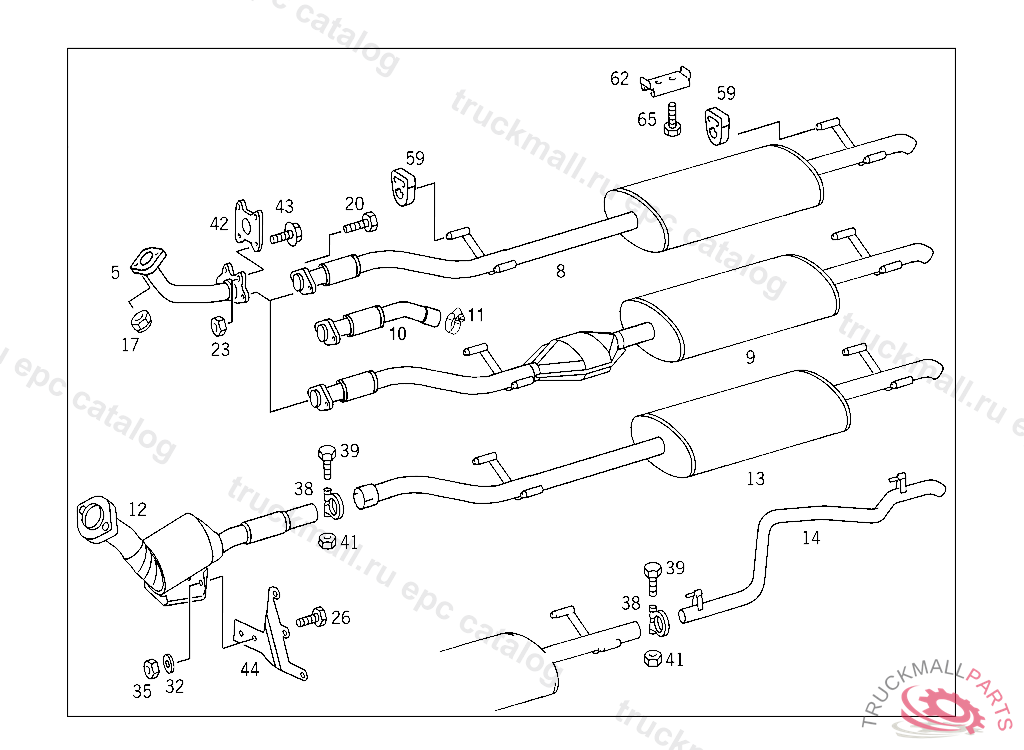

Поз.
Артикул
Описание
5
EXHAUST PIPE , Replaced By: A9014900519
5
EXHAUST PIPE FRONT
8
EXHAUST PIPE LESS CATALYST
8
EXHAUST PIPE ,P 541757, Replaced By: A9014901319, +001A9014903240, +001A9014920044, +006A0039900697
8
EXHAUST MUFFLER WITH PIPE LESS CATALYST, TO BE ADAPTED DURING ASSEMBLY
9
EXHAUST PIPE WITH CATALYST, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
9
EXHAUST MUFFLER WITH PIPE , TO BE ADAPTED DURING ASSEMBLY PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
EXHAUST PIPE REPAIR SOLUTION
11
PIPE CLAMP. CLAMP REPAIR SOLUTION
12
CATALYSTCODE-B: MS5
13
EXHAUST PIPECODE-B: MS5
14
EXHAUST PIPE REAR/WHEELBASE: 3000 MM
14
17
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
20
SCREW 3/2-WAY VALVE TO BRACKET
20
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
23
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
32
WASHER , Replaced By: N000125008443
32
WASHER EXHAUST MUFFLER TO STRAP
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
CLAMP
39
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
39
SCREW VALVE TO BRACKET M 8X60
39
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
41
NUT
41
NUT HORN TO BRACKET M8
42
BRACKET EXHAUST PIPE TO TRANSMISSION
43
SCREW SPEED SENSOR TO REAR AXLE
43
SCREW , Replaced By: N910143008000
44
BRACKET , Replaced By: A9014926741
44
BRACKET EXHAUST PIPE TO TRANSMISSION
59
SUSPENSION RING
62
BRACKET REAR EXHAUST PIPE TO FRAME
65
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
