Главная
›
Mercedes
›
VAN
›
SPRINTER 210 D,212 D
›
901.421
›
73 SIDE DOORS
›
025 REAR SIDE DOOR
Mercedes A9017300378 - Уплотнительная рама

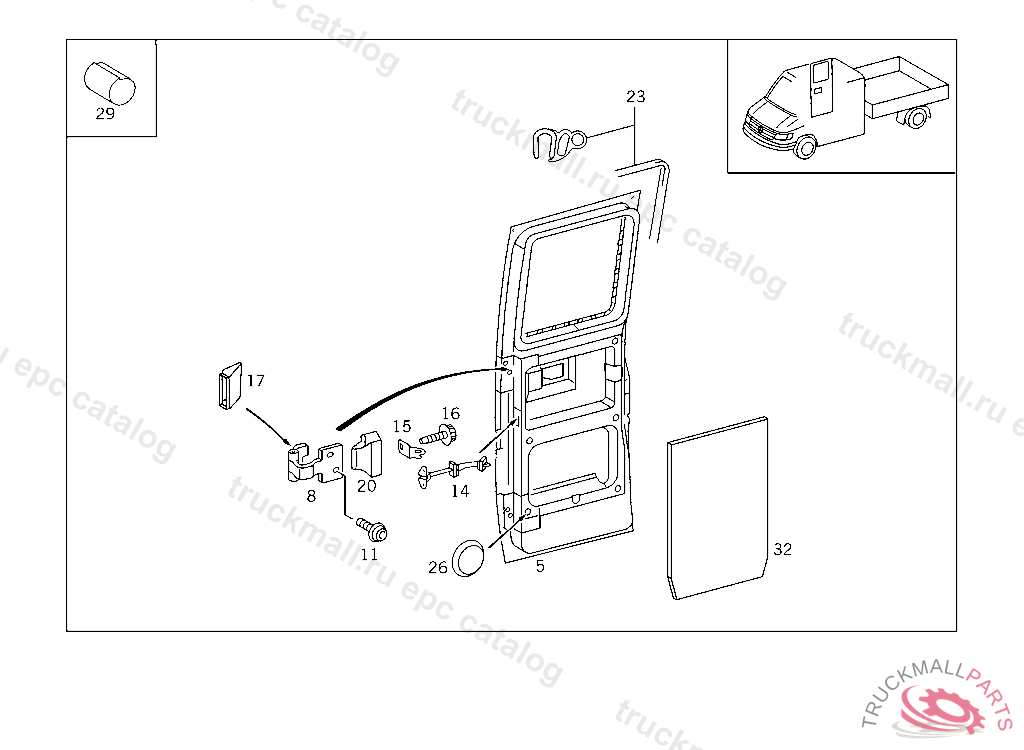

SPRINTER 210 D,212 D 901.421
73 SIDE DOORS - 025 REAR SIDE DOOR
Поз.
Артикул
Описание
5
A9017301005
DOOR SHELL
5
A9017300605
8
A9017300037
HINGE
11
A0009842429
SCREW FENDER TO BRACKET
11
A0019841429
SCREW ATTACHMENT GRAB HANDLE
14
A9017300016
15
A0007230514
BRACKET
16
A0009842229
SCREW. BOLT
17
A9017300278
17
A9017300078
20
A9017300178
20
A9017300378
WEATHERSTRIP HINGE
23
A9016970598
SEAL DOOR FRAME, Replaced By: A6906970398
23
A6906970398
SEAL DOOR FRAME
26
A6087660098
SEAL , Replaced By: A3819972186
29
A0005461575
CLAMP ELECTRIC CABLE MOUNTING
32
A9016822409
INSULATION FRONT SPACE, TO BE ADAPTED DURING ASSEMBLY
