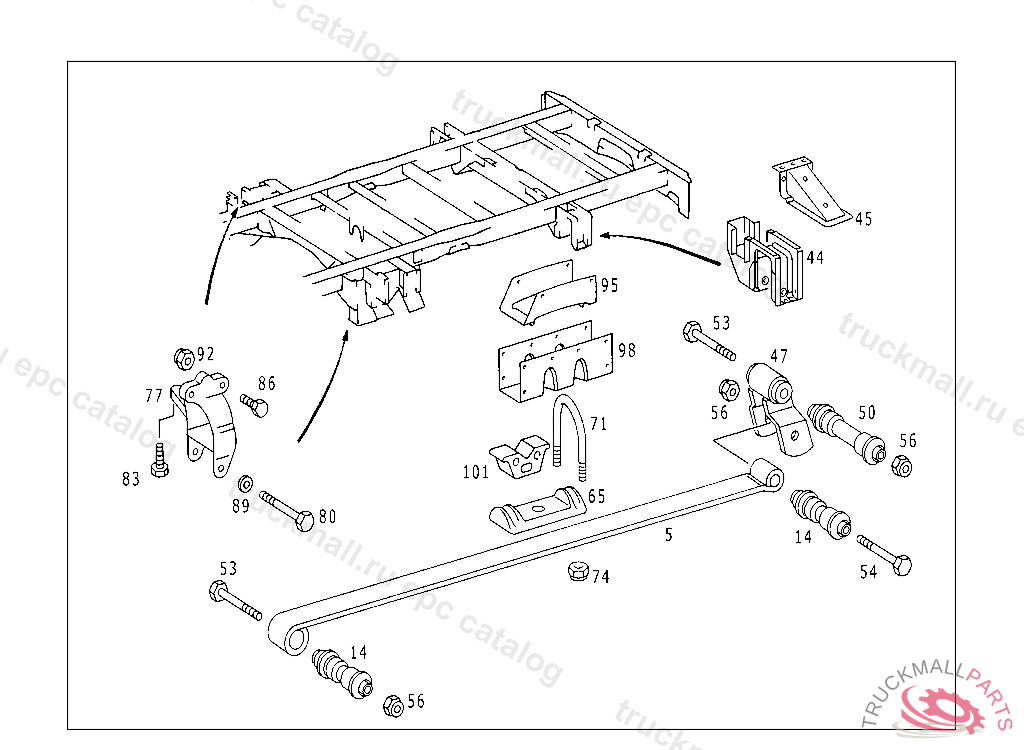

Поз.
Артикул
Описание
5
REAR SPRING22 MM
5
REAR SPRING , Replaced By: A9013201806
14
BUSHING
14
BUSHING REAR SPRING TO REAR SPRING FRONT AND REAR BRACKETS TO A 901 320 18 06
14
BUSHING REAR SPRING TO REAR SPRING FRONT BRACKET
44
SPRING BRACKET REAR-SPRING REAR BRACKET
45
COVER PLATE SPRING BRACKET
47
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
50
BUSHING SHACKLE TO REAR-SPRING REAR BRACKET
53
SPRING BOLT SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS
54
SCREW. BOLT SPRING SHACKLE
56
NUT BRACKET TO SIDE MEMBER M12X1.5
65
PLATE
71
CLAMP
74
COLLAR NUT F SHAFT AT CLAMP
77
SPRING BRACKET REAR SPRING FRONT BRACKET
80
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X100
83
SCREW ROD TO TRANSFER CASE M 14X65
83
SCREW , Replaced By: N308676014013
86
SCREW APPARATUS SUPPORT TO FRAME
89
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
92
NUT STEERING SUPPORT TO FRAME
95
BRACKET SPRING STOP
98
TRUSS SPRING STOP
101
RUBBER BUFFER. RUBBER BUMPER SPRING STOP
