Главная
›
Mercedes
›
VAN
›
SPRINTER 214
›
902.072
›

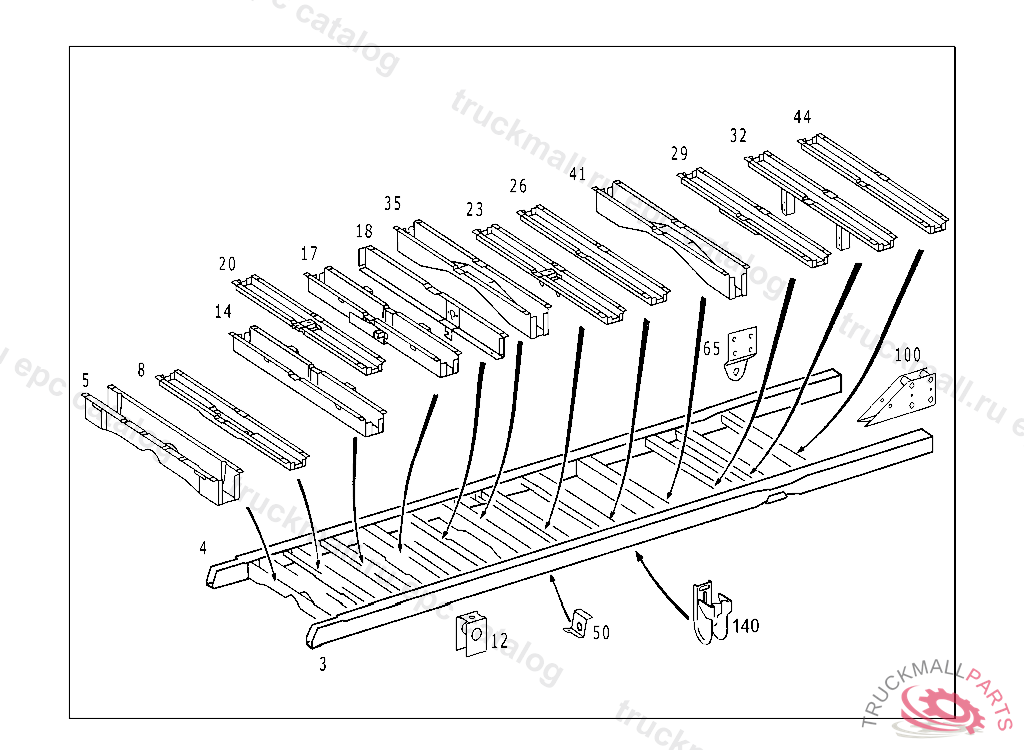

31 FRAME
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9023100118 - ЛОНЖЕРОН
SPRINTER 214 902.072
31 FRAME - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
3
A9023100118
SIDE MEMBER LEFT, WHEELBASE 3550
3
A9013100318
SIDE MEMBER LEFT, WHEELBASE: 3550
4
A9013100219
SIDE MEMBER RIGHT, WHEELBASE: 3550
4
A9023100119
SIDE MEMBER
5
A9023100137
CROSS MEMBER"3"
5
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
5
A9013100237
8
A9013101737
CROSS MEMBER"3A"
12
A9013101367
BODY SUPPORT , Replaced By: A9013102067
17
A9013100036
CROSS MEMBER"4.5"
20
A9013100737
CROSS MEMBERNO.6A.1
29
A9013100537
CROSS MEMBER
32
A9013102037
CROSS MEMBERNO.6A.5
41
A9023100337
CROSS MEMBER"6.5.2"
41
A9013101237
44
A9013120021
CROSS MEMBERNO.7
50
A9014280240
50
A9014280840
BRACKET BRAKE HOSE TO FRAME
65
A9043260147
SHACKLE
100
A9013100057
PLATE FRAME TRUSSING
140
A9015830259
CLAMP JACK
