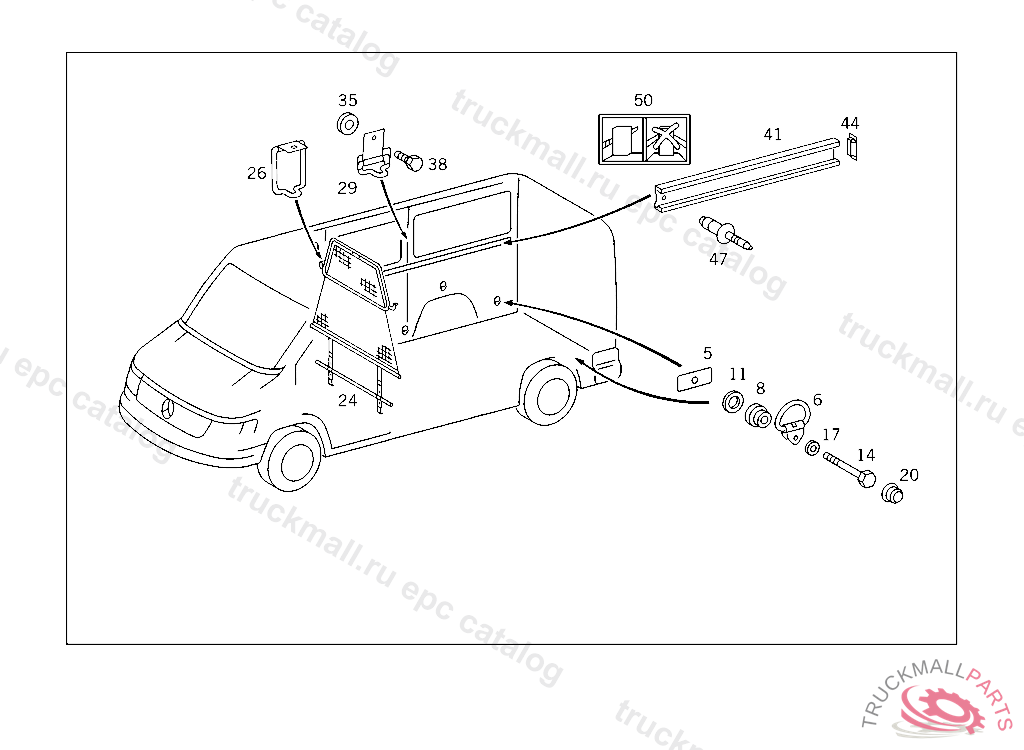

Поз.
Артикул
Описание
5
SHEET METAL NUT IN CASE OF SUBSEQUENT INSTALLATION
6
BRACKET ANCHORING LUG
8
BUSHING LASHING EYELET ON FLOOR
11
WASHER HINGE LEVER TO SUPPORT UPPER PART
14
BOLT. SCREW LASHING EYELET ON FLOOR
14
SCREWM 8X35, RAMMSCHUTZ AN RAHMEN
17
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
20
PROTECTION CAP
24
SCREEN LOAD DICPLACEMENT PROTECTION, P 702275 R 000001
26
BRACKET FRONT, P 702275 R 000001
29
BRACKET LEFT, P 702275 R 000001
29
BRACKET RIGHT, P 702275 R 000001
29
BRACKET CENTRAL AND REAR, P 702275 R 000001
35
WASHER
35
WASHER BRACKET TO SIDE MEMBER
38
SCREW BRACKET TO CAB REAR PANEL M 8X20
38
SCREW BRACKET TO SIDE MEMBER M8X20
999
INSULATION , P 702275 R 000001
999
NET LOAD DICPLACEMENT PROTECTION,P 702274
