Mercedes A9033100019 - ЛОНЖЕРОН
SPRINTER 308 D 903.312

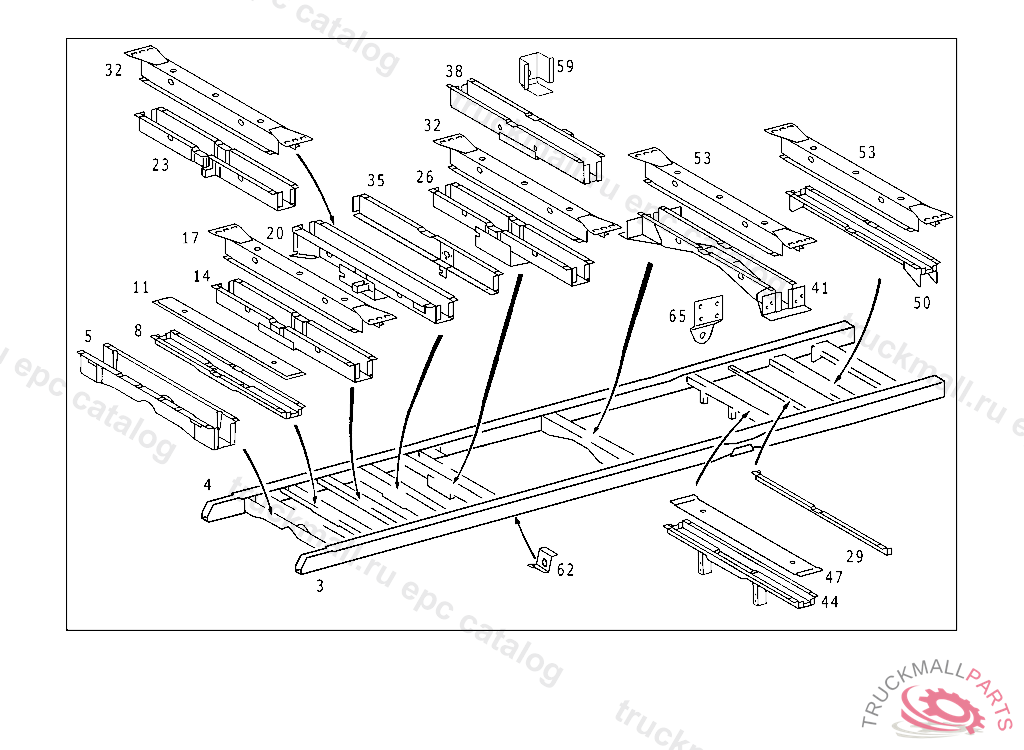

31 FRAME - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
3
A9013100518
SIDE MEMBER LEFT, WHEELBASE: 3550
3
A9033100118
SIDE MEMBER LEFT, WHEELBASE: 3550
4
A9013100419
SIDE MEMBER RIGHT, WHEELBASE: 3550
4
A9033100019
SIDE MEMBER RIGHT, WHEELBASE: 3550
5
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
5
A9023100137
CROSS MEMBER"3"
8
A9013101737
CROSS MEMBER"3A"
11
A9013170331
COVER PLATE"3A"
14
A9013100636
CROSS MEMBERNO.4.1
17
A9013100052
COVER PLATE
29
A9013121025
CROSS MEMBER"5B"
32
A9013100052
COVER PLATE
35
A9013100337
CROSS MEMBER
41
A9023100837
CROSS MEMBER"6.7"
44
A9013101837
CROSS MEMBER"3A.1"
47
A9013170431
COVER PLATE
50
A9043100937
CROSS MEMBER"7.4", TO BE ADAPTED DURING ASSEMBLY
50
A9013120121
53
A9013100052
COVER PLATE
59
A9014000078
BEARING BRACKET SPARE WHEEL CARRIER
62
A9014280840
BRACKET BRAKE HOSE TO FRAME
62
A9014280240
65
A9043260147
SHACKLE
