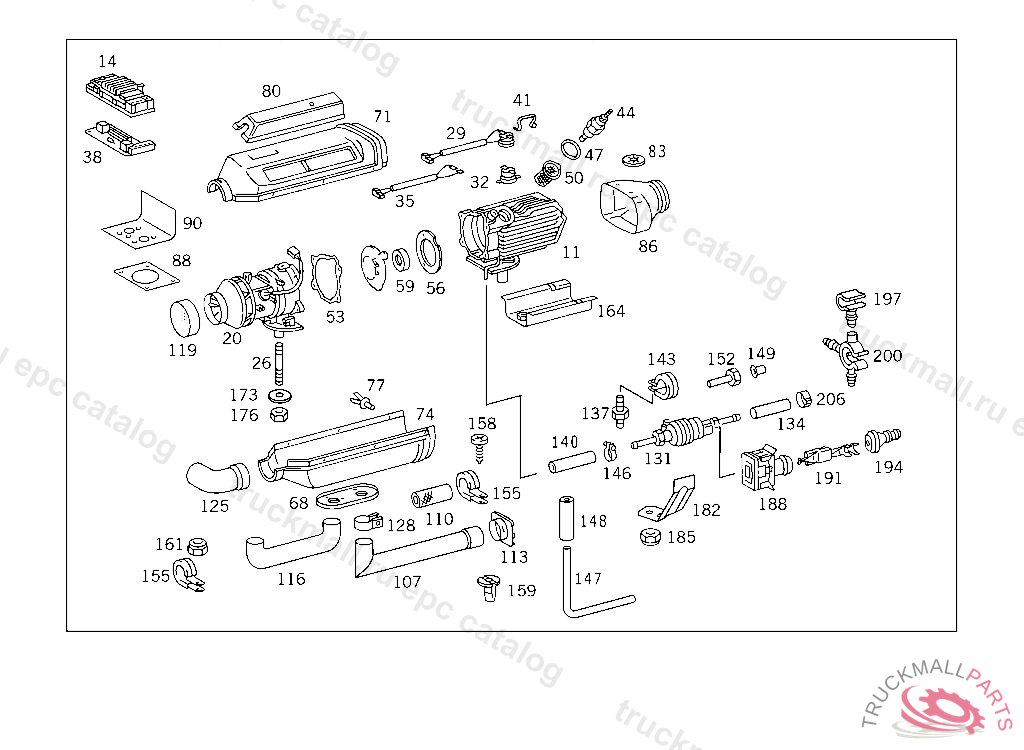

Поз.
Артикул
Описание
11
HEAT EXCHANGER ,P 753730
14
CONTROL UNIT ,P 753730
20
BLOWER ,P 753730
26
STUD BLOWER, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
29
TEMPERATURE SENSOR HEAT EXCHANGER TEMPERATURE SENSOR, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
32
SWITCH OVERHEATING, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
41
SPRING HEAT EXCHANGER TEMPERATURE SENSOR
44
HEATER PLUG
47
SEAL , PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
50
FILTER ,P 753730
53
SEAL HEAT EXCHANGER,P 753730
56
SEAL COVER,P 753730
59
SEAL ,P 753730
68
SEAL FLANGE,P 753730
71
COVERING TOP,P 753730
74
COVERING BOTTOM
77
RIVET
80
CAP , Replaced By: A0008310729
80
CAP , Replaced By: A0008310629
83
SPRING , Replaced By: N912010003000
83
LOCK PLATE , A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473
86
SCOOP MAIL VEHICLES
90
107
HOSE , PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
107
HOSE , Replaced By: A0008325823
110
INSULATION ,P 753730
113
CAP , Replaced By: A0008360025
113
PIPE SOCKET ,P 753730
113
PIPE SOCKET ,P 753730
119
GRILLE ,P 753730
128
CLAMP , Replaced By: A0003380563, +001N000960010023, +001N913004010010
128
CLAMPTO 638 835 12 01,13 01
128
LOOM TIE , Replaced By: A0008300068
128
CLAMP DRAG LINK END TO DRAG LINK
128
CLAMP PUMP TO BRACKET
131
PUMP METERING PUMP,P 753730
134
PIPE LINE , P 753731 R 000001
147
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
148
HOSE
149
STRAINER
152
FITTING
155
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
158
SCREW CLAMP MOUNTING M 6X16
161
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
161
NUT , Replaced By: N913023006001
164
BRACKET ADDITIONAL HEATER
173
WASHER COMPRESSED AIR LINE TO BRACKET
173
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
176
NUT
182
BRACKET METERING PUMP
185
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
185
NUT , Replaced By: N913023006001
188
PLUG INJECTION VALVE
191
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
194
CAP. BOOT ,126372
197
CLAMP
200
BRACKET OIL LINES
200
CLAMP ELECTRIC CABLE TO BRAKE HOSE
200
CLAMP. EXTENDABLE SPACER BREATHER LINE
206
LOOM TIE , Replaced By: A0029970190
206
LOOM TIE , Replaced By: A0049975190
206
LOOM TIE LINE MOUNTING
206
LOOM TIE ,P 753730
999
HOSE AIR INTAKE,P 753730
