Mercedes A0009904892 - Крепёж

308 CDI, 311 CDI, 313 CDI, 316 CDI 903.623 TO IDENT-NR. R337626

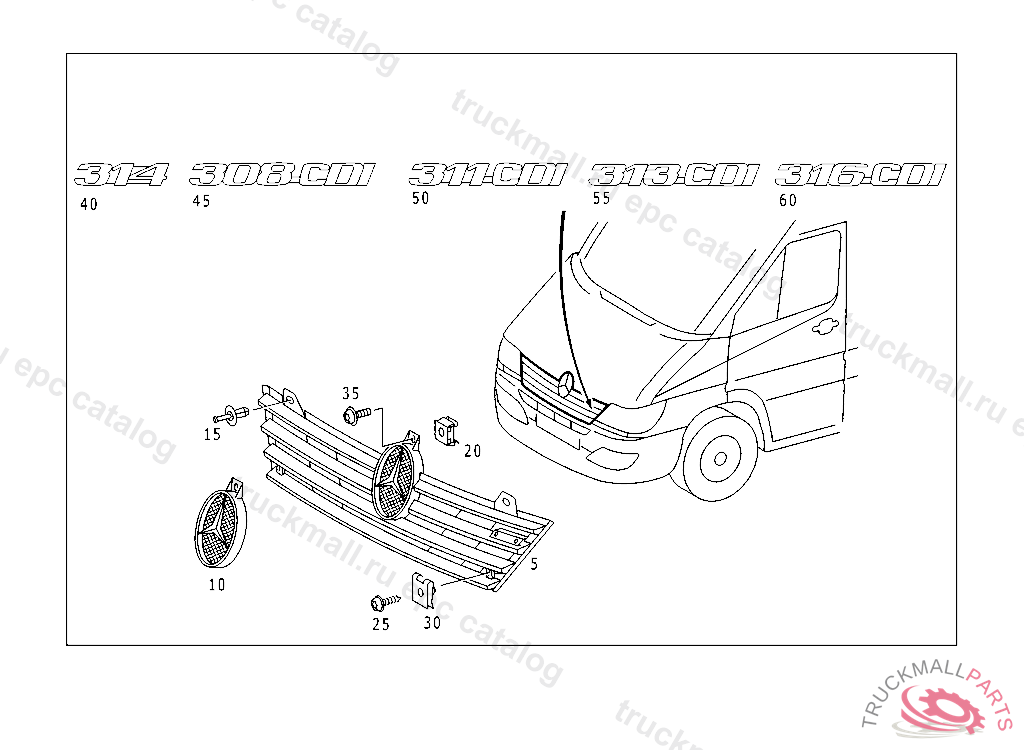

88 ATTACHMENT PARTS - 430 RADIATOR GRILLE SHELL

Поз.
Артикул
Описание
5
A9018800085
RADIATOR GRILLE
5
A9018800185
RADIATOR GRILLE READY TO BE PAINTED
10
A9018170016
BADGE , 20060101
15
A0009904892
RIVET
20
N913014006003
CAPTIVE NUT. NUT
25
N000000000530
TAPPING SCREW
30
A0039949945
LOCK. FUSE , R 44096820020830 20021024
35
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
45
A9018172014
TYPE DESIGNATION308CDI, R 42378420020628 A 90600620021031
50
A9018172114
TYPE DESIGNATION311CDI, R 42378420020628 A 90600620021031 V 00000020021031
55
A9018172214
TYPE DESIGNATION313 CDI
60
A9018172414
TYPE DESIGNATION316CDI, R 42378420020628 A 90600620021031 V 00000020021031
