Главная
›
Mercedes
›
VAN
›
308 CDI, 311 CDI, 313 CDI, 316 CDI
›
903.623 TO IDENT-NR. R337626
›
72 DOORS
›
180 CLOSING SYSTEM

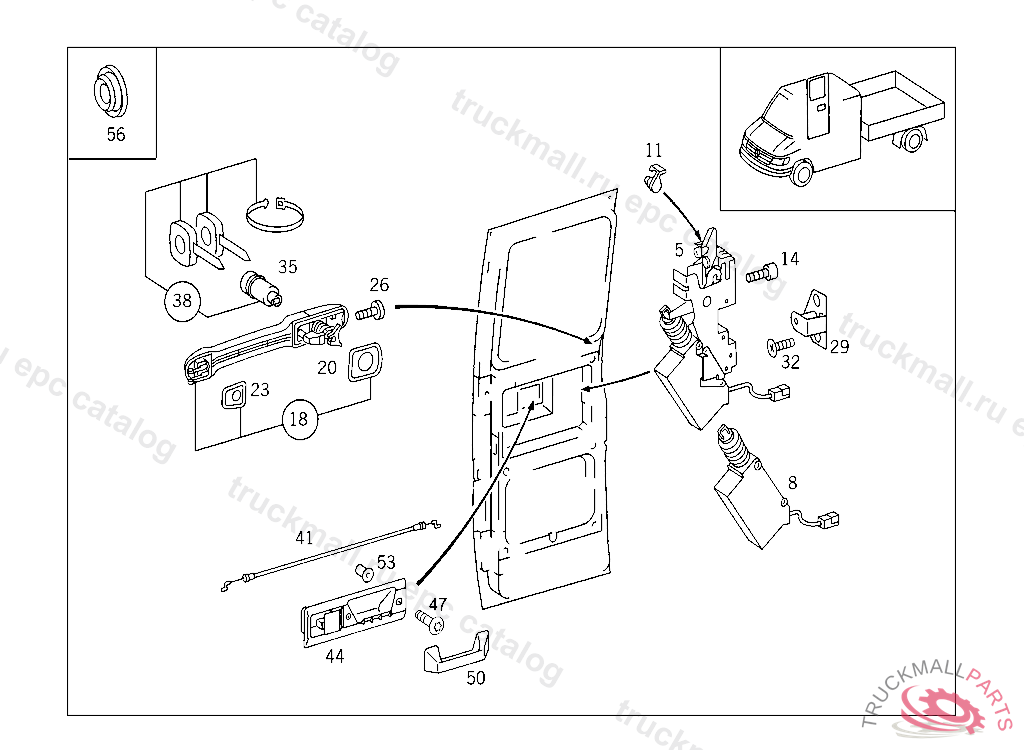

Mercedes A9017201735 - Замок
308 CDI, 311 CDI, 313 CDI, 316 CDI 903.623 TO IDENT-NR. R337626
72 DOORS - 180 CLOSING SYSTEM
Поз.
Артикул
Описание
5
A9017201135
LOCK
5
A9017201735
LOCK WITH CENTRAL LOCKING AND ANTI-LOCKOUT DEVICE, RIGHT
5
A6387200035
LOCK , Replaced By: A9017200935
5
A9017200235
LOCK , Replaced By: A9017201135
5
A9017200935
LOCK , Replaced By: A9017201735
8
A0018003575
ELEMENT CENTRAL LOCKING MECHANISM
11
A0008050125
CLIP SERVOMOTOR
14
A0009849729
SCREW BRACKET TO SUPPORT M 6X15
18
A0007601359
DOOR HANDLE OUTSIDE
20
A0007660605
PAD
23
A0007660505
PAD
26
A0009842529
SCREW DOOR HANDLE TO DOOR
29
A9737200031
STRIKER PIN B-PILLAR
29
A9017200431
LATCH B-PILLAR, Replaced By: A9737200031
32
A0009843129
SCREW B-PILLAR
35
A6707600105
TUMBLER WITH LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
38
A6707600205
TUMBLER WITH KEY, ANY LOCK,K 057755
41
A9017600504
PULL
44
A9017600061
INTERIOR HANDLE ASSEMBLY
47
A0009843229
SCREW MOUNTING PARTS
50
A9017660068
ORNAMENTAL COVER ,NO.7E72
53
A0009843921
RIVETED NUT INTERIOR HANDLE ASSEMBLY TO DOOR
56
A0009873844
EXPANSION PLUG
