Mercedes N007981005306 - ШУРУП

308 CDI, 311 CDI, 313 CDI, 316 CDI 903.623 TO IDENT-NR. R337626

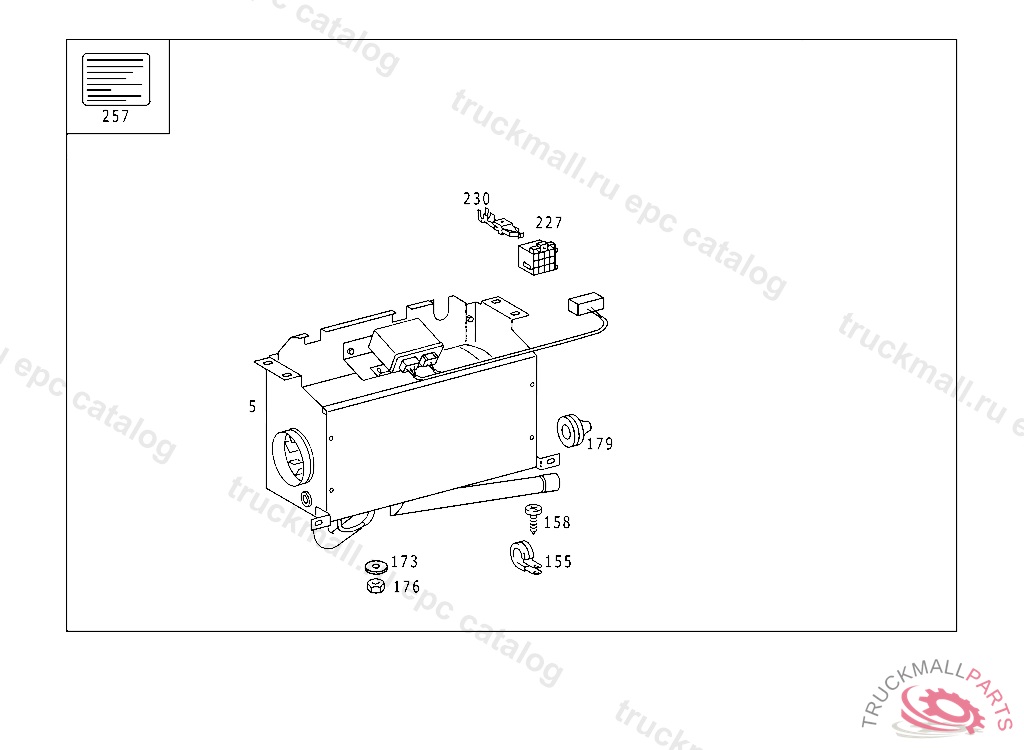

83 HEATING AND VENTILATION - 320 HOT AIR AUXILIARY HEATER IL. 1

Поз.
Артикул
Описание
5
A0048306861
HEATER UNIT
158
N007981005306
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
173
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
173
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
176
N304032006000
NUT
179
A6019970381
GROMMETD8/36
227
A0055459426
PIN BUSHING HOUSING 12-POLE, GREEN TO 011 545 80 26,81 26, OLD VERSION UP TO CONNECTOR HOUSING CONVERSION
230
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
230
A0115458126
CONTACT SPRING0.5-1.0 MM2
257
A9015840136
OPERATING PLATE
999
A0008320116
INTAKE PIPE
