Mercedes N000933006102 -

LP 1418 338.054

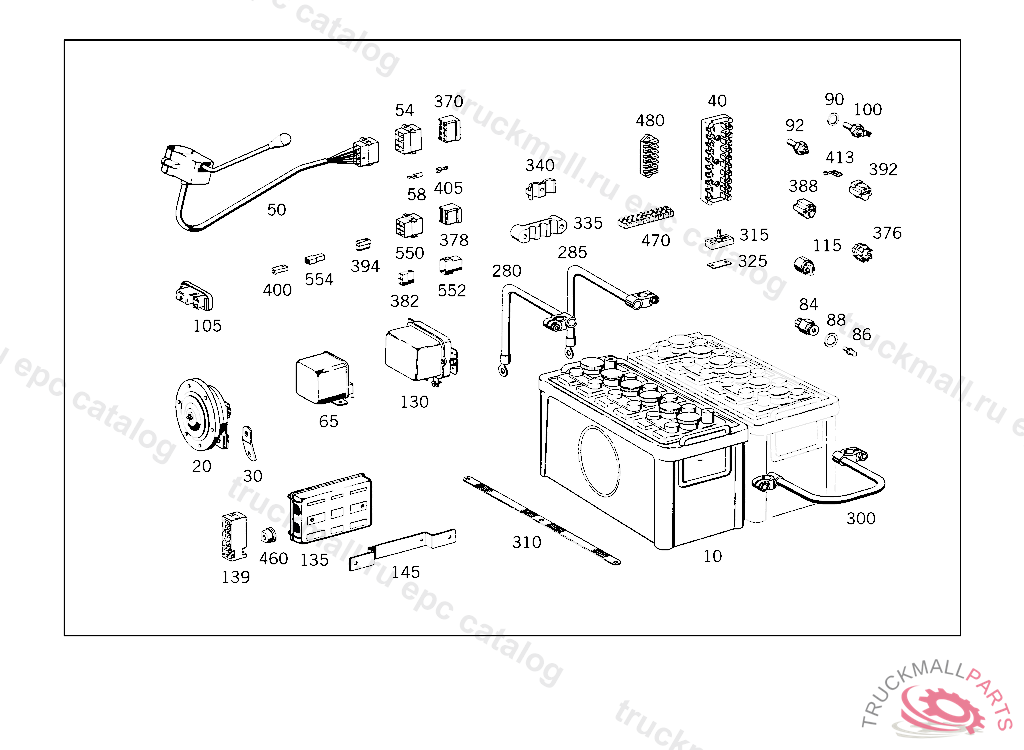

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS IL. 1
  • Поз.
    Артикул
    Описание
  • 10
    BATTERY12 V/100 AH
  • 10
    BATTERY , Replaced By: A0035410001
  • 10
    BATTERY12 V/135 AH
  • 10
    BATTERY , Replaced By: A0025412301
  • 10
    BATTERY , Replaced By: A0035411801
  • 10
    BATTERY , Replaced By: A0035410101
  • 20
    HORN
  • 20
    HORN , Replaced By: A0035422720
  • 20
    HORN , Replaced By: A6315420120
  • 30
    BRACKET
  • 84
    SWITCH IN BEARING BRACKET,FOR RATCHET-TYPE HAND BRAKE CONTROL
  • 86
    PIN
  • 88
    WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
  • 90
    SEAL RING FUEL LINE TO FEED PUMP
  • 100
    SWITCH,AUTOMATIC TEMPERATURE GAUGE SENDER UNIT
  • 280
    ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
  • 280
    ELECTRIC CABLE , Replaced By: A6735460013
  • 280
    ELECTRIC CABLE , Replaced By: N922002070000
  • 285
    ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
  • 285
    ELECTRIC CABLE , Replaced By: A6735460013
  • 285
    ELECTRIC CABLE , Replaced By: N922002070000
  • 285
    NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013200
  • 310
    GROUND STRAP FROM CAB TO GROUND AT ENGINE AND TO FRAME
  • 340
    CLAMPING PIECE BATTERY CABLE MOUNTING
  • 340
    CLAMPING PIECE BATTERY CABLE MOUNTING
  • 382
    PIN BUSHING HOUSING 4-POLE
  • 405
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
  • 405
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
  • 470
    CABLE CONNECTOR ,4 315875
  • 480
    CABLE CONNECTION 6-POLE. CABLE CONNECTOR ,4 248860
  • 999
    LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
  • 999
    LINE , Replaced By: A3404204929
  • 999
    INSTRUMENT CLUSTER , Replaced By: A0015409047
  • 999
    INSTRUMENT CLUSTER IN GERMAN 12 V
  • 999
    INSTRUMENT CLUSTER IN ENGLISH, L UP TO CHASSIS 004165,LP UP TO CHASSIS 001409
  • 999
    INSTRUMENT CLUSTER , Replaced By: A0005409247
  • 999
    INSTRUMENT CLUSTER IN GERMAN, L FROM CHASSIS 004166,LP FROM CHASSIS 001410 L UP TO CHASSIS 006548,LP UP TO CHASSIS 002089
  • 999
    INSTRUMENT CLUSTER IN ENGLISH, L FROM CHASSIS 004166,LP FROM CHASSIS 001410 L UP TO CHASSIS 006548,LP UP TO CHASSIS 002089
  • 999
    BATTERY , Replaced By: A3875400701
  • 999
    TELL-TALE LAMP
  • 999
    CONNECTOR
  • 999
    POTENTIOMETER INSTRUMENT LIGHTING, 600488
  • 999
    TACHOMETER , L UP TO CHASSIS 005046,UP AP TO CHASSIS 001652
  • 999
    BUZZER COOLING WATER TEMPERATURE WARNING,4 163883
  • 999
    DIAGRAM PAPER SET100 PIECES TO 003 542 94 10, 781532
  • 999
    DIAGRAM PAPER SET100 PIECES
  • 999
    FUEL GAUGE DASH UNIT
  • 999
    FLEXIBLE SHAFT2550 MM, L UP TO CHASSIS 001459,LP UP TO CHASSIS 000608
  • 999
    AIR PRESSURE GAUGE GRADUATION IN KG/CM2
  • 999
    AIR PRESSURE GAUGE , 001619-002338
  • 999
    AIR PRESSURE GAUGE
  • 999
    AIR PRESSURE GAUGE , Replaced By: A0005426808
  • 999
    FLEXIBLE SHAFT3200 MM, L UP TO CHASSIS 001459,LP UP TO CHASSIS 000608
  • 999
    FLEXIBLE SHAFT , Replaced By: A0035420807
  • 999
    FLEXIBLE SHAFT3200 MM, L FROM CHASSIS 001460,LP FROM CHASSIS 000609
  • 999
    OIL PRESSURE GAUGETO 001 540 62 47
  • 999
    BUFFER
  • 999
    REFLECTOR ,FB002177
  • 999
    LAMP SOCKET INFLATION PRESSURE CONTROL SYSTEM
  • 999
    TAIL LAMP LEFT, L UP TO CHASSIS 002072,LP UP TO CHASSIS 000785
  • 999
    TAIL LAMP RIGHT, L UP TO CHASSIS 002072,LP UP TO CHASSIS 000785
  • 999
    GASKET AT TAIL LAMP
  • 999
    LAMP SOCKET TAIL LAMP TO 000 544 59 03,000 544 60 03
  • 999
    LAMP SOCKET , L FROM CHASSIS 002073,LP FROM CHASSIS 000786 L UP TO CHASSIS 601845
  • 999
    TAIL LAMPHELLA
  • 999
    TAIL LAMP BLINKER LIGHT AND STOP LIGHT HELLA
  • 999
    LENS
  • 999
    TAIL LAMP , Replaced By: A0015446403, +001A0015446303
  • 999
    TAIL LAMP , Replaced By: A0015446303, +001A0015446403
  • 999
    GASKET TAIL LAMP TO 000 544 59 03,000 544 60 03
  • 999
    GASKET , L FROM CHASSIS 002073,LP FROM CHASSIS 000786 L UP TO CHASSIS 601845
  • 999
    SENDER UNIT , Replaced By: A0025441332
  • 999
    RIM , Replaced By: A0005445890
  • 999
    SENDER UNIT HAZARD WARNING LIGHT SENDER UNIT, 000531
  • 999
    WASHER , Replaced By: A0005450376
  • 999
    NUT SWITCH TO APPARATUS PLATE
  • 999
    FUSE
  • 999
    BOOT , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
  • 999
    SWITCH , Replaced By: A0005451212
  • 999
    KEY AT INSTRUMENT PANEL
  • 999
    NUT , Replaced By: A0005451072
  • 999
    SOCKET SPEEDOMETER LIGHTING
  • 999
    SWITCH STARTING CHANGE-OVER SWITCH
  • 999
    SOCKET BIPOLAR
  • 999
    PLUG SOCKET , Replaced By: A3285402407
  • 999
    HEATER PLUG CONTROL , ON OM 321 ENGINE
  • 999
    SWITCH (FOOT DIMMER SWITCH)
  • 999
    SWITCH BOX
  • 999
    SOCKET
  • 999
    PULL-PUSH SWITCH. SWITCH PANE WIPER
  • 999
    HEATER PLUG CONTROL INSTRUMENTS,020757
  • 999
    BRAKE LIGHT SWITCH. SWITCH , Replaced By: A0005456109
  • 999
    RESISTOR , ON OM 321 ENGINE
  • 999
    SWITCH , Replaced By: A0005456409
  • 999
    SWITCH ,020757
  • 999
    EXTENSION , L UP TO CHASSIS 001459,LP UP TO CHASSIS 000608
  • 999
    PLUG SOCKET , Replaced By: A0005451026
  • 999
    PLUG SOCKET , Replaced By: N072577007200
  • 999
    RESISTORBERU, ON SPECIAL REQUEST, SHIELDED GENERATOR, SHIELDED WINDSHIELD WIPER, AND SHIELDED BLINKER SENDER UNIT
  • 999
    SWITCH , Replaced By: A0005456314
  • 999
    PIN BUSHING , Replaced By: A0075458226
  • 999
    TELL-TALE LAMP , Replaced By: A0005458415
  • 999
    SWITCH ABS AND ASR
  • 999
    SWITCH , Replaced By: A0015450809
  • 999
    SWITCH , Replaced By: A0015450214
  • 999
    SWITCH , Replaced By: A0007631410
  • 999
    SWITCH CAB LAMP AND HEATER BLOWER, UP TO IDENT NO. 655197 EXCEPT FOR 500001-599999
  • 999
    SWITCH PANE WIPER, UP TO IDENT NO. 655197 EXCEPT FOR 500001-599999
  • 999
    FUSE , Replaced By: N072581008101
  • 999
    SWITCH HAZARD WARNING LIGHT, 600489 705406
  • 999
    TELL-TALE LAMP , Replaced By: A0015451115
  • 999
    COVERING WITH GASKET
  • 999
    CABLE CONNECTOR BIPOLAR, ON LP1313(352)UP TO CHASSIS 601003 ALSO INSTALLED ON 601006,601009,601010,601017,601018,601024 WITH THE EXCEPTION OF 600917,60 0992,600993,600996-999,601001,601002 CONTINUED ON 009
  • 999
    CABLE CONNECTOR , FROM CHASSIS:110.010 130558 110.011 000001 110.110 225648
  • 999
    CABLE CONNECTOR , Replaced By: A0005463641
  • 999
    CABLE CONNECTOR 6-POLE
  • 999
    CAPSULE BORER , Replaced By: A0005501004
  • 999
    PUMP , Replaced By: A0005500883
  • 999
    PUMP , Replaced By: A0005501083
  • 999
    CAPSULE , ON SPECIAL REQUEST
  • 999
    HANDLE , Replaced By: A0005550440
  • 999
    NUT
  • 999
    HANDLE
  • 999
    SEAL CONE REPAIR KIT
  • 999
    SWITCH , TO BE ADAPTED DURING ASSEMBLY
  • 999
    SCREWED SOCKET. PLUG , Replaced By: A0015458528
  • 999
    SEAL CONE FEED LINE AND RETURN LINE,842222, 001-041
  • 999
    NUT RETAINER , Replaced By: A0019902891
  • 999
    SEAL CONE , Replaced By: A0005550618
  • 999
    GROMMET , Replaced By: A0009972081
  • 999
    GROMMET
  • 999
    REGULATOR AND CUT-OUT , Replaced By: A0011544406
  • 999
    REGULATOR AND CUT-OUT , Replaced By: A0011544706
  • 999
    REGULATOR AND CUT-OUT300 W/12 V,011743-012876 ON SPECIAL REQUEST, SHIELDED GENERATOR
  • 999
    INSTRUMENT CLUSTER IN GERMAN, L FROM CHASSIS 006549,LP FROM CHASSIS 002090 600488
  • 999
    INSTRUMENT CLUSTER IN ENGLISH, L FROM CHASSIS 006549,LP FROM CHASSIS 002090 600488
  • 999
    OIL PRESSURE GAUGE , 002338
  • 999
    SENDER UNIT , Replaced By: A0025456324
  • 999
    OIL PRESSURE GAUGETO 001 540 90 47
  • 999
    OIL PRESSURE GAUGE LBS./SQ.INCH ELECTRICALLY OPERATED, L FROM CHASSIS 006549,LP FROM CHASSIS 002090 600488
  • 999
    FLEXIBLE SHAFT ,5 398761
  • 999
    ANGLE DRIVE , Replaced By: A0025425430
  • 999
    LENS TAIL LAMP TO 001 544 22 03,001 544 23 03
  • 999
    LENS , L FROM CHASSIS 002073,LP FROM CHASSIS 000786 L UP TO CHASSIS 601845
  • 999
    TAIL LAMP LESS LICENSE PLATE LAMP, 846814
  • 999
    TAIL LAMP WITH LICENSE PLATE LAMP, 846814
  • 999
    SWITCH , TO BE ADAPTED DURING ASSEMBLY
  • 999
    PLUG SOCKET
  • 999
    PIN BUSHING HOUSING 3-POLE
  • 999
    PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
  • 999
    SEAL CONE
  • 999
    SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
  • 999
    SCREW CONNECTION
  • 999
    FITTING , Replaced By: A0039979072
  • 999
    LOOM TIE LINE MOUNTING 280 MM
  • 999
    LOOM TIE LINE MOUNTING
  • 999
    TEMPERATURE GAUGE
  • 999
    TEMPERATURE GAUGE , Replaced By: A0045420405
  • 999
    TACHOGRAPH WITH ONE-DAY REGISTRATION,READING IN KILOMETERS, L UP TO CHASSIS 001459,LP UP TO CHASSIS 000608
  • 999
    FLEXIBLE SHAFT2850 MM, L UP TO CHASSIS 001459,LP UP TO CHASSIS 000608
  • 999
    FLEXIBLE SHAFT , Replaced By: A0005428007
  • 999
    FLEXIBLE SHAFT2850 MM, L UP TO CHASSIS 001459,LP UP TO CHASSIS 000608
  • 999
    TEMPERATURE GAUGE , Replaced By: A0025420405
  • 999
    REDUCTION GEARING0.769
  • 999
    PLUG SOCKET FOR OPERATION WITH TRAILER
  • 999
    PLUG SOCKET12 V
  • 999
    SWITCH,AUTOMATIC , Replaced By: A0045455524
  • 999
    TS DOUBLE FITTING SOLENOID VALVE
  • 999
    SPEEDOMETER , Replaced By: A0045426806, +001A3355405137
  • 999
    FLEXIBLE SHAFT , Replaced By: A0055421407
  • 999
    HORN , Replaced By: A6315420120
  • 999
    FITTING , Replaced By: A0029906071
  • 999
    FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
  • 999
    SPEEDOMETER , Replaced By: A0075422006
  • 999
    FLEXIBLE SHAFT3600 MM
  • 999
    SPEEDOMETER , Replaced By: A0075422206
  • 999
    SPEEDOMETER
  • 999
    SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
  • 999
    LOCK , 005508
  • 999
    HANDLE
  • 999
    CLAMP FUEL LINE TO BRACKET
  • 999
    KNOB , Replaced By: A1105401183
  • 999
    BUTTON. HANDLE
  • 999
    GROMMET SHIFT PATTERN,W/REAR AXLE 48:7,8.25-20 TIRES, MEASURG.RANGE,90KM/H,OR 60MPH
  • 999
    BASE , Replaced By: A3142030084
  • 999
    BRACKET FUEL LINE, 004265
  • 999
    HOSE
  • 999
    CLAMP , Replaced By: A3129952420
  • 999
    CLAMP
  • 999
    MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
  • 999
    CLAMP
  • 999
    CLAMP
  • 999
    FIXING CLAMP. CLAMP , Replaced By: A0005460875
  • 999
    CLAMP , Replaced By: A1109950401
  • 999
    SHIM BRACKET TO LEFT SIDE MEMBER
  • 999
    GROMMET
  • 999
    FUSE BOX , Replaced By: A3455458301
  • 999
    CLAMP , Replaced By: A0005460875
  • 999
    GROMMET
  • 999
    GROMMET , Replaced By: A3359970081
