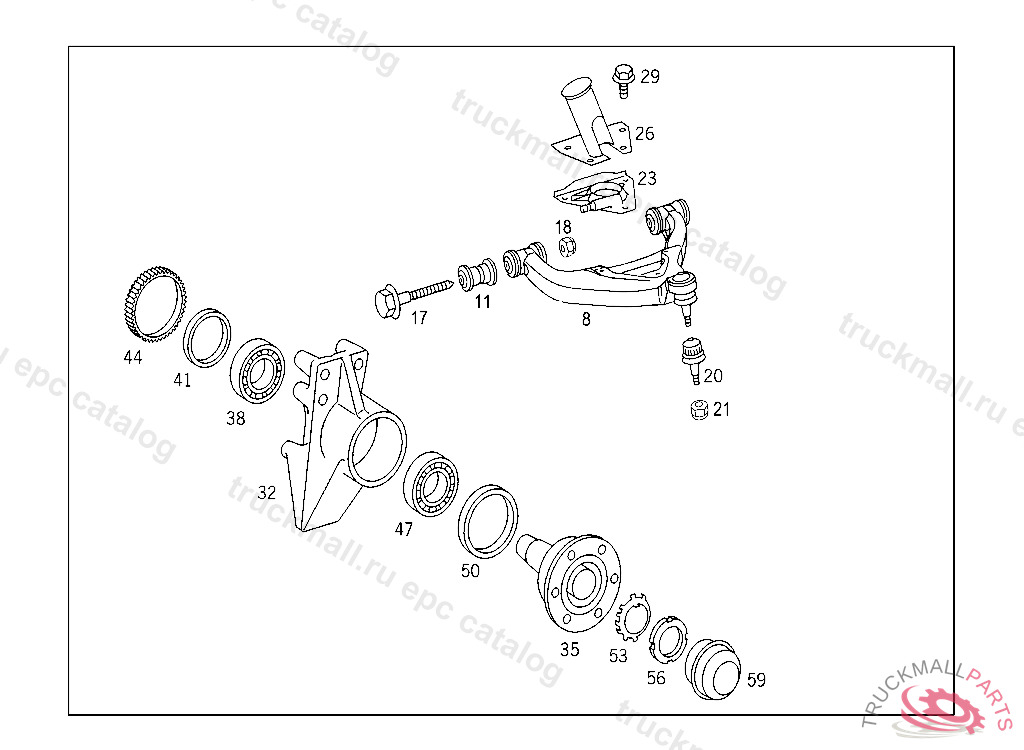

Поз.
Артикул
Описание
8
TRANSVERSE CONTROL ARM
8
TRANSVERSE CONTROL ARM RIGHT
11
BEARING TRANSVERSE CONTROL ARM
17
SCREW CONTROL ARM TO FRONT AXLE
18
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
18
NUT SUPPORT TO FRAME
20
JOINT , Replaced By: A9013331327
20
JOINT
21
HEXAGON NUT LOWER JOINT TO STEERING KNUCKLE
23
PLATE SPRING STOP,LEFT
23
PLATE SPRING STOP,RIGHT
26
STOP SPRING STOP
29
HEXAGON HEAD BOLT. SCREW , Replaced By: N000000000265
29
HEXAGON HEAD BOLT FRONT SUPPORT, AT TRANSMISSION M10 X 30
32
32
32
STEERING KNUCKLE LEFT
32
STEERING KNUCKLE RIGHT
35
WHEEL HUB
38
TAPERED ROLLER BEARING DRIVE SHAFT
41
SEAL RING , 309.000-026 003058-004733 309.070-091 000635-000939 309.100-126 048632-078583 309.107-191 005153-010916 FROM IDENT NO.,SEE STANDARD EQUIPMENT
44
RING ANTI-LOCK BRAKING SYSTEM
47
TAPERED ROLLER BEARING OUTSIDE
50
SEAL RING OUTSIDE
53
LOCK
56
NUT OIL FILLER NECK
59
HUB CAP
