Mercedes A9015401205 - ЖГУТ ЭЛЕКТРОПРОВОДКИ

414,408CDI,411CDI,413CDI,416CDI 904.612 FROM IDENT-NR. R337627, 5337627, A901274

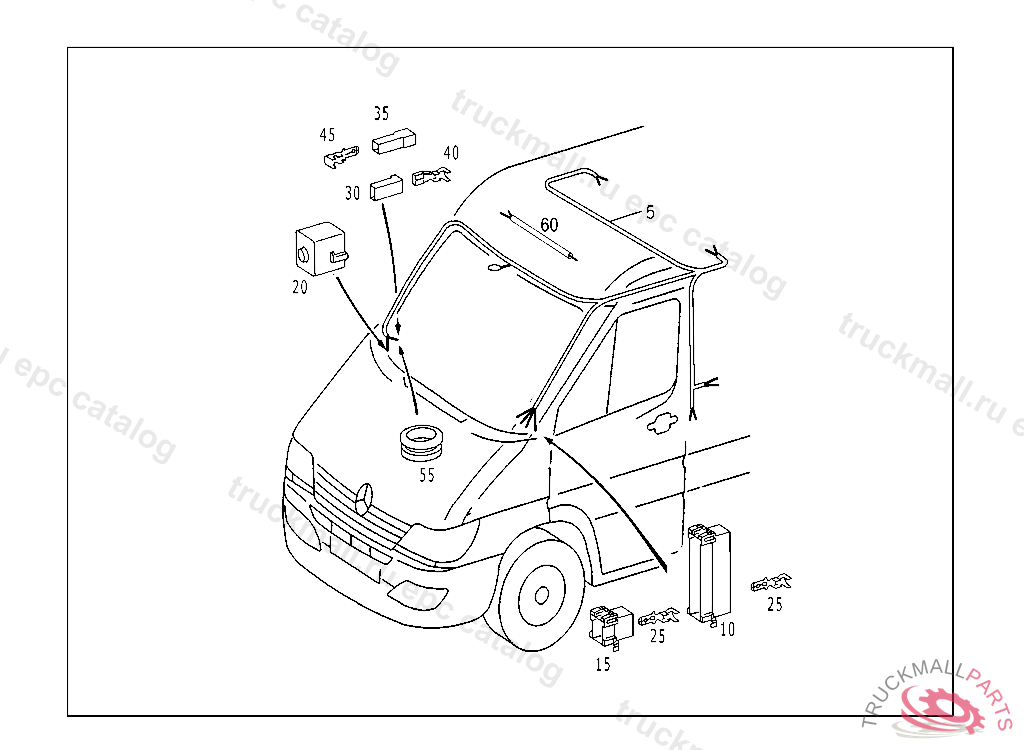

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 155 ROOF MOUNTED CABLE HARNESS

Поз.
Артикул
Описание
5
A9010007399
CABLE HARNESS. ELECTRICAL LINE ROOF MOUNTED CABLE HARNESS DACH, STATE IDENT NO. WHEN ORDERING
10
A6555451328
PLUG HOUSING 22-POLE
15
A6555450828
PLUG HOUSING 4-POLE
20
A6555450045
BOOT CHASSIS/CAB PLUG CONNECTION
25
A0215456028
FLAT PLUG. PLUG1-2.5 MM2
25
A0195455628
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
30
A0025451128
PIN BUSHING HOUSING UNIPOLAR
35
A0025451328
PIN BUSHING HOUSING UNIPOLAR
40
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
45
A0325457228
PLUG WITH DETENT AND WITH CATCH FOR HOUSING 0.3-0.8 MM2
45
A0285455328
FLAT PLUG WITH DETENT 4-6 MM2
55
A0009978181
GROMMET BUMPER, UP TO IDENT NO. 4 282707 AND FROM IDENT NO. 8 000001
60
A9015401205
WIRING HARNESS IDENTIFICATION LAMPS
