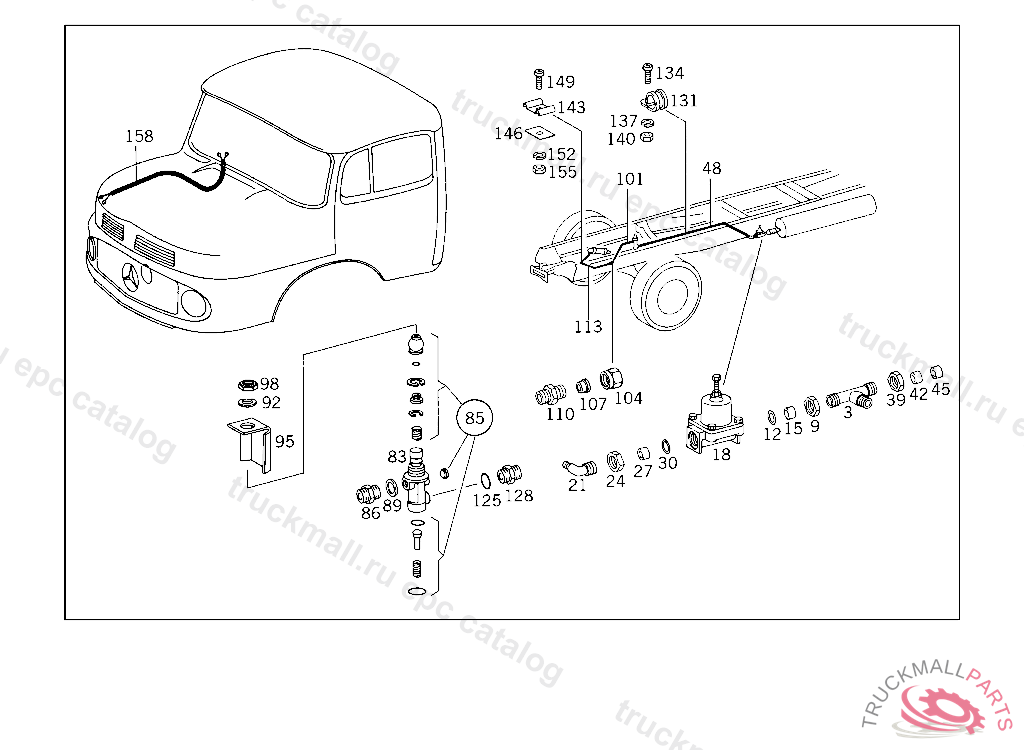

Поз.
Артикул
Описание
3
T-FITTING
3
T-FITTING COMPRESSED AIR VALVE CONNECTION
9
NUT CHECK VALVE TO AIR RESERVOIR
12
O-RING CHECK VALVE TO AIR RESERVOIR
15
THRUST RING CHECK VALVE TO AIR RESERVOIR
15
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
18
VALVE (OVERFLOW VALVE)
18
VALVE (OVERFLOW VALVE)
21
ELBOW FITTING AT OVERFLOW VALVE
21
ELBOW FITTING AT OVERFLOW VALVE
24
NUT CHECK VALVE TO AIR RESERVOIR
27
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
27
THRUST RING CHECK VALVE TO AIR RESERVOIR
30
O-RING CHECK VALVE TO AIR RESERVOIR
39
NUT CHECK VALVE TO AIR RESERVOIR
42
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
42
THRUST RING CHECK VALVE TO AIR RESERVOIR
45
O-RING CHECK VALVE TO AIR RESERVOIR
48
LINE FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE
83
VALVE , Replaced By: A0004342401
85
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
86
FITTING , Replaced By: A0029906071
86
DOUBLE FITTING , Replaced By: A0019972872
89
SEAL RING LINE CONNECTION
92
SPRING WASHER OPERATING VALVE TO SIDE MEMBER SHELL
95
PROTECTIVE PLATE OPERATING VALVE TO SIDE MEMBER SHELL
98
NUT , Replaced By: N080705026003
101
LINE OPERATING VALVE,CONNECTION:
104
UNION NUT
107
GLAND , Replaced By: A0019901667
110
CONNECTION FITTING , Replaced By: A0039979172
113
LINE
125
SEAL RING LINE CONNECTION
128
FITTING , Replaced By: A0029906071
128
DOUBLE FITTING , Replaced By: A0019972872
131
CLAMP ,K 147121, Replaced By: N000000000319
131
CLAMP , Replaced By: N916016008200
134
SCREW CONTACTOR
137
LOCK WASHER LINE MOUNTING
140
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
143
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
146
PLATE
149
SCREW CONTACTOR
152
LOCK WASHER LINE MOUNTING
155
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
158
ELECTRIC CABLE
999
PROTECTIVE CAPTO 000 434 08 01,345 434 71 01
999
CUP 3/2-WAY VALVE WABCO
999
VALVE"WESTINGHOUSE"
999
HANDLETO 000 434 24 01
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
REPAIR KIT SMALL SCOPE TO 345 434 71 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
VALVE"WABCO DO BRASIL"
999
REPAIR KIT , Replaced By: A0034301281
999
LINE FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE, TO BE ADAPTED DURING ASSEMBLY
999
LINE FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE, TO BE ADAPTED DURING ASSEMBLY
999
SEAL RINGTO 376 131 74 01
999
LOCK NUT
999
T-FITTING
