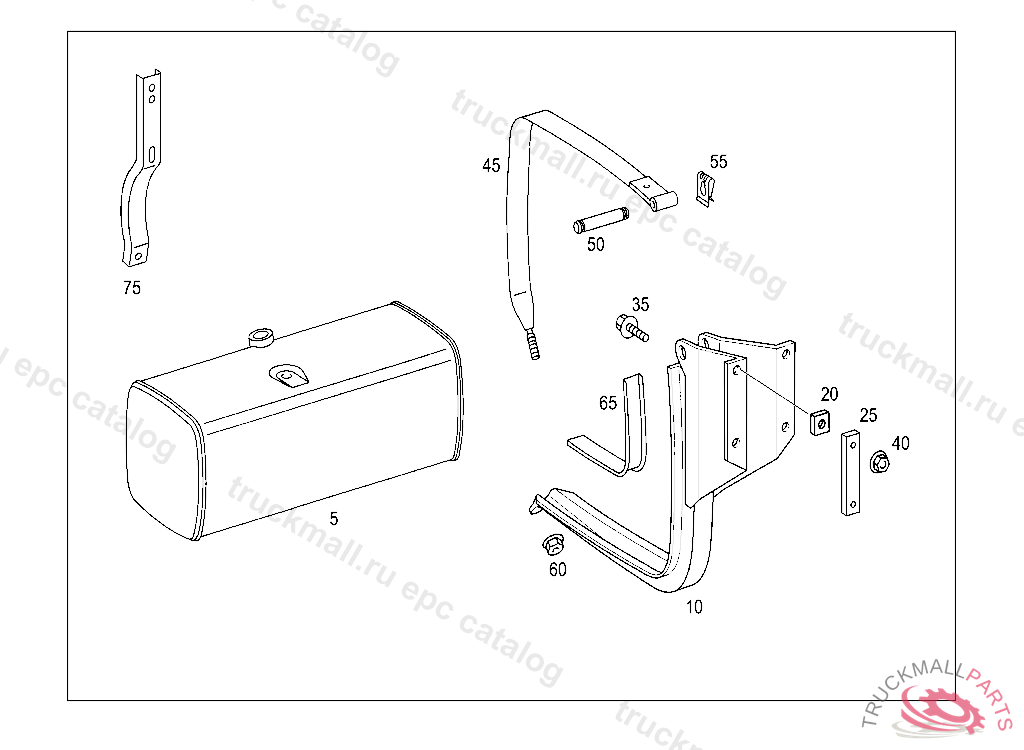

Поз.
Артикул
Описание
5
FUEL TANK , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6624707702
5
FUEL TANK TO BE MOUNTED ON THE RIGHT 480 L + 170 L
10
SUPPORT FUEL TANK TO FRAME
10
SUPPORT FRONT RIGHT TANK
20
SHIM MOUNTING PARTS 7MM
25
SHIM MOUNTING PARTS 20MM
35
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
35
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
35
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
35
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
35
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
40
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
45
STRAP FUEL TANK TO CONSOLE
50
PIN STRAP TO SUPPORT
55
CLIP RESERVOIR TO CAB FRONT PANEL
60
NUT STRAP TO SUPPORT M12X1.5
65
PAD BRAKE ANCHOR 53 MM
65
PAD STRAP 61 MM
75
BRACKET AIR RESERVOIR
75
BRACKET , Replaced By: A9454320440
