Mercedes A0834900095 -

4140 AK - 4148 AK 952.336

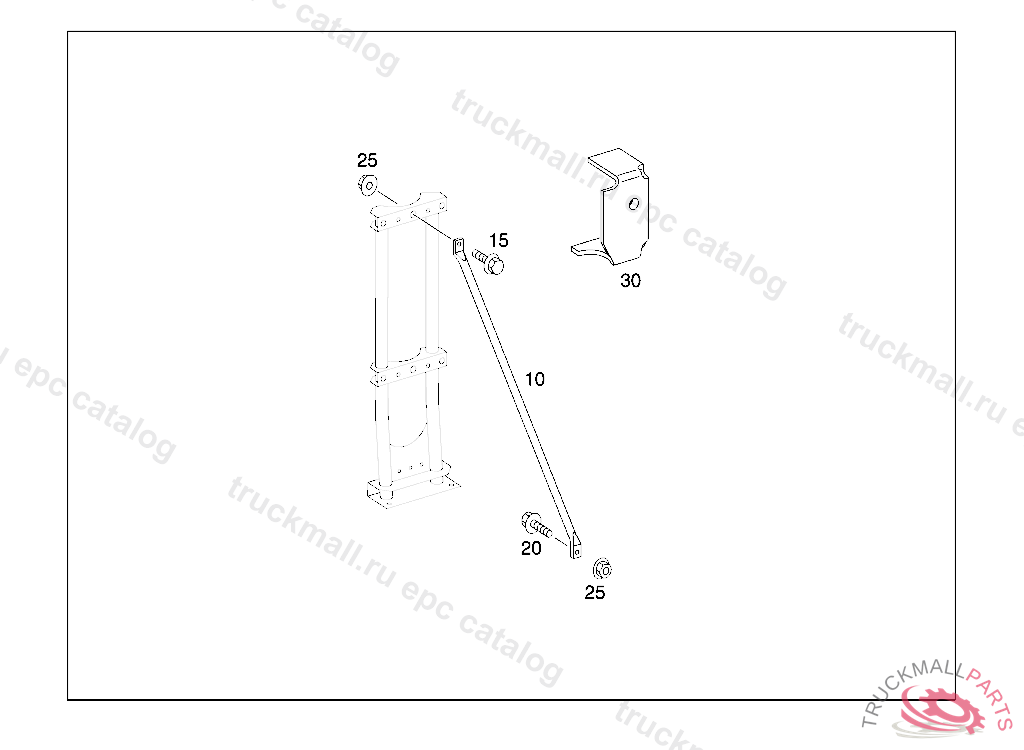

49 EXHAUST SYSTEM - 001 EXHAUST MUFFLER MOUNTING
  • Поз.
    Артикул
    Описание
  • 10
    REINFORCEMENT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9484900195
  • 10
    REINFORCEMENT EXHAUST MUFFLER BRACING
  • 10
    REINFORCEMENT BRACKET TO RIGHT SIDE MEMBER
  • 15
    HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
  • 20
    HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
  • 25
    NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
  • 30
    SUPPORT
