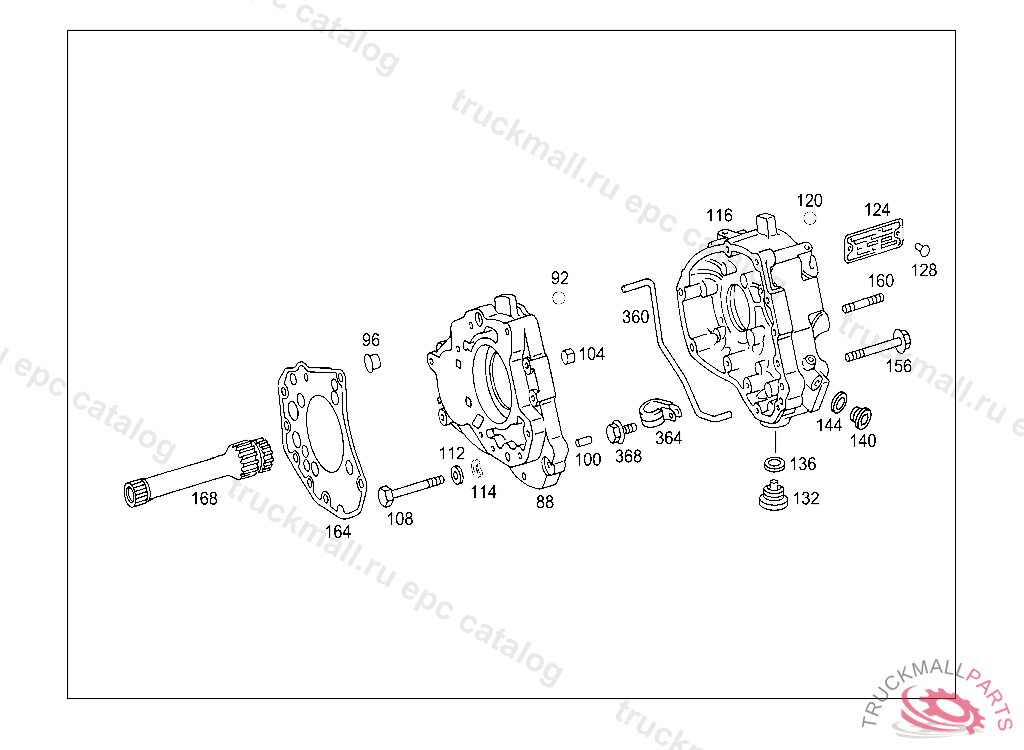

Поз.
Артикул
Описание
88
HOUSING LOWER PART
92
BALL P.T.O. SHAFT
96
EXPANSION PLUG HOUSING,BOTTOM
100
CYLINDRICAL PIN TRANSMISSION CASE TO TRANSMISSION CASE M6X20
104
BUSHING TRANSMISSION CASE TO TRANSMISSION CASE
108
SCREWM 8X40
108
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
108
SCREW VALVE TO BRACKET M 8X55
112
WASHER TRANSMISSION CASE TO TRANSMISSION CASE
114
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
116
HOUSING UPPER PART
120
BALL P.T.O. SHAFT
124
TYPE PLATE HOUSING,TOP
128
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
132
SCREW PLUG OIL DRAIN
136
SEAL RING OIL FILLING AND OIL DRAIN
140
SCREW PLUG FRONT COVER
144
SEAL RINGTO 001 431 72 14
156
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
156
HEXALOBULAR BOLT P.T.O. TO TRANSMISSION M10X90
160
THREADED PIN HOUSING REAR M10X16
164
GASKET P.T.O. TO TRANSMISSION
168
INTERMEDIATE SHAFT LESS RETARDER
360
OIL PIPE OIL LINE TO TRANSMISSION
364
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
368
SCREW , Replaced By: N000000001479
