Mercedes
TRUCK
1823L - 1833L, 4X2
957.540
32 SPRINGS AND SUSPENSION

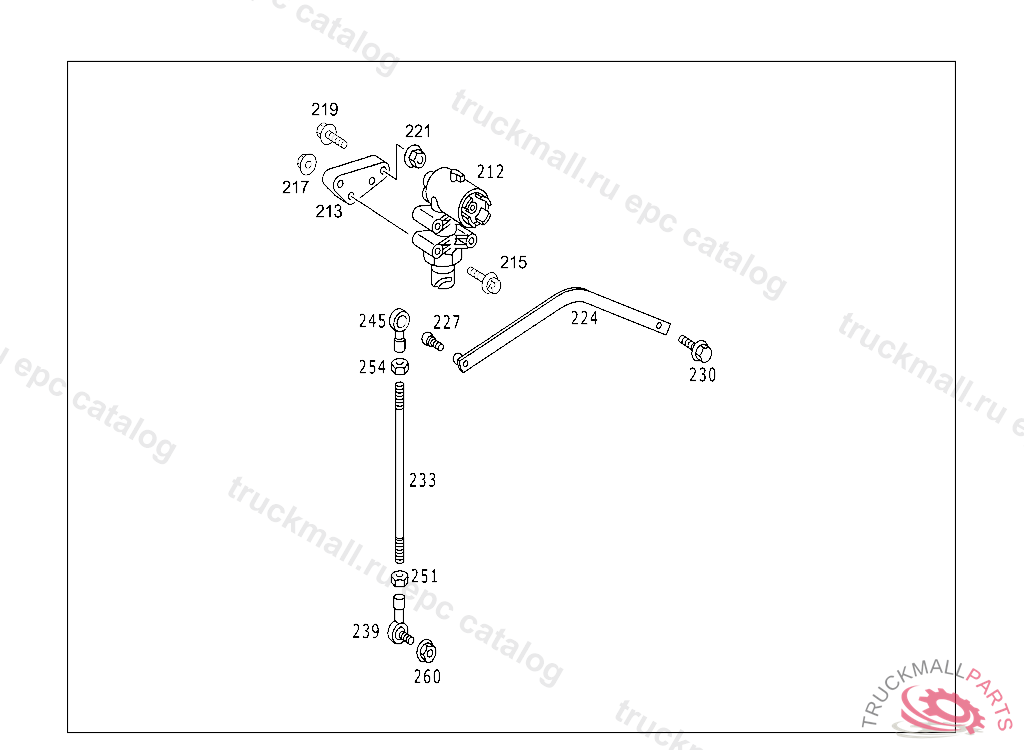

510 AIR SUSPENS. VALVE, REAR AXLE,TRAILING AXLE AND STEERED FORWARD-TRAILING AXLE IL. 4

Mercedes N304032006004 - Гайка / mutter

1823L - 1833L, 4X2 957.540

32 SPRINGS AND SUSPENSION - 510 AIR SUSPENS. VALVE, REAR AXLE,TRAILING AXLE AND STEERED FORWARD-TRAILING AXLE IL. 4

Поз.
Артикул
Описание
212
A0015420018
TRAVEL SENSOR SELF-LEVELLING DEVICE
215
N910143008021
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
215
N910143008009
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
217
N913023008003
NUT HORN TO BRACKET M8
224
A9453200427
LEVER LEFT
224
A9453200527
LEVER RIGHT
227
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
230
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
233
N900331006630
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
239
A9453280063
JOINT R.H. THREAD
245
A9453280163
JOINT L.H. THREAD
251
N304032006004
NUT SPRING-LOADED PUSH ROD
254
N000934006012
NUT L.H. THREAD
260
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
