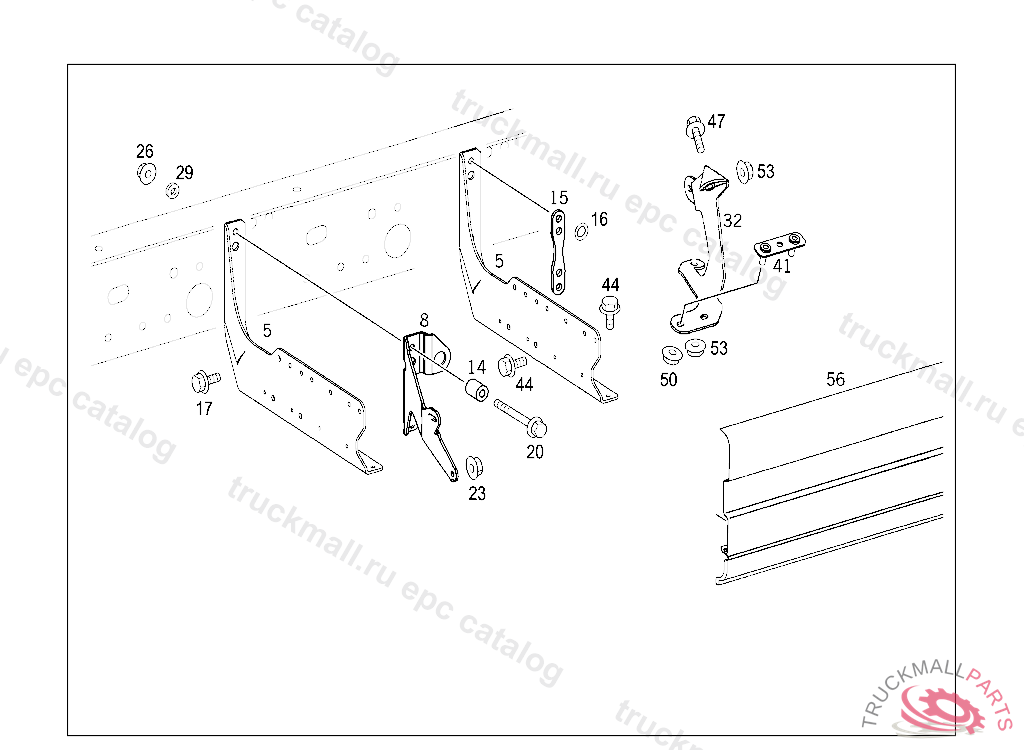

Поз.
Артикул
Описание
5
SUPPORT UNDERRUN PROTECTION,LEFT
5
SUPPORT UNDERRUN PROTECTION,RIGHT
5
8
BRACKET SIDE PROTECTION DEVICE
8
BRACKET SIDE PROTECTION DEVICE
14
SPACER TUBE MOUNTING PARTS
15
PAD LATERAL UNDERRUN PROTECTION
16
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
17
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
17
SCREWM 10X20
20
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
20
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
20
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
20
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
23
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
26
NUT BRACKET TO SIDE MEMBER M12X1.5
32
32
BRACKET LATERAL REAR UNDERRUN PROTECTION
32
32
BRACKET LATERAL REAR UNDERRUN PROTECTION
32
BRACKET LATERAL REAR UNDERRUN PROTECTION
32
BRACKET RIGHT LATERAL UNDERRUN PROTECTION
32
BRACKET LEFT LATERAL UNDERRUN PROTECTION
41
PLATE UNDERRUN PROTECTION TO BRACKET
41
PLATE RIGHT LATERAL UNDERRUN PROTECTION
41
PLATE UNDERRUN PROTECTION TO BRACKET
44
COMBINATION BOLTM 8 X 20
44
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
44
SCREW , Replaced By: N910143008002
44
SCREW BRACKET TO SIDE MEMBER M8X20
44
SCREW PIPE CLAMP
44
SCREW BRACKET TO CAB REAR PANEL M 8X20
47
SCREW STOP TO SUPPORT
50
NUT HORN TO BRACKET M8
53
NUT HORN TO BRACKET M8
56
56
56
