Поз.
Артикул
Описание

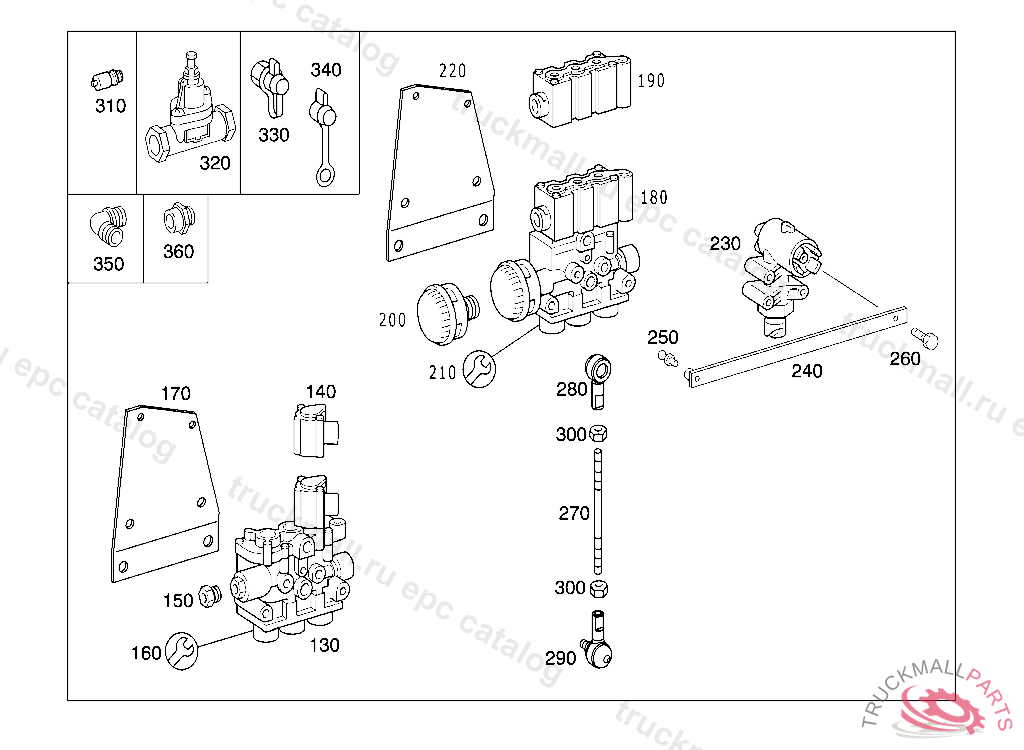

130
VALVE 3/2-WAY,K 154652
140
MAGNET
150
AIR CLEANER
160
REPAIR KIT 3/2-WAY VALVE,K 154652
170
BRACKET SHIFT VALVE TO CROSS MEMBER
180
SOLENOID VALVE SELF-LEVELLING DEVICE,K 186868
190
MAGNET
190
MAGNET ,K 186868
200
MUFFLER TRAILER CONTROL VALVE
210
REPAIR KIT (SOLENOID VALVE),K 186868
220
BRACKET SHIFT VALVE TO CROSS MEMBER
230
TRAVEL SENSOR SELF-LEVELLING DEVICE
240
LEVER TRAVEL SENSOR, TO BE ADAPTED DURING ASSEMBLY
250
BALL STUD. BALL PIVOT TOP B10X4,5 MM
260
SCREW COVER PLATE TO COVER PLATE M 6 X 12
270
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
280
JOINT L.H. THREAD
290
JOINT R.H. THREAD
300
NUT L.H. THREAD
300
NUT SPRING-LOADED PUSH ROD
310
SAFETY VALVE. VALVE PRESSURE RELIEF, REPAIR IMPOSSIBLE
320
VALVE (OVERFLOW VALVE)
320
VALVE (OVERFLOW VALVE), Replaced By: A0054296144
330
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
340
PLUG
350
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
360
FITTING LINE CONNECTION
