Поз.
Артикул
Описание

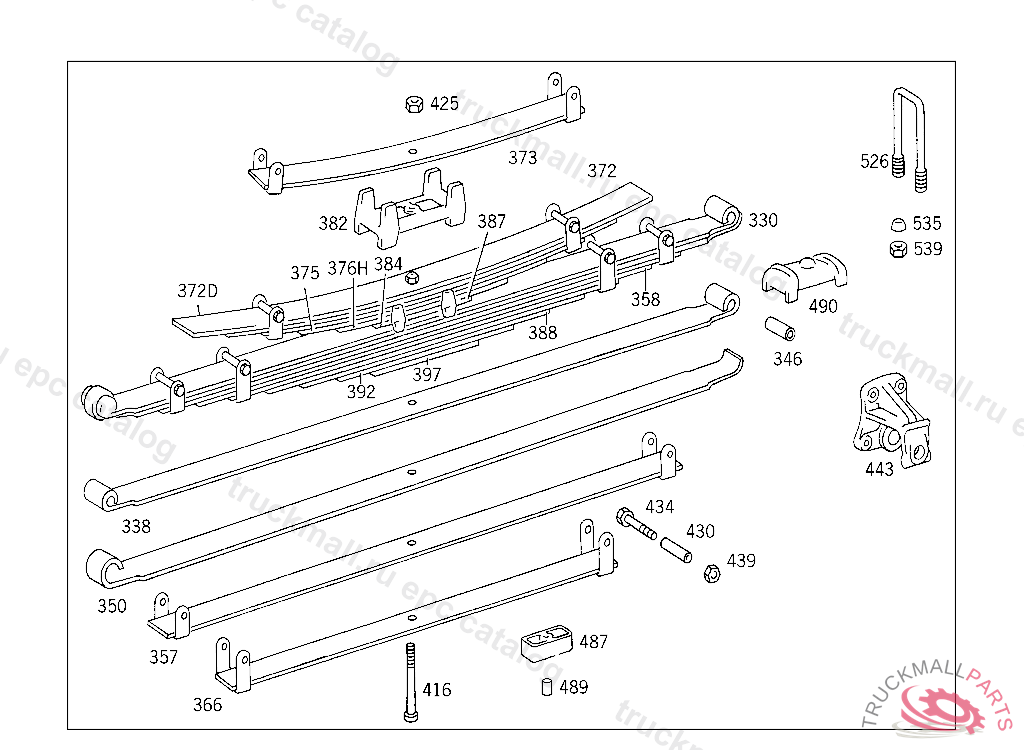

330
REAR SPRING 9-LEAF,WITH 6-LEAF HELPER SPRING, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
338
SPRING LEAF , Replaced By: A3443200293
338
SPRING LEAFNO.1
346
BUSHING
346
BUSHING
350
SPRING LEAFNO.2
357
SPRING LEAFNO.3
357
SPRING LEAF , Replaced By: A3443200393
358
SPRING LEAFNO.4
366
SPRING LEAFNO.5
366
SPRING LEAF , Replaced By: A3443200493
372
HELPER SPRING
375
SPRING LEAFNO.4
384
SPRING LEAFNO.6
384
SPRING LEAFNO.6
388
SPRING LEAFNO.7
392
SPRING LEAFNO.8
397
SPRING LEAFNO.9
416
SPRING BOLTM 12X1,75X225
425
NUT SPRING BOLT
430
SPACER TUBE , Replaced By: A3140720253
430
SPACER TUBE EXHAUST PIPE TO BRACKET
434
SCREW
439
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
487
SHIM
489
DOWEL PIN BETWEEN SPRING AND FRONT AXLE
490
SPRING CLAMPING PLATE , Replaced By: A3833250031
490
SPRING CLAMPING PLATE , Replaced By: A3833250031
490
PLATE , Replaced By: A6953257031
490
SPRING CLAMPING PLATE , Replaced By: A3833250031
535
WASHER FRONT SPRINGS TO FRONT AXLE
539
NUT SUPPORT TO SPARE WHEEL CARRIER
999
DOWEL PIN , Replaced By: A3449917160
999
DOWEL PIN , Replaced By: A3449917260
999
LOCK
999
REPAIR KIT ,464616
999
SPRING LEAF NO.1, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SPRING LEAF NO.2, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SPRING LEAFNO.5
999
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 31 MM
999
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
COTTER PIN STRAP TO SUPPORT
999
COTTER PIN COUPLING FLANGE TO P.T.O.
999
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET
999
NUT , 030,032,033,040,041 FROM CHASSIS 488608, 132,133,140,141 FROM CHASSIS 522569
999
NUT , Replaced By: N913004020003
