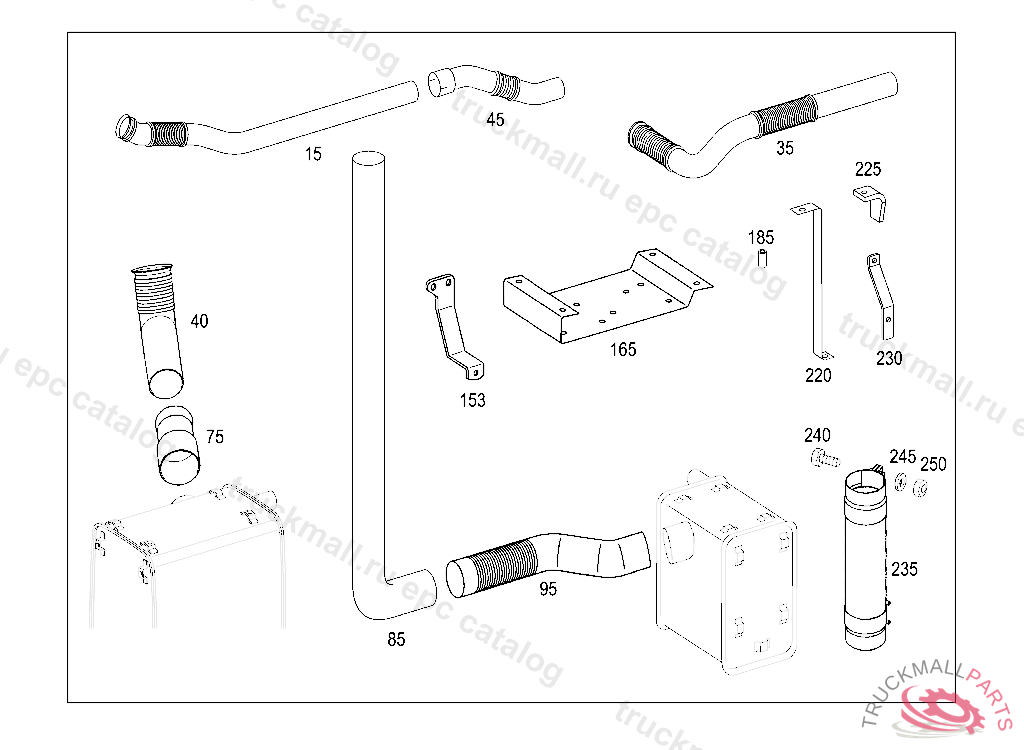

Поз.
Артикул
Описание
15
EXHAUST PIPE (CONNECTING PIPE)
15
EXHAUST PIPE (CONNECTING PIPE)
35
EXHAUST PIPE (CONNECTING PIPE)
35
EXHAUST PIPE (CONNECTING PIPE)
35
EXHAUST PIPE (CONNECTING PIPE)
40
EXHAUST PIPE (CONNECTING PIPE)
45
REAR EXHAUST PIPE (CONNECTING PIPE)
45
EXHAUST PIPE (CONNECTING PIPE), Replaced By: A6624922704
45
EXHAUST PIPE (CONNECTING PIPE), Replaced By: A6624905019
75
FRONT EXHAUST PIPE (CONNECTING PIPE)
85
FRONT EXHAUST PIPE (CONNECTING PIPE)
95
FRONT EXHAUST PIPE (CONNECTING PIPE)
153
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
153
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
165
BRACKET AT LEFT SIDE MEMBER
165
BRACKET MOUNTING PARTS
185
SPACER TUBE TRAILER COUPLING TO REAR CROSS MEMBER
185
SPACER TUBE MOUNTING PARTS, Replaced By: A6458910653
185
SPACER TUBE , Replaced By: A4403220150
185
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
220
BRACKET MOUNTING PARTS
225
CONSOLE MOUNTING PARTS
230
CONSOLE MOUNTING PARTS
235
WRAPPED TUBING CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST
235
WRAPPED TUBING CONNECTION OF EXHAUST PIPES WITH EACH OTHER
235
FLEXIBLE METAL TUBE FRONT
235
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
240
HEXAGON HEAD BOLTM10X1X50
245
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
250
NUT
999
FRONT EXHAUST PIPE (CONNECTING PIPE)
999
EXHAUST PIPE REAR
999
EXHAUST PIPE CENTRAL
999
EXHAUST PIPE FRONT
