Главная
›
Mercedes
›
VAN
›
314, 308CDI, 311CDI, 313CDI, 316CDI
›
903.661 FROM IDENT-NR. R337627, 5337627, A901274
›

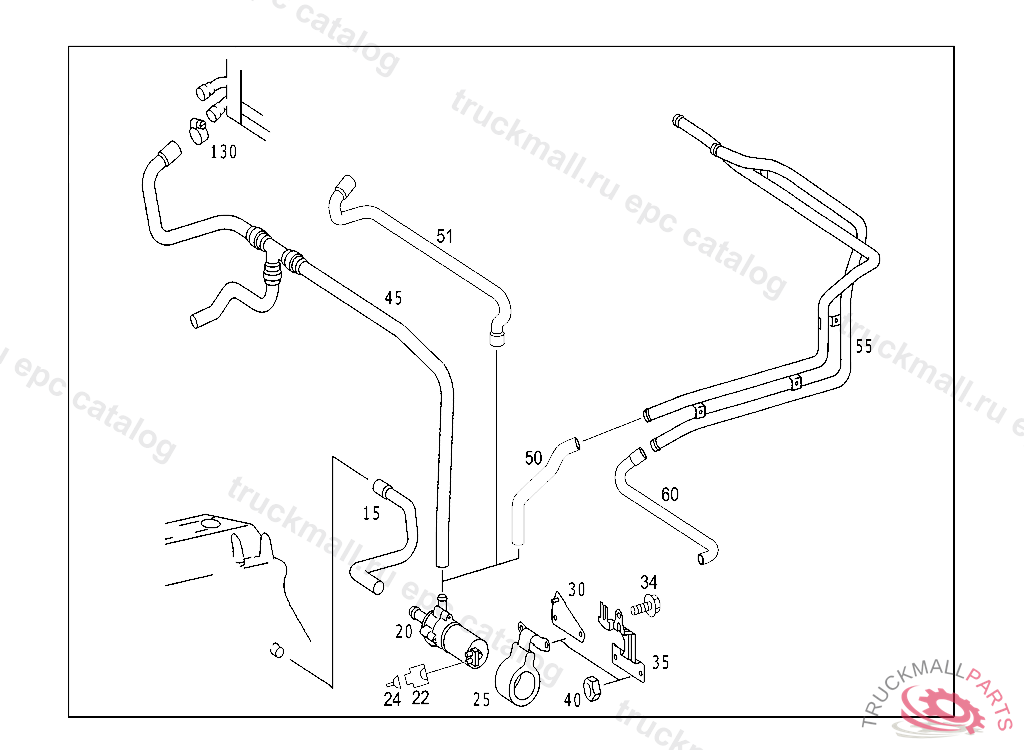

83 HEATING/VENTILATION
›
185 HOT WATER CONNECTION IL. 2
Mercedes N304017006018 - Болт
314, 308CDI, 311CDI, 313CDI, 316CDI 903.661 FROM IDENT-NR. R337627, 5337627, A901274
83 HEATING/VENTILATION - 185 HOT WATER CONNECTION IL. 2
Поз.
Артикул
Описание
15
A9018323423
HOSE
15
A9018325923
HOSE
15
A9018325123
HOSE FEED,BETWEEN ENGINE & LEFT REAR HEATER
15
A9018326723
HOSE
20
A0018351364
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
22
A0115450128
PIN BUSHING HOUSING BIPOLAR
24
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
25
A9018300514
BRACKET
30
A9018300414
BRACKET
34
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
35
A9018320214
BRACKET
35
N910112006001
NUT , Replaced By: N913023006001
40
N910112006001
NUT , Replaced By: N913023006001
45
A9018324123
HOSE FROM CIRCULATION PUMP TO HEATER
45
A9018326123
HOSE
50
A9018324623
HOSE FROM RECIRCULATING PUMP TO HEATING PIPE
50
A9018326023
HOSE FROM RECIRCULATING PUMP TO HEATING PIPE
51
A9018322623
HOSE FEED TO AUXILIARY HEATER
55
A9018301515
PIPELINE. PIPE LINE
55
A9018302715
PIPE LINE
60
A9018324723
HOSE AUXILIARY HEATER, FEED LINE TO HEATERTUBE
60
A9018324823
HOSE AUXILIARY HEATER, FEED LINE TO HEATERTUBE
60
A9018328023
HOSE
60
A9018301296
HOSE
130
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
130
N000000000668
CLAMP25-40X13 MM
