Главная
›
Mercedes
›
VAN
›
314, 308CDI, 311CDI, 313CDI, 316CDI
›
903.661 FROM IDENT-NR. R337627, 5337627, A901274
›
31 FRAME/TRAILER COUPLING
›
420 TRAILER COUPLING IL. 1

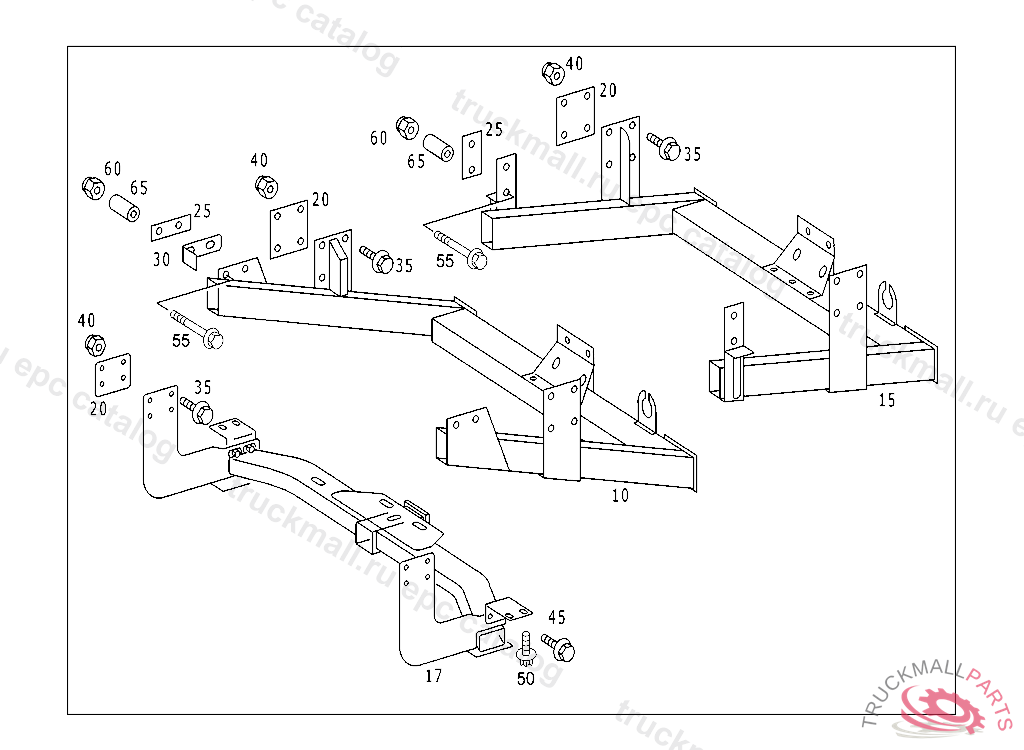

Mercedes A9033150343 - Траверса
314, 308CDI, 311CDI, 313CDI, 316CDI 903.661 FROM IDENT-NR. R337627, 5337627, A901274
31 FRAME/TRAILER COUPLING - 420 TRAILER COUPLING IL. 1
Поз.
Артикул
Описание
10
A9033150343
CROSS STRUT TRAILER COUPLING
17
A9013150743
CROSS MEMBER TRAILER COUPLING
20
A9013150021
PLATE 0
25
A9033150038
BASE PLATE AT BRACKET
30
A9033150021
PLATE HITCHING MECHANISM TO SIDE MEMBER
35
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
40
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
45
N910106010008
SCREW. HEXAGON HEAD BOLTM10X25
50
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
55
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
60
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
A9033110088
SLEEVE HITCHING MECHANISM TO SIDE MEMBER
