Главная
›
Mercedes
›
VAN
›
314, 308CDI, 311CDI, 313CDI, 316CDI
›
903.671 FROM IDENT-NR. R337627, 5337627, A901274
›

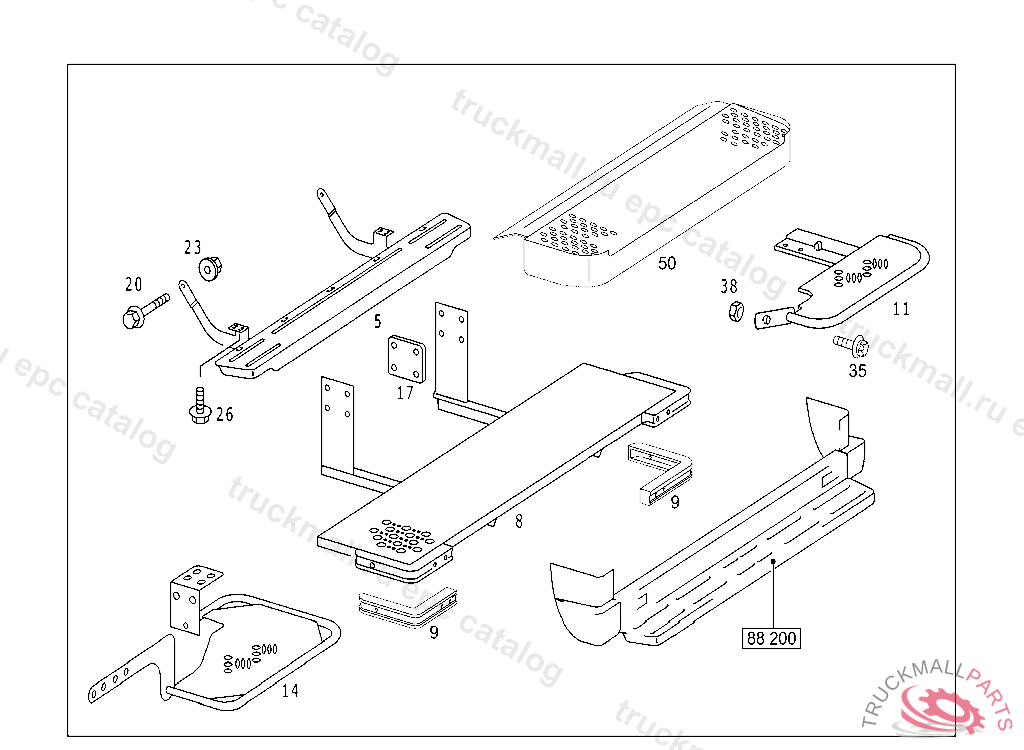

52 SHEET METAL PARTS/AIR INTAKE
›
270 ROCKER PANEL
Mercedes A9015200731 - Подножка
314, 308CDI, 311CDI, 313CDI, 316CDI 903.671 FROM IDENT-NR. R337627, 5337627, A901274
52 SHEET METAL PARTS/AIR INTAKE - 270 ROCKER PANEL
Поз.
Артикул
Описание
5
A9015200131
RUNNING BOARD WHEELBASE: 3000MM
5
A9015201031
RUNNING BOARD
8
A9015200731
RUNNING BOARD WIDE
8
A9015200231
RUNNING BOARD WHEELBASE: 3550MM
9
A0009982641
RUBBER BUMPER
11
A9015200431
RUNNING BOARD USED WITH TRAILER COUPLING
14
A9015200531
RUNNING BOARD USED WITH TRAILER COUPLING
17
A9013150021
PLATE 0
20
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
23
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
26
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
26
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
26
N910106010008
SCREW. HEXAGON HEAD BOLTM10X25
35
N910143008002
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
35
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
38
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
