Mercedes A9018360133 - Экран

314, 308CDI, 311CDI, 313CDI, 316CDI 903.671 FROM IDENT-NR. R337627, 5337627, A901274

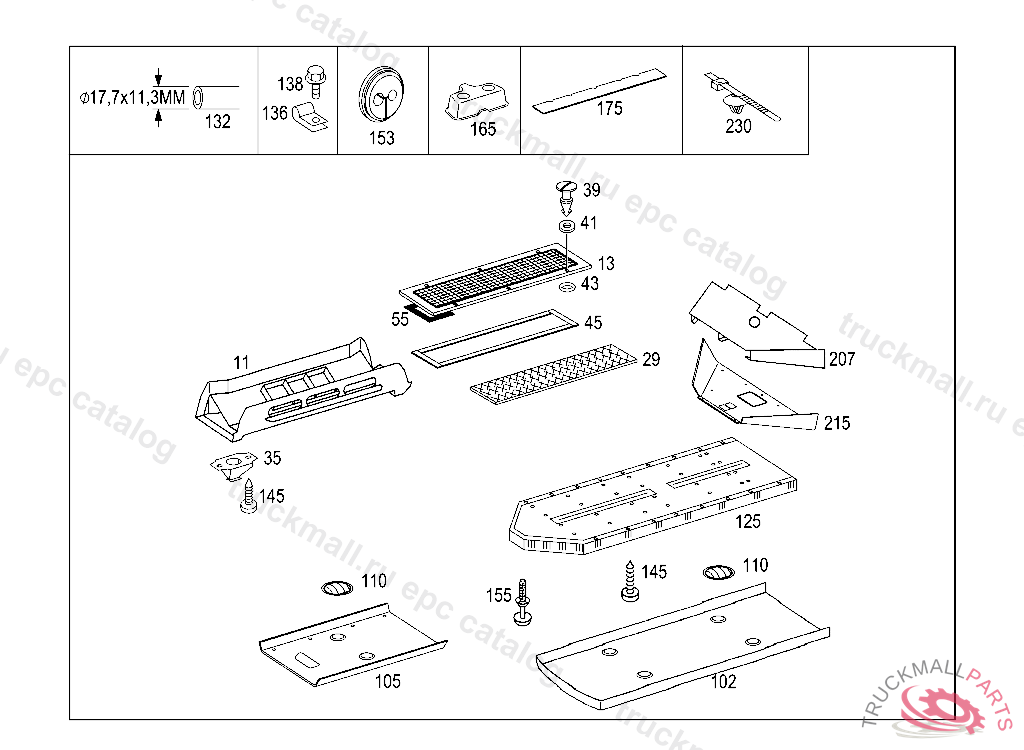

83 HEATING/VENTILATION - 210 AIR DUCT TO ROOF IL. 3

Поз.
Артикул
Описание
11
A9018300458
PANELING
11
A9018300558
PANELING
13
A0008362018
PROTECTIVE GRILLE , R 75425820041029575425820041029
29
A0018350647
FILTER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. R 63356620040227563356620040227, Replaced By: A0028350447
29
A0028350447
FILTER MAT
35
A0008354434
SPRING CLIPTO A 628 830 65 61
39
A0008310278
CATCH. FASTENER
41
A0059904240
WASHER
43
A0008360199
RING FASTENER, NOT USED
45
A0006930287
BAND. STRAP
55
A0029891398
SEALING STRIP
102
A9018302044
AIR DUCT FRONT
105
A9018302144
AIR DUCT REAR
110
A0008303054
NOZZLE REAR AIR DUCT
125
A9018302244
AIR DUCT INSIDE PART
132
A6908310088
HOSE WATER DRAIN,REAR LEFT, A 93986620051031 TO BE PROCURED FROM MBA ONLY
132
A9018310088
HOSE CONDENSED WATER DRAIN
136
N000000000948
CLAMP ENGINE RETURN LINE 12-18X9 MM
138
N000000000530
TAPPING SCREW
145
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
153
A9018320098
SEAL
155
A9019900192
RIVET PANELLING TO ROOF RAIL
165
A9018360033
SCREENING LAMP COVER
175
A9018360133
SCREENING LAMP COVER
207
A6908309245
AIR DUCT ADAPTER FITTING
215
A9018300045
AIR DUCT ADAPTER FITTING
230
A6509970090
LOOM TIE HOSE TO HEATING PIPE
