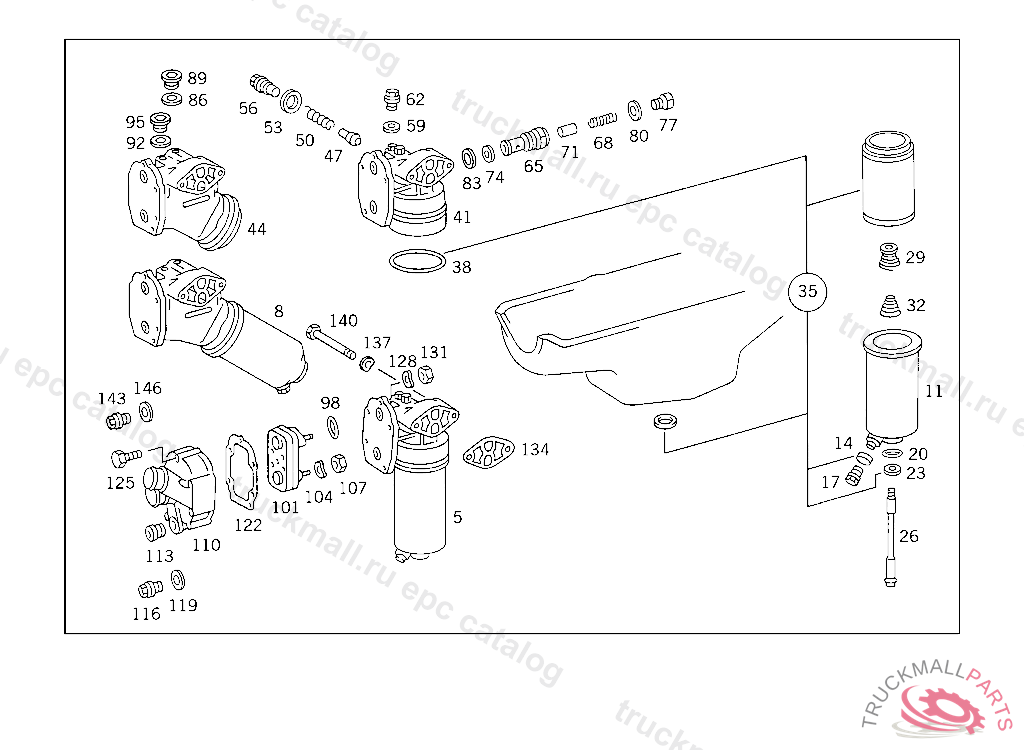

Поз.
Артикул
Описание
5
OIL FILTER
5
OIL FILTER , Replaced By: A3451800210
11
FILTER BOWL
14
SEAL RING VALVE TO VALVE,K 025179
17
SCREW PLUG SHIFTING SHAFT DETENT
17
SCREW PLUG , Replaced By: A4429970030
20
GASKETTO 366 180 09 10
23
SEAL RING FROM FUEL TANK TO FUEL TANK
26
SCREW
26
SCREW , Replaced By: A0001843571
29
SPRING RETAINER
32
SPRING
35
FILTER ELEMENT RUNNING-IN FILTER,USED ALSO AFTERWARDS
35
FILTER ELEMENT WITH GASKETS
35
GASKET KIT , RUNNING-IN FILTER, Replaced By: A3451840025
38
GASKET FILTER HOUSING TO FILTER HEAD
41
BRACKETTO 345 180 16 10
47
VALVE
50
SPRING BY-PASS VALVE
53
SEAL RING OIL FILLING AND OIL DRAIN
56
SCREW PLUG
59
SEAL RING SOLENOID VALVE A 18X24
62
SCREW PLUG SHIFTING SHAFT DETENT
62
SCREW PLUG , Replaced By: A4429970030
65
VALVE OVERFLOW VALVE
68
SPRING
71
PISTON
74
SEAL RING15X3 MM
77
SCREW PLUG
80
SEAL RING
83
SEAL RING OIL DRAIN 30X36 MM
98
GASKET , Replaced By: A3641840380
98
SEAL RING , Replaced By: A3601840380
101
OIL COOLER , UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
101
OIL COOLER ,036680
101
OIL COOLER ,036680
101
OIL COOLER
104
SPRING WASHER CABLE TO ALTERNATOR
107
NUT LEVER TO SHIFTING SHAFT
110
HOUSING ,036680
110
HOUSING OIL COOLER
113
THREADED INSERT
116
SCREW PLUG WATER DRAIN
119
SEAL RING ON OIL PUMP HOUSING
122
GASKET , Replaced By: A3551880180
125
SCREW , Replaced By: N304014008007
128
SPRING WASHER CABLE TO ALTERNATOR
131
NUT LEVER TO SHIFTING SHAFT
134
GASKET OIL COOLER SUPPORT TO CYLINDER CRANKCASE
134
GASKET , Replaced By: A3551840780
137
SPRING WASHER CAB FLOOR
140
SCREW BEARING TUBE TO TRANSMISSION CASE TOP COVER M12X105,679695
