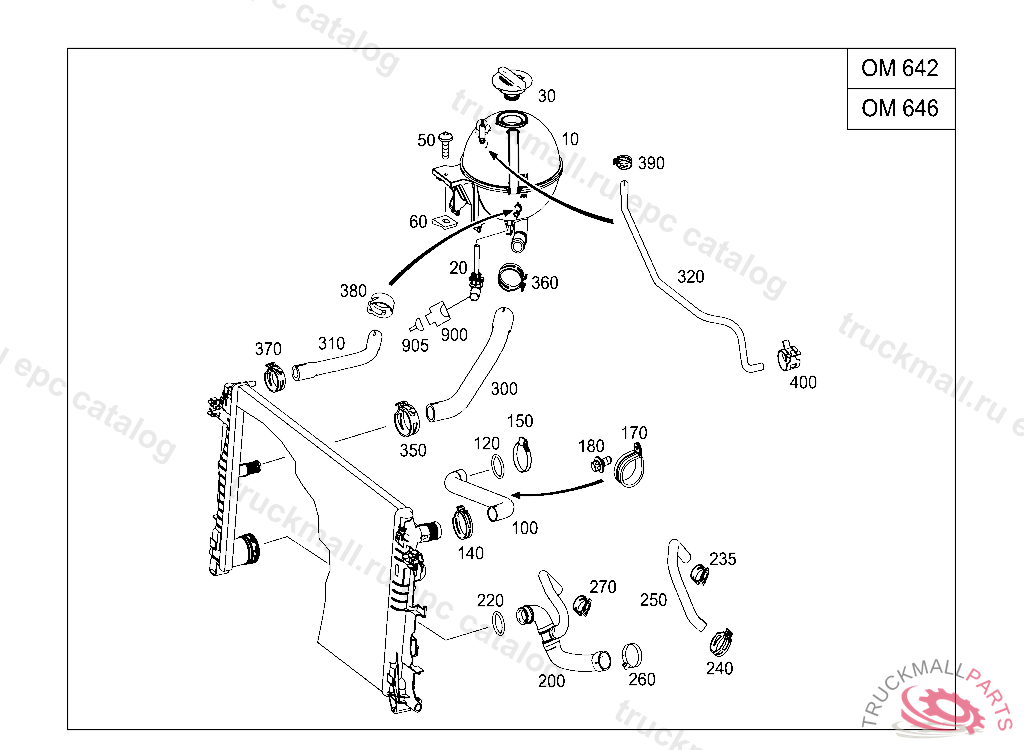

Поз.
Артикул
Описание
10
DASHPOT
10
DASHPOT
20
SWITCH,AUTOMATIC COOLING WATER LEVEL INDICATOR
30
RADIATOR CAP
50
HEXALOBULAR BOLT BUMPER COVERING M6X20
60
LOCK NUT. SPRING NUT MOUNTING PARTS
100
HOSE TOP
100
HOSE TOP
100
HOSE TOP
100
HOSE TOP
100
HOSE TOP
100
HOSE TOP
120
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
120
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
120
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
140
CLAMP HOSE TO THERMOSTAT
150
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
170
CLAMP SUCTION LINE TO CROSS MEMBER
180
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
200
HOSE BOTTOM
200
HOSE BOTTOM
200
HOSE BOTTOM
200
COOLANT HOSE BOTTOM
200
HOSE BOTTOM
200
HOSE BOTTOM
200
HOSE BOTTOM
200
HOSE BOTTOM
200
HOSE TO RADIATOR BOTTOM
200
HOSE BOTTOM, Replaced By: A9065011482
220
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
235
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
240
SPRING HOSE CLAMP HOSE FASTENING,230301
250
HOSE BOTTOM
250
HOSE BOTTOM
250
HOSE BOTTOM
260
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
270
CLAMP COOLANT HOSE TO COOLANT LINE 23-26 MM
270
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
300
HOSE FILLING HOSE
310
HOSE BREATHING
320
HOSE ENGINE BREATHING
320
HOSE ENGINE BREATHING
320
HOSE ENGINE BREATHING
320
HOSE ENGINE BREATHING, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 54397620130214, Replaced By: A9065014482
320
COOLANT HOSE ENGINE BREATHING
350
HOSE CLAMP HOSE ATTACHMENT 27 MM
360
SPRING HOSE CLAMP HOSE FASTENING,230301
370
SPRING HOSE CLAMP HOSE TO COOLING PIPE, N 50802320120118 E 06339420120403
380
SPRING HOSE CLAMP HOSE TO COOLING PIPE, N 50802320120118 E 06339420120403
390
SPRING HOSE CLAMP PURGE LINE TO INTAKE MANIFOLD
400
CLAMP14 MM
900
SOCKET HOUSING. PIN BUSHING HOUSING PRESSURE CONVERTER THROTTLE VALVE
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
GASKET. BLIND PLUG BLUE
905
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
