Mercedes A0009902211 - Болт

324,309CDI,311CDI,313CDI,315CDI,318CDI 906.633

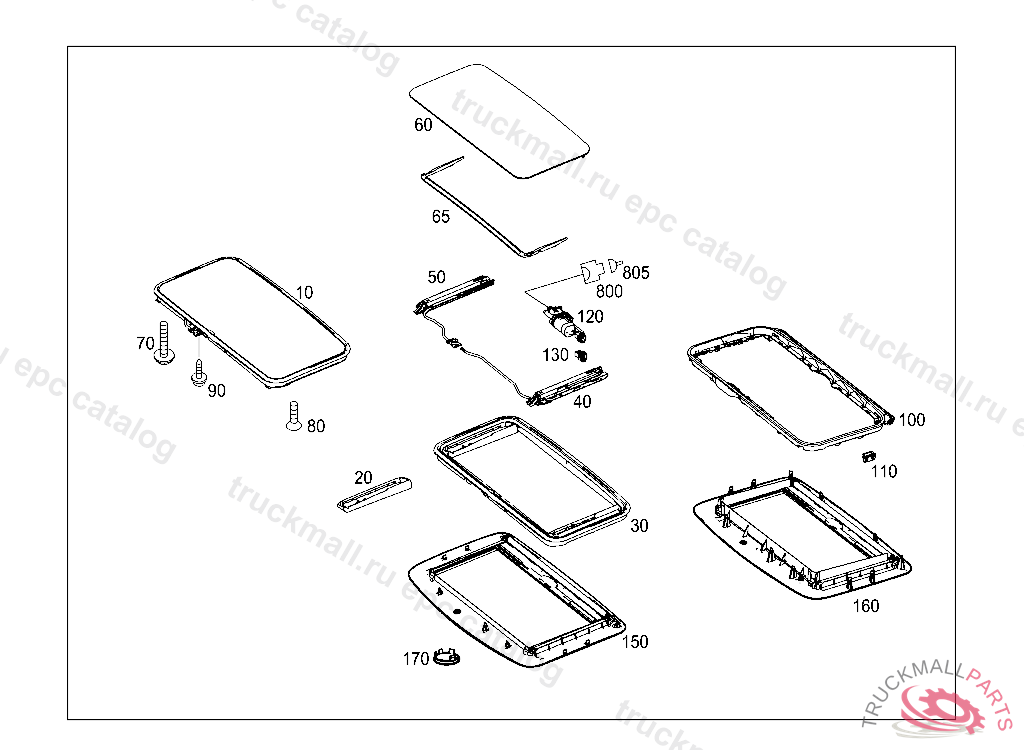

78 SLIDING ROOF - 025 ELECTRIC GLASS TILTING ROOF

Поз.
Артикул
Описание
10
A9067800005
SLIDING ROOF
20
A0007800010
RAIL
30
A0007800029
FRAME
40
A0007800075
RAIL LEFT
50
A0007800175
RAIL RIGHT
60
A0007800221
COVER
65
A0007800044
WIND DEFLECTOR
70
A0019846529
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
80
A0019848929
BOLT. SCREW TAKE-UP DEVICE, F 136790(COUPE) T 000731(COUPE), T 054272(CABRIO) EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE TO T 000730(COUPE), T 054271(CABRIO), F 136789(COUPE) WITH CODE 801
90
A0009902211
BOLT BACKREST SHELL TO BACKREST FRAME M5X12 TX25
100
A9067820251
FRAME
110
A0009910471
CLIP FASTENING, LEFT ARMREST
110
A0009917771
TS MOUNTING CLIP (PARTS KIT), Replaced By: A0009910471
120
A9067800007
DRIVE
130
A0375452028
PLUG6 PIN SLK2.8,X25/4
150
A9067840044
PANEL
160
A9067840144
PANEL
170
A0007840056
COVER EMERGENCY CONTROL
800
A2205455228
PIN BUSHING HOUSING LEFT POWER WINDOW MOTOR 6-PIN SLK2.8,M10/1
800
A0135451426
CONTACT SPRING0.22-0.5 MM2 SLK2.8
805
A0135451426
CONTACT SPRING0.22-0.5 MM2 SLK2.8
805
A0135451626
CONTACT SPRINGTO A 038 545 76 28
