Mercedes A0029905700 - Болт

324,309CDI,311CDI,313CDI,315CDI,318CDI 906.633

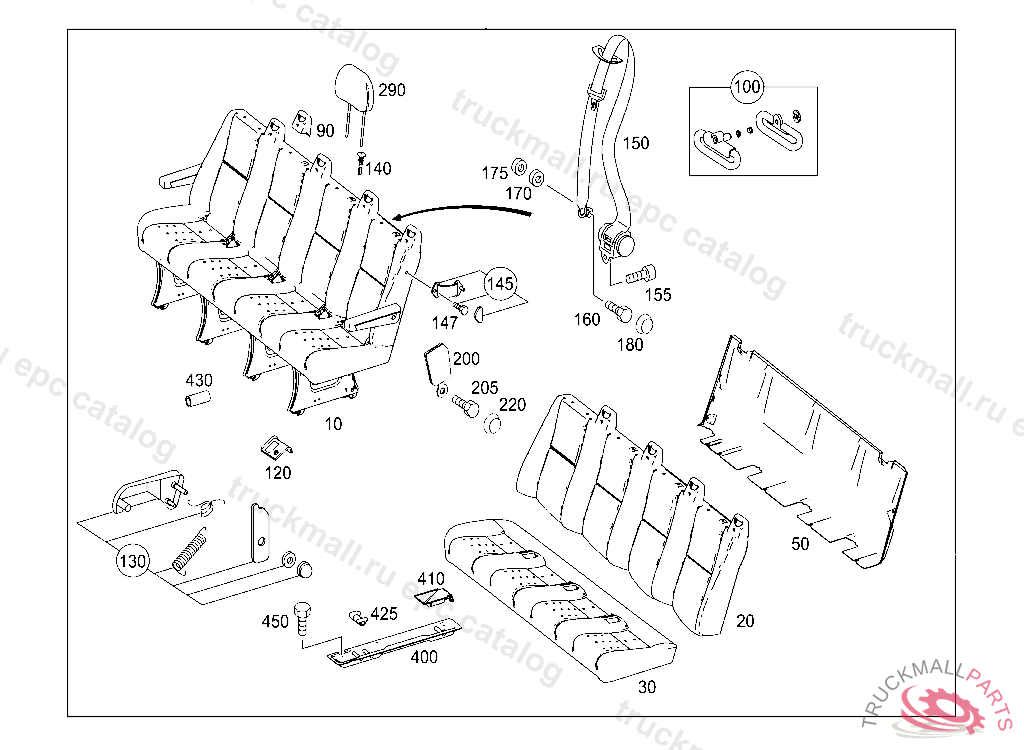

95 PASSENGER SEATS, MULTI-PASSENGER SEAT - 080 QUADRUPLE OCCUPANCY SEAT

Поз.
Артикул
Описание
10
A0009500805
QUADRUPLE THIRD ROW OF SEATS
20
A0019501531
BACKREST
30
A0009508121
SEAT CUSHION
50
A0009511321
COVER BACKREST
90
A0009510821
COVER SEAT BELT GUIDE
100
A0008601182
BELT DEFLECTOR WITH MOUNTING MATERIAL
120
A0009510411
PLATE SEAT BASE, Replaced By: A9069210097
130
A0009500074
TAKE-UP DEVICE FOOTREST
140
A0009700141
GUIDE , 9E80QFT906A0020 BLACK
145
A0009500114
BRACKET WALL ATTACHMENT
147
A0029905700
BOLT SEAT FRAME FASTENING, NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
150
A9068602585
SEAT BELT RIGHT
150
A9068603485
SEAT BELT LEFT
155
A0019849829
BOLT BELT END FITTINGS, RIGHT 7/16" X 22 MM
160
A0089900104
BOLT END FITTING,LEFT
170
A0009928210
BUSHING BELT END FITTING
175
A0039928301
BUSHING BELT END FITTING
180
A6319973286
PLUG
200
A9018601169
FASTENER DOUBLE SEAT,CENTER, ONLY FOR USE WITH DOUBLE SEAT (CODE S23)
205
A0019849829
BOLT BELT END FITTINGS, RIGHT 7/16" X 22 MM
220
A6319973286
PLUG
290
A9069701250
HEADREST RIGHT SEAT
290
A9069701050
HEAD RESTRAINT LEFT SEAT
400
A0009500274
TAKE-UP DEVICE BENCH SEAT, BOTTOM
400
A9069500174
FIXTURE BENCH SEAT, BOTTOM, Replaced By: A0009500274
410
A9069590078
COVER TAKE-UP DEVICE, 9E80QFT906A0001 BLACK, Replaced By: A0009590978
410
A0009590978
COVER TAKE-UP DEVICE, 9E80QFT906A0001 BLACK
425
A9069590082
INSULATION SEAT BASE REAR MOUNT, Replaced By: A0009590878
425
A0009590878
COVER REAR MOUNT
430
A9019970782
HOSE
450
A0009907203
BOLT MOUNTING, SUPPORT
