Поз.
Артикул
Описание

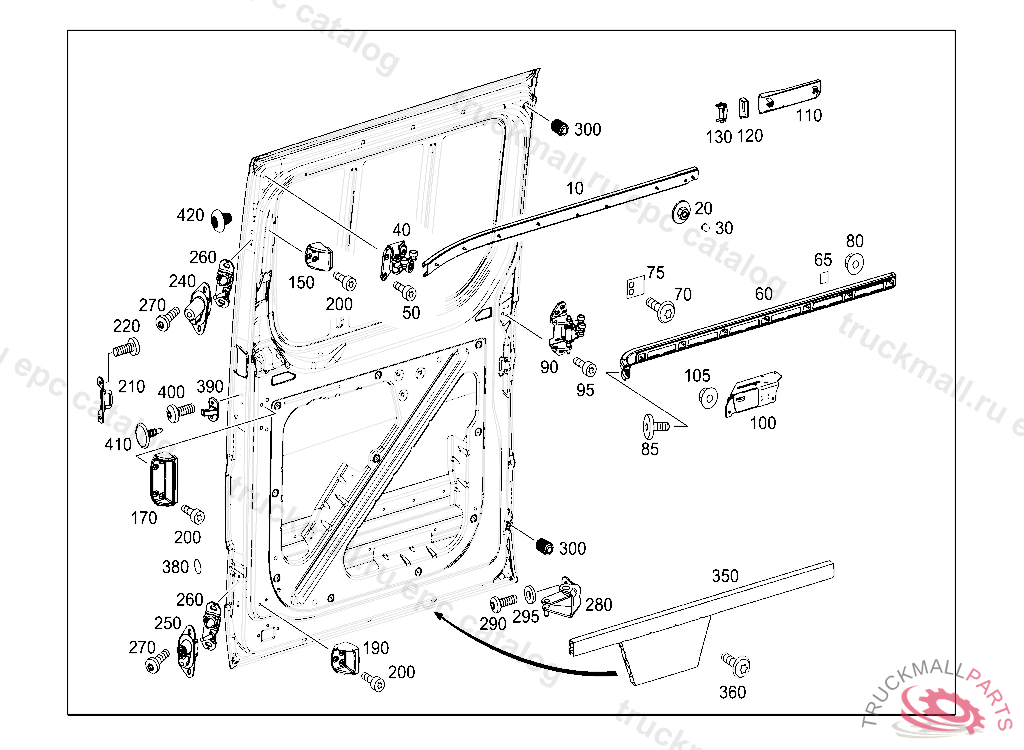

10
RAIL TOP RIGHT
10
RAIL TOP LEFT
10
RAIL TOP LEFT
10
RAIL TOP RIGHT
20
NUT FENDER ON SIDE PANEL M6
30
PROTECTIVE CAP. PROTECTION CAP PARTITION PANEL TO GRIP RAIL
40
DOOR SLIDE MECHANISM TOP RIGHT
40
DOOR SLIDE MECHANISM TOP LEFT
50
HEXALOBULAR BOLTM8X16
50
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
60
GUIDE RAIL LEFT
60
GUIDE RAIL
60
GUIDE RAIL
60
GUIDE RAIL LEFT
65
BASE TO GUIDE RAIL
75
PAD GUIDE RAIL TO BODY
80
NUT FENDER ON SIDE PANEL M6
85
BOLT RAIL ATTACHMENT,RIGHT M6X16
90
DOOR SLIDE MECHANISM CENTRAL LEFT
90
DOOR SLIDE MECHANISM CENTRAL RIGHT
90
DOOR SLIDE MECHANISM CENTRAL LEFT
90
DOOR SLIDE MECHANISM CENTRAL RIGHT
95
HEXALOBULAR BOLT BOTTOM LEFT SLIDING BASE
95
HEXALOBULAR BOLT RIGHT CENTER SLIDING BASE M8X20
95
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
95
HEXALOBULAR BOLT HEIGHT ADJUSTMENT,LEFT M8X16
100
STOP LEFT
100
STOP RIGHT
105
NUT BRACKET TO BODY SHELL M6
110
COVER , 9051QFT900A0030 BLACK
110
COVER LEFT, 9051QFT906A0100 BLACK
120
COVER , 9051QFT900A0030 BLACK
120
COVER LEFT, 9051QFT906A0100 BLACK
130
CAP RAIL,RIGHT, 9051QFT900A0030 BLACK
130
CAP , 9051QFT906A0100 BLACK
150
DOOR RETAINER TOP RIGHT
150
STOP TOP LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. S 48055320100531 E 03549220100604, Replaced By: A9067330472
150
DOOR RETAINER CENTRAL LEFT
170
DOOR RETAINER CENTRAL LEFT
170
STOP CENTRAL LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. S 48055320100531 E 03549220100719, Replaced By: A9067330572
190
STOP BOTTOM LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. S 48055320100531 E 03549220100719, Replaced By: A9067330672
190
DOOR RETAINER BOTTOM LEFT
200
SCREW W SOCKET DRIVEM8X16, T45
200
HEXALOBULAR BOLT HEIGHT ADJUSTMENT,LEFT M8X16
200
HEXALOBULAR BOLT BOTTOM LEFT SLIDING BASE
200
HEXALOBULAR BOLT GAS-FILLED PRESSURE SPRING M8X30
210
LOCKING MECHANISM LOCKING EYES, LEFT
220
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
220
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
240
SLIDE RIGHT TOP
250
SLIDING BLOCK B-PILLAR BOTTOM RIGHT
260
GUIDE WEDGE LEFT, S 15706220070124 A 96600720070404
260
GUIDE WEDGE LEFT, S 15706120070124 A 96600620070404, Replaced By: A9067660262, +001A9067660261
270
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
270
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
280
BRACKET LEFT
280
BRACKET LEFT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9066310500
280
BRACKET RIGHT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9066310600
280
BRACKET RIGHT CATCH
290
HEXALOBULAR BOLT. SCREW HAND BRAKE VALVE TO BRACKET M 8X12
290
HEXALOBULAR BOLTM8X16
295
WASHER PUMP TO CONSOLE
300
BUFFER STOP
300
RUBBER BUFFER REAR LID STIFFENING
350
REINFORCEMENT RIGHT
350
REINFORCEMENT LEFT
360
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X20
380
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
390
HOOK AT DOOR RIGHT
400
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
410
PLUG
420
STOP PLUG SIDE MEMBER,REAR M8
