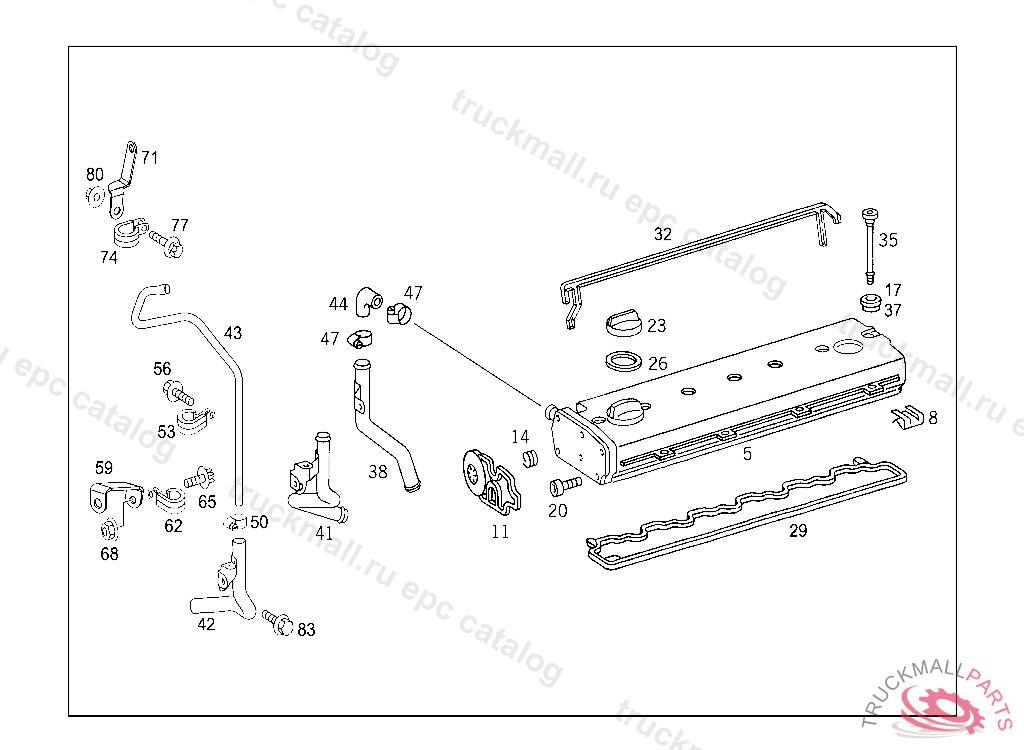

Поз.
Артикул
Описание
5
CYLINDER HEAD COVER , CYLINDER HEAD COVER (PLASTIC VERSION)
8
LOCK ATTACHMENT NOISE ENCAPSULATION
11
DIAPHRAGM
14
SPRING
17
INSERT CYLINDER HEAD COVER TO CYLINDER HEAD, CYLINDER HEAD COVER (PLASTIC VERSION)
20
SCREW
23
FILLER CAP
23
FILLER CAP FILLER CAP, Replaced By: A0000101285
23
FILLER CAP , Replaced By: A0000101485
23
CAP OIL REFILLING
23
CAP , Replaced By: A1110180302
23
CAP FILLER CAP, 601.941 10/50,20/60 191579 EXCEPT FOR 186802-188874
26
GASKET , Replaced By: A1020180380
26
GASKET
26
GASKET FILLER CAP 47.5X59 MM, TO 111 018 03 02
29
GASKET , CYLINDER HEAD COVER (PLASTIC VERSION)
32
GASKET , CYLINDER HEAD COVER (PLASTIC VERSION)
35
SCREW CYLINDER HEAD COVER TO CYLINDER HEAD
37
GASKET CYLINDER HEAD COVER TO CYLINDER HEAD, CYLINDER HEAD COVER (METAL VERSION)
41
BREATHER PIPE
42
BREATHER PIPE
43
BREATHER PIPE
43
BREATHER PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 526388, Replaced By: A9060181712
44
HOSE , Replaced By: A9060180082
44
HOSE BREATHER PIPE TO CYLINDER HEAD COVER,V 207570
47
CLAMP HOSE FASTENING 28-35 MM,V 207570
47
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
50
HOSE CLAMP LINE MOUNTING
53
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
56
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
59
BRACKET VENT LINE TO OIL COOLER
62
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
65
SCREW BRACKET TO SIDE MEMBER M8X20
68
NUT HORN TO BRACKET M8
71
BRACKET
74
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
77
SCREW BRACKET TO SIDE MEMBER M8X20
80
NUT ENGINE MOUNTING M8
83
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
