Mercedes A0009905304 - Болт М8х75

OM 924 LA 924.914

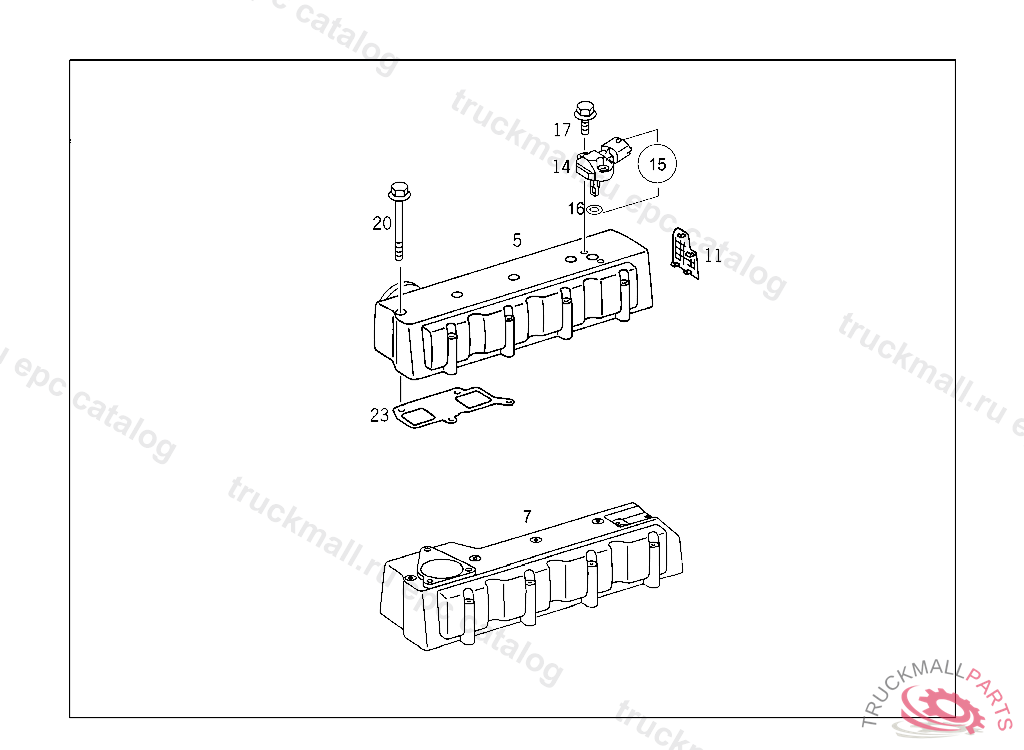

01 ENGINE HOUSING - 075 CYLINDER HEAD,VALVES,GASKET KIT IL. 3

Поз.
Артикул
Описание
5
A9040901654
INTAKE MANIFOLD (CHARGING AIR ELBOW)
5
A9040980217
HOUSING
11
A9060980443
COVER ,*0313293
11
A9060980143
COVER
14
A0041531828
SENDER UNIT CHARGE AIR PRESSURE AND CHARGE AIR TEMPERATURE,*0068830 UP TO ENGINE 106266 ORDER ADDITIONALLY: A 541 150 42 33
15
A0041537028
SENDER UNIT CHARGE AIR PRESSURE AND CHARGE AIR TEMPERATURE
16
A1408320699
RING
17
N910105006006
SCREW BRACKET AND CLAMP M6X20
20
A0159900001
SCREW CHARGING AIR ELBOW TO CYLINDER HEAD M 8X1.25X73,*0350588
20
A0009905304
SCREWTO 001 477 20 01,001 477 21 01
20
N910105008028
SCREW , Replaced By: N910105008007
20
N000000002524
HEXAGON HEAD BOLT. SCREW FAN TO WATER PUMP PULLEY M 8X75
23
A9061410180
GASKET CHARGING AIR ELBOW TO CYLINDER HEAD
23
A9061410480
GASKET CHARGING AIR ELBOW TO CYLINDER HEAD
