Mercedes A9061503570 -

OM 926 LA - EURO 5 926.996

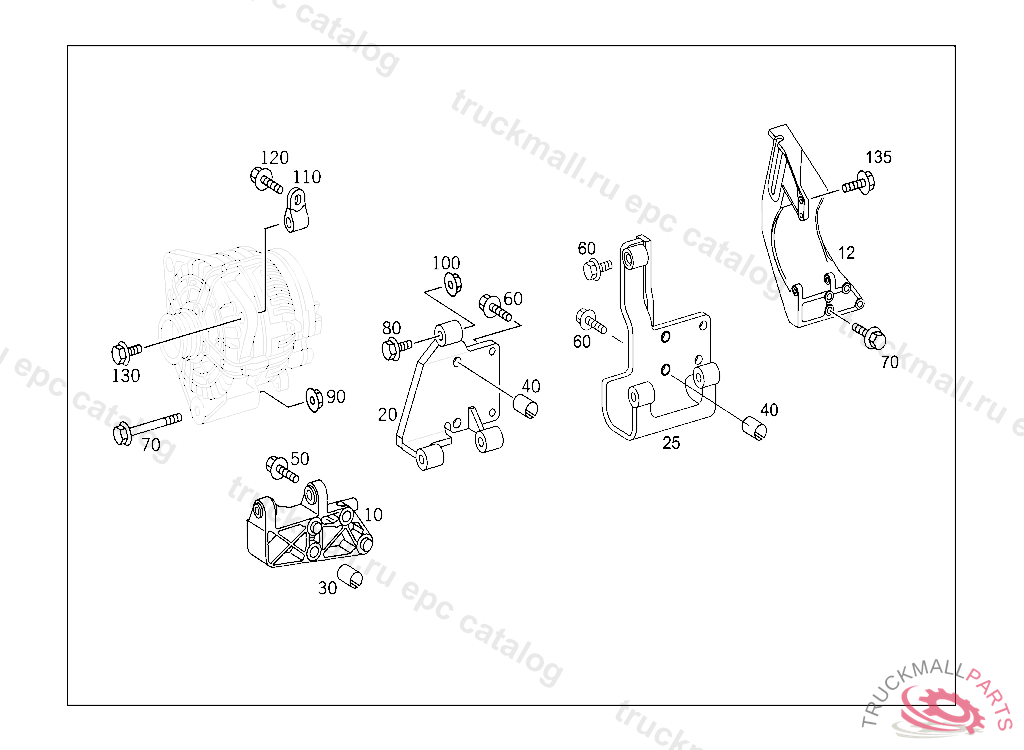

15 ENGINE ELECTRICAL EQUIPMENT - 045 ATTACHMENT PARTS FOR STARTING MOTOR & ALTERNATOR

Поз.
Артикул
Описание
12
A9061503570
SUPPORT
25
A9061503870
SUPPORT ADDITIONAL, USED WITH AIR CONDITIONER
40
N007346016001
CLAMPING SLEEVE
40
A6019920625
SLEEVEFRIGOBLOCK
60
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
60
N910105010003
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
70
N910105012028
SCREW SUPPORT TO CYLINDER CRANKCASE M 12X65, UP TO ENGINE 739270
70
N910105010028
HEXAGON HEAD BOLT ALTERNATOR TO SUPPORT M10X130
90
N910112010001
NUT , Replaced By: N913023010002
110
A9061841140
BRACKET
120
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
130
N910105012025
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
135
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
