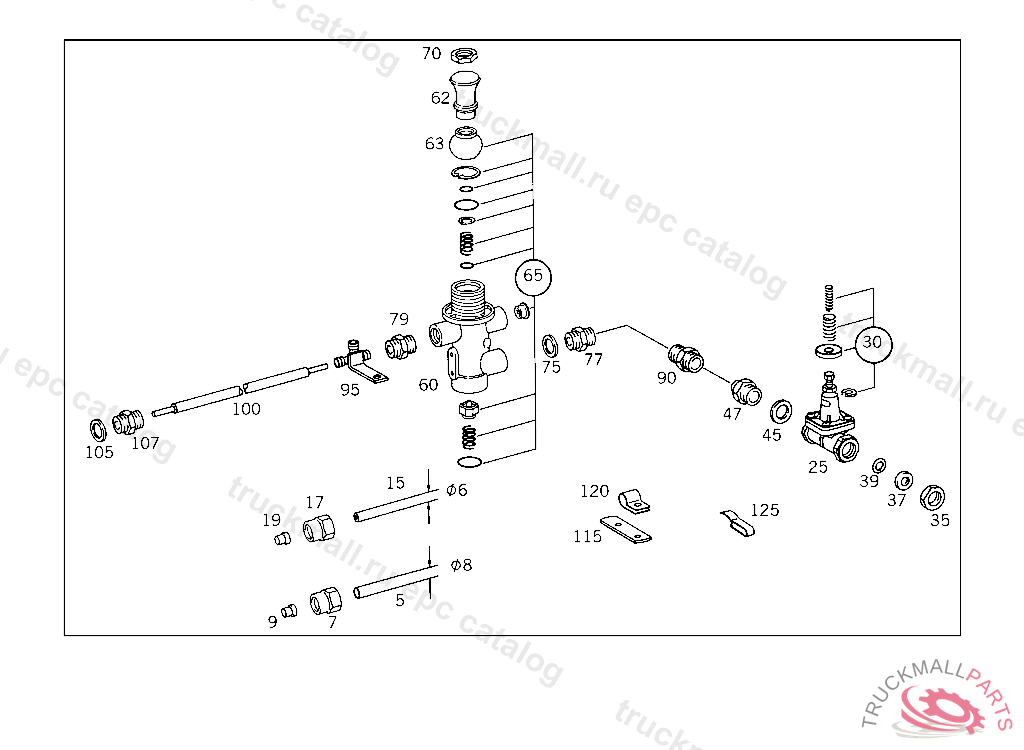

Поз.
Артикул
Описание
5
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
7
UNION NUT LINE CONNECTION
9
GLAND LINE CONNECTION
15
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
15
LINE , Replaced By: A0004296201
17
UNION NUT
19
GLAND , Replaced By: A0019901667
19
SEAL CONE
25
VALVE OVERFLOW VALVE
25
VALVE (OVERFLOW VALVE),REAR CARRIAGE SECONDARY CONSUMING UNITS "WABCO"
25
VALVE OVERFLOW VALVE
25
VALVE (OVERFLOW VALVE)
30
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
35
NUT CHECK VALVE TO AIR RESERVOIR
37
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
39
O-RING CHECK VALVE TO AIR RESERVOIR
45
SEAL RING LINE CONNECTION
47
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
60
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH, OPTIONAL WITH 000 434 08 01
60
VALVE"WESTINGHOUSE"
60
VALVE , Replaced By: A0004342401
62
HANDLETO 000 434 24 01
63
CUP 3/2-WAY VALVE WABCO
65
REPAIR KIT 3/2-WAY VALVE WABCO
70
NUT SUCTION LINE TO OIL PUMP
75
SEAL RING LINE CONNECTION
77
SCREW-IN FITTING LINE CONNECTION
77
FITTING LINE CONNECTION, Replaced By: N000000006446
79
FITTING , Replaced By: A0029906071
79
TS DOUBLE FITTING SOLENOID VALVE
90
FITTING , Replaced By: A0029905971
90
FITTING (PARTS KIT),LINE RUPTURE
95
BRACKET AT CROSS MEMBER
100
HOSE
105
SEAL RING LINE CONNECTION
107
FITTING , Replaced By: A0039979072
107
FITTING , Replaced By: A0029906071
107
TS DOUBLE FITTING SOLENOID VALVE
115
BRACKET
120
CLAMP LINE MOUNTING
125
CLAMP
999
DIAPHRAGM
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
DIAPHRAGMTO 001 429 48 44
999
SWITCH , Replaced By: A0005456009
999
SWITCH EXHAUST BRAKE,K 251255
999
REPAIR KIT , NOT USED
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
VALVE , NOT USED
999
FITTING , Replaced By: A0019972572
999
SPRINGTO 000 434 21 01
999
FITTING , Replaced By: A0039979072
999
VALVE
999
REPAIR KITTO 001 431 79 05, FROM CHASSIS 4 375194-4 428563
999
REPAIR KITTO 000 434 11 01
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
GUIDE
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SPRING WASHER AT CAB FLOOR
999
SCREW , Replaced By: N304017008021
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N000000001146
999
SCREW PIPE CLAMP
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
