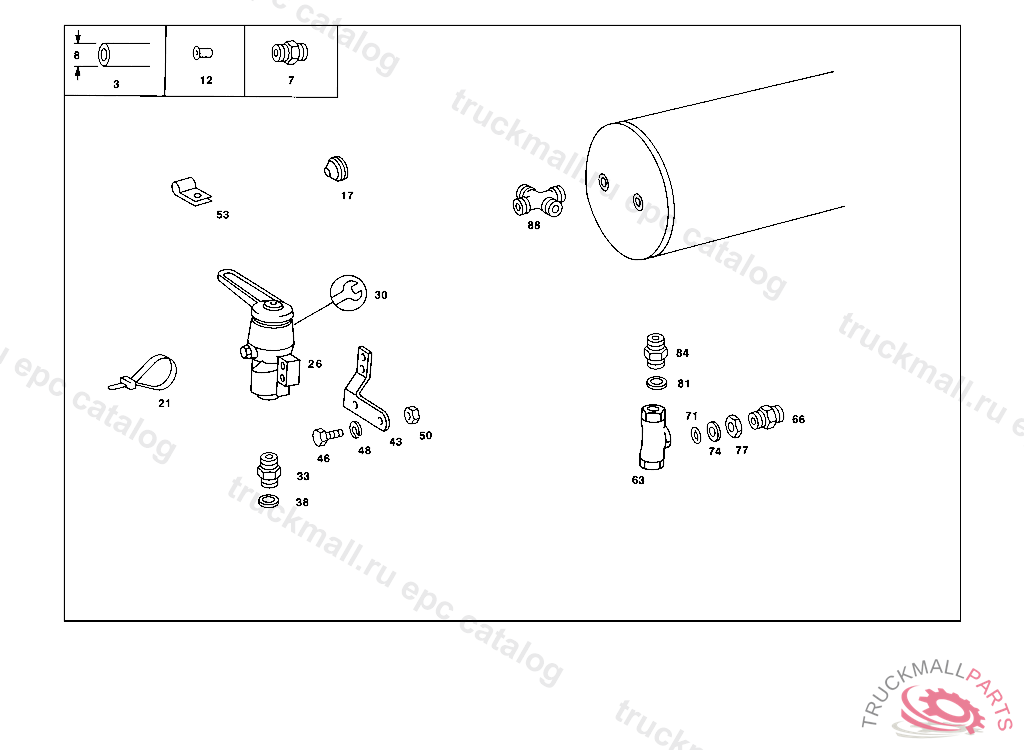

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
7
FITTING , Replaced By: N915062006000
7
FITTING
12
SLEEVE , Replaced By: N915062006000
12
SLEEVE LINE CONNECTION
17
GROMMET CAB ROOF
21
LOOM TIE LINE MOUNTING
26
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3454307481
30
REPAIR KIT
33
SEAL RING LINE CONNECTION
38
FITTING , Replaced By: A0019972572
38
FITTING LINE CONNECTION, Replaced By: N000000006446
38
FITTING LINE CONNECTION
43
BRACKET HAND BRAKE VALVE
46
SCREW , Replaced By: N304017008016
46
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
48
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
NUT , Replaced By: N913004008001
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
CLAMP , Replaced By: A6739950001
53
CLAMP DELIVERY AND SUCTION LINES TO STEERING
63
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
66
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
71
O-RING CHECK VALVE TO AIR RESERVOIR
74
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
74
THRUST RING CHECK VALVE TO AIR RESERVOIR
77
NUT CHECK VALVE TO AIR RESERVOIR
81
SEAL RING LINE CONNECTION
84
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
88
CROSS FITTING INSIDE AIR RESERVOIR
999
GASKETTO 003 429 22 44
999
VALVE , Replaced By: A0004291182
999
VALVE BODYTO 002 429 95 44
999
CROSS FITTING OUTSIDE AIR RESERVOIR
999
GROMMET , Replaced By: A0009972081
999
LOOM TIE LINE MOUNTING 280 MM
999
BALLTO 003 429 22 44
999
VALVE TWO-WAY VOSS
999
BEARING ,5 0579045 210003, Replaced By: A3434600237, +001A3524623101, +002A0119815110
999
BEARING PLEASE REFER TO ADDITIONAL PARTS,5 057903
999
CLAMP LINE MOUNTING
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREWM 8X40
999
NUT BALL PIVOT TO LEVER
999
FITTING , Replaced By: A0009970171
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
