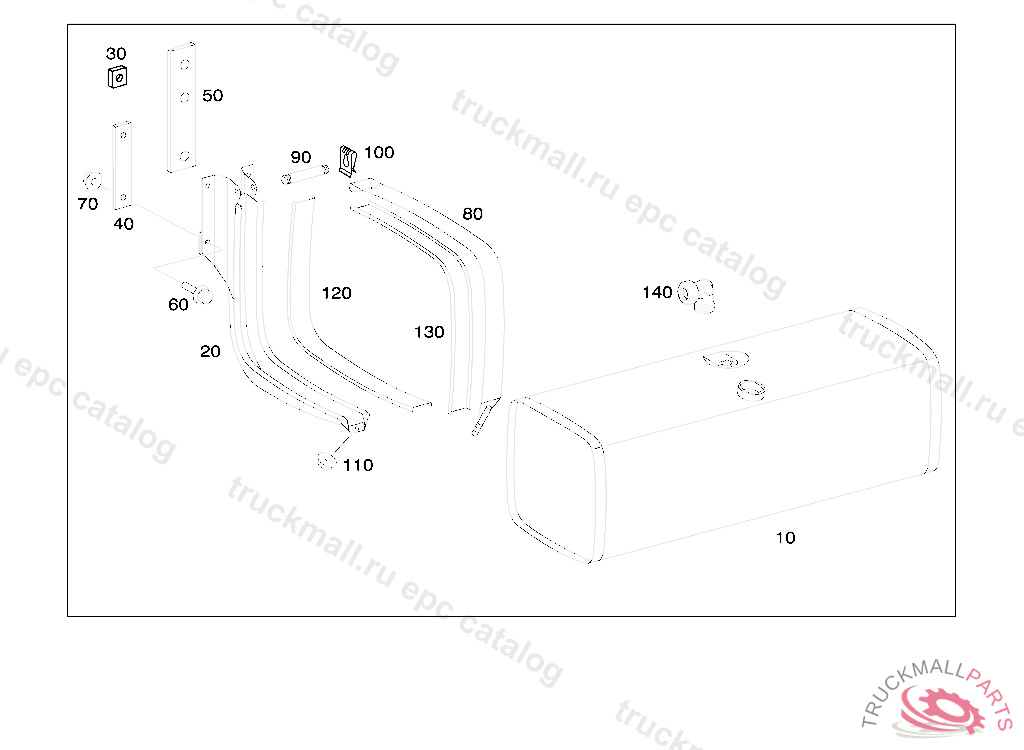

Поз.
Артикул
Описание
10
FUEL TANK TO BE MOUNTED ON THE LEFT 500L
10
FUEL TANK RIGHT 500L, Replaced By: A9314700501
20
SUPPORT FUEL TANK TO FRAME, IN CONJUNCTION WITH CODE: 8BZK
20
SUPPORT FUEL TANK TO FRAME
30
SHIM MOUNTING PARTS 7MM
40
SHIM MOUNTING PARTS 15MM
40
SHIM MOUNTING PARTS 10 MM
50
SHIM MOUNTING PARTS
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
60
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
60
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
70
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
STRAP FUEL TANK TO CONSOLE
90
PIN STRAP TO SUPPORT
100
CLIP RESERVOIR TO CAB FRONT PANEL
110
NUT STRAP TO SUPPORT M12X1.5
120
PAD BRAKE ANCHOR 111 MM
120
PAD BRAKE ANCHOR 53 MM
130
PAD STRAP 61 MM
140
FITTING FROM PUMP TO CYLINDER
140
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
