Mercedes N000000001571 - БОЛТ М10

2631 - 2655 930.143

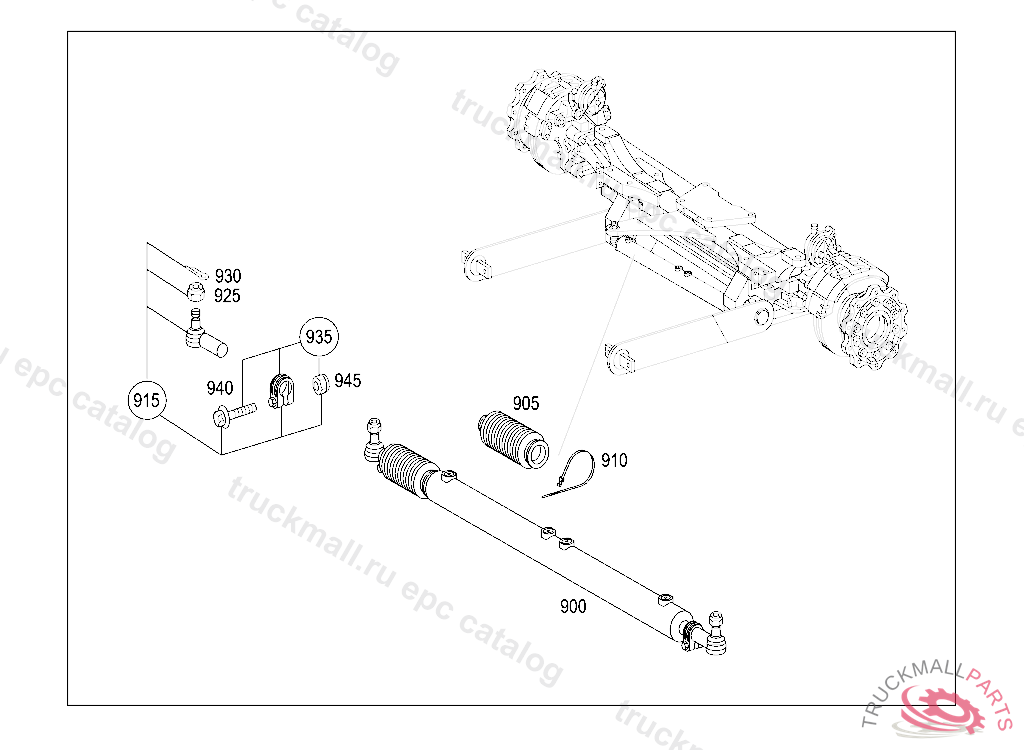

31 FRAME - 001 LEADING AXLE, STEERED, MAKE PAUL IL.13

Поз.
Артикул
Описание
900
A6294660192
CYLINDER (POWER CYLINDER) TRAILING AXLE
905
A0004632396
BOOT POWER CYLINDER
910
A0059971090
LOOM TIE BOOT 295X3.6MM
915
A0014607048
DRAG LINK END SHORT 80 MM
915
A0014606948
DRAG LINK END LONG 90MM
925
N000935024000
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
930
N000094005045
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
935
A0004660677
CLAMP DRAG LINK END
940
N000000001571
HEXALOBULAR BOLT CLAMP MOUNTING M10X55
945
N304032010003
NUT BATTERY CABLE
999
A0003382545
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
999
A0003382645
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER, TO 002 460 14 05, 15 05,K 226468
999
A0014607905
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I TRW
999
A6623300199
CONVERSION KIT
999
N308676012018
SCREW STRUT TO FRAME M 12X62
999
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
