Mercedes N007603014405 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1823 L - 1833 L 950.544

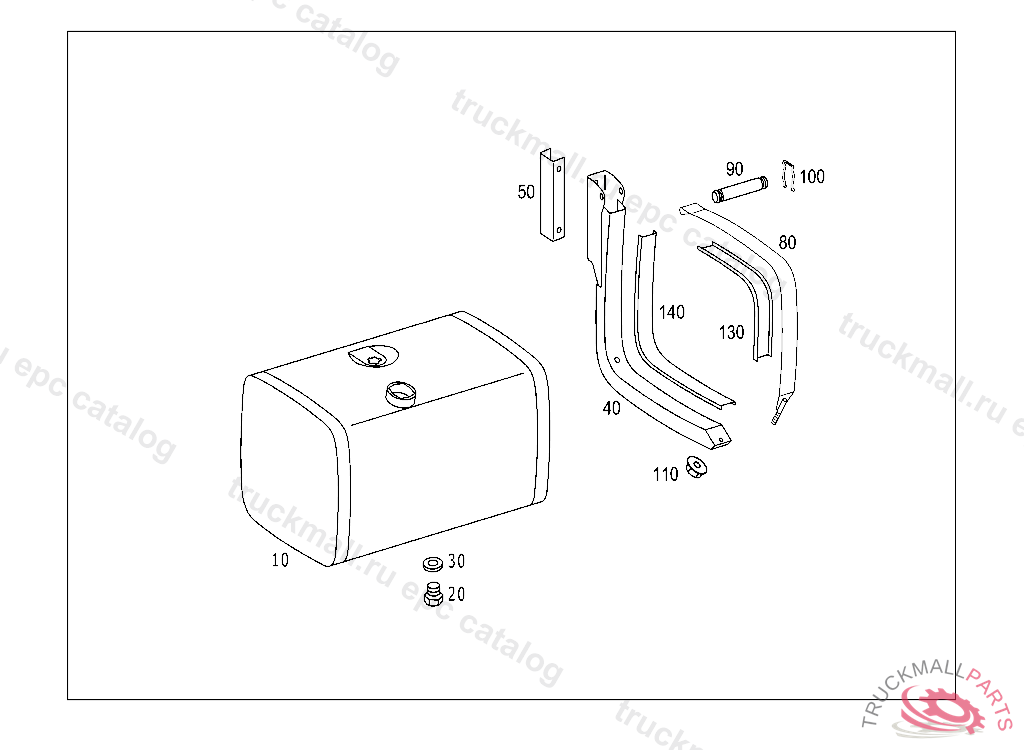

47 FUEL SYSTEM - 001 FUEL TANK

Поз.
Артикул
Описание
10
A9414701101
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY
10
A9414700201
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9414701101
20
N007604014110
SCREW PLUG FUEL TANK
30
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
40
A9414702142
SUPPORT FUEL TANK TO FRAME
40
A9304703242
SUPPORT REAR TANK
50
A6624753284
SHIM MOUNTING PARTS
80
A9414700140
STRAP FUEL TANK TO CONSOLE
90
A9444750074
PIN STRAP TO SUPPORT
100
A0109881878
CLIP STRAP TO SUPPORT
110
N000000000189
NUT STRAP TO SUPPORT M12X1.5
130
A9414751620
PAD STRAP 61 MM
140
A9304750920
PAD BRAKE ANCHOR 35.9MM
140
A9414751720
PAD BRAKE ANCHOR 53 MM
